CHF120 - Eaton - 20 Amp Circuit Breaker
Plug-In - 20 Amp - 1 Pole - 240 Volt
Eaton Cutler-Hammer
SKU: CHF120
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

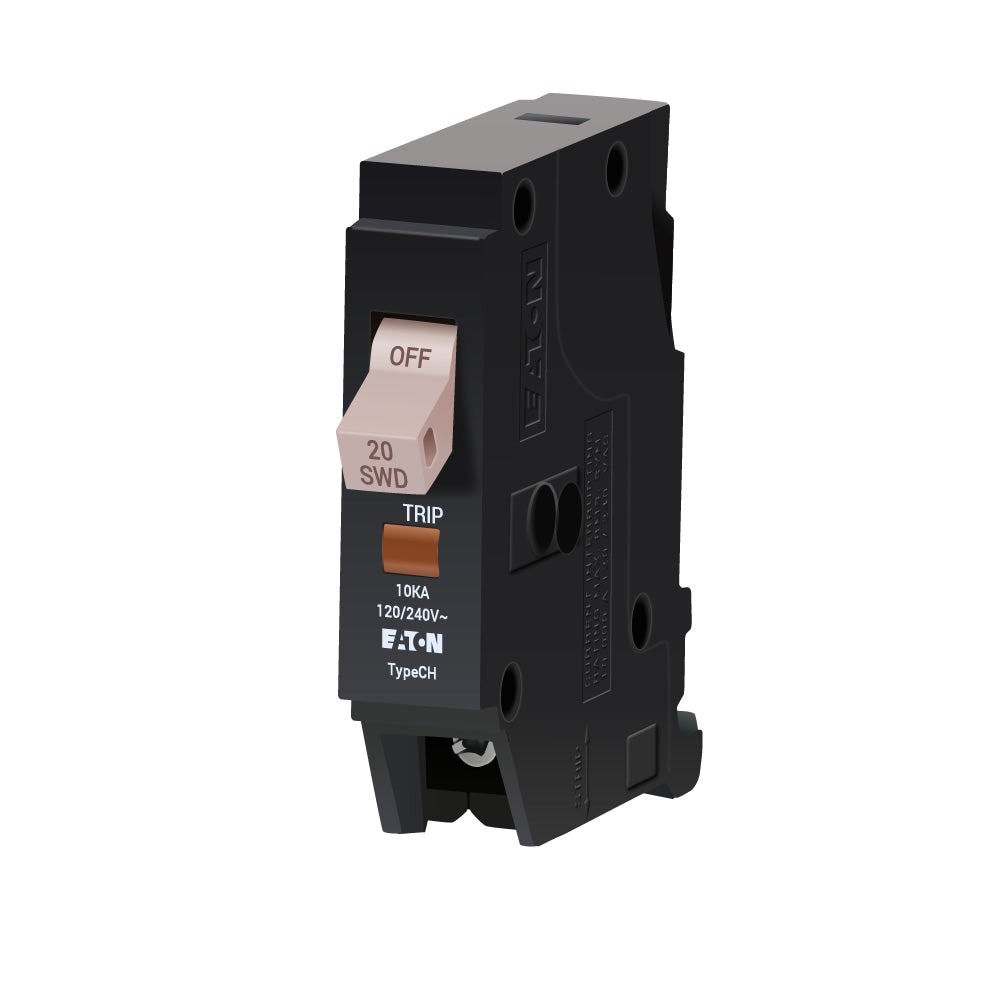

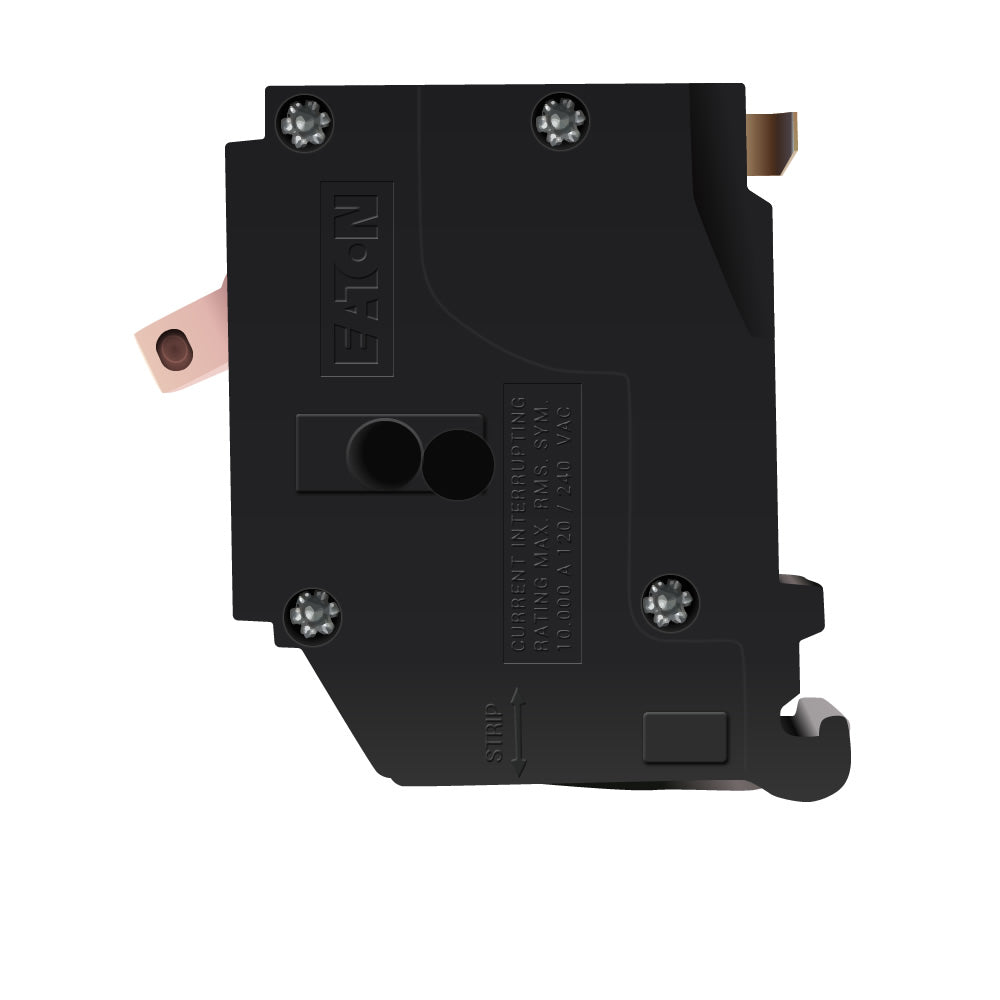

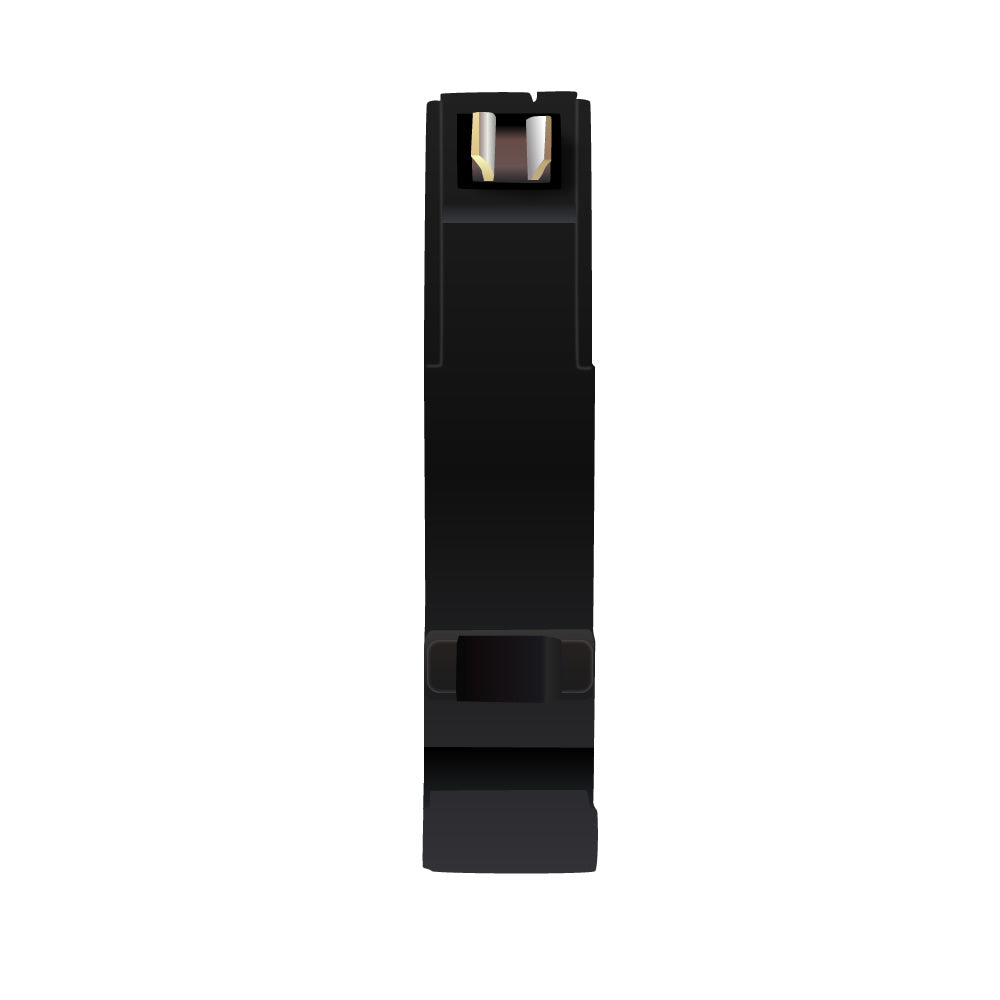

CHF120 - Eaton Cutler-Hammer Molded Case Circuit Breaker
This product is a molded case circuit breaker 1-Pole Plug-on circuit breaker has current rating of 20 Amps and voltage rating of 120/240 VAC. Circuit breaker has AIC rating of 10 kilo-Amps. It accommodates wires of size 14 - 8/14 - 10 AWG. It has unique trip to off and one step reset feature with a trip flag to indicate the breaker status.
Specifications:
- Product Name: Type CHF 3/4-inch Standard Circuit Breaker
- Product Length: 3 IN
- Product Height: 3 IN
- Product Width: .75 IN
- Product Weight: .28 LB
- Certifications: UL 489
- Catalog Notes: Switching Duty Rated, HACR Rated, Single-Pole Requires One 3/4-Inch Space, With Trip Indication
- Interrupt Rating: 10 kAIC
- Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
- Used With: Type CH Loadcenters
- Main Circuit Breaker: CH
- Voltage Rating: 120/240V
- Amperage Rating: 20A
- Number Of Poles: Single-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3" x 0.75" x 3"
