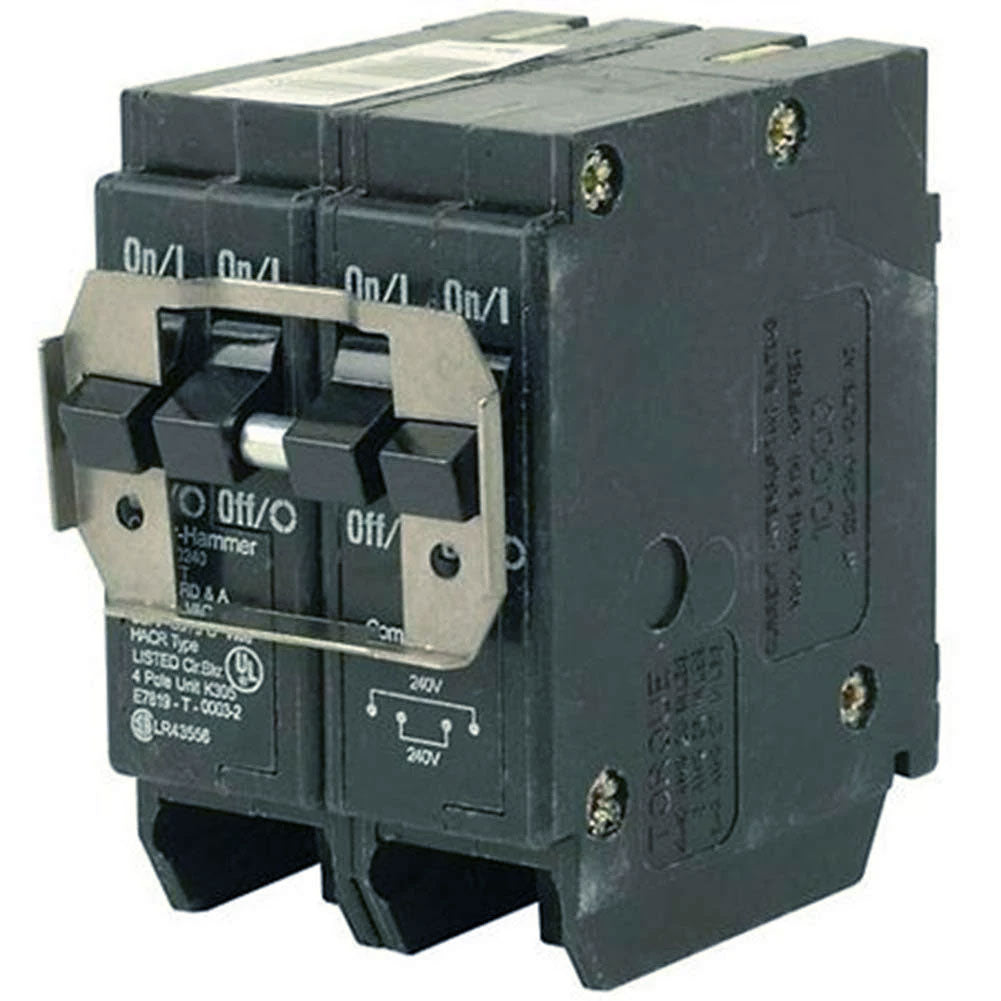

BQ220215 - Eaton - 20 Amp Quad Circuit Breaker
Feed-Thru - 20 Amp - 2 Pole - 240 Volt
Eaton Cutler-Hammer
SKU: BQ220215
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
BQ220215 - Eaton Cutler-Hammer Plug-On Molded Case Circuit Breaker
Specifications:
- Product Name: Eaton Type BQ 1-inch CTL Plug-on Breaker
- UPC: 786676004459
- Product Weight: .9 LB
- Compliances: Federal Specifications Classification W-C375
- Certifications: UL 489
- Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated
- Special Features: Includes Rejection Tab feature
- Interrupt Rating: 10 kAIC
- Type: Type BQ Quadplex Independent Trip
- Wire Size: #14-4 AWG Cu/Al
- Used With: Type BR Loadcenters
- Main Circuit Breaker: BQ
- Quantity: Q28
- Mounting Method: Plug-on
- Voltage Rating: 120/240V
- Amperage Rating: (1) Two-Pole 20A, (1) Two-Pole 15A
- Trip Type: Independent
- Number Of Poles: Four-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3" x 2" x 3"
