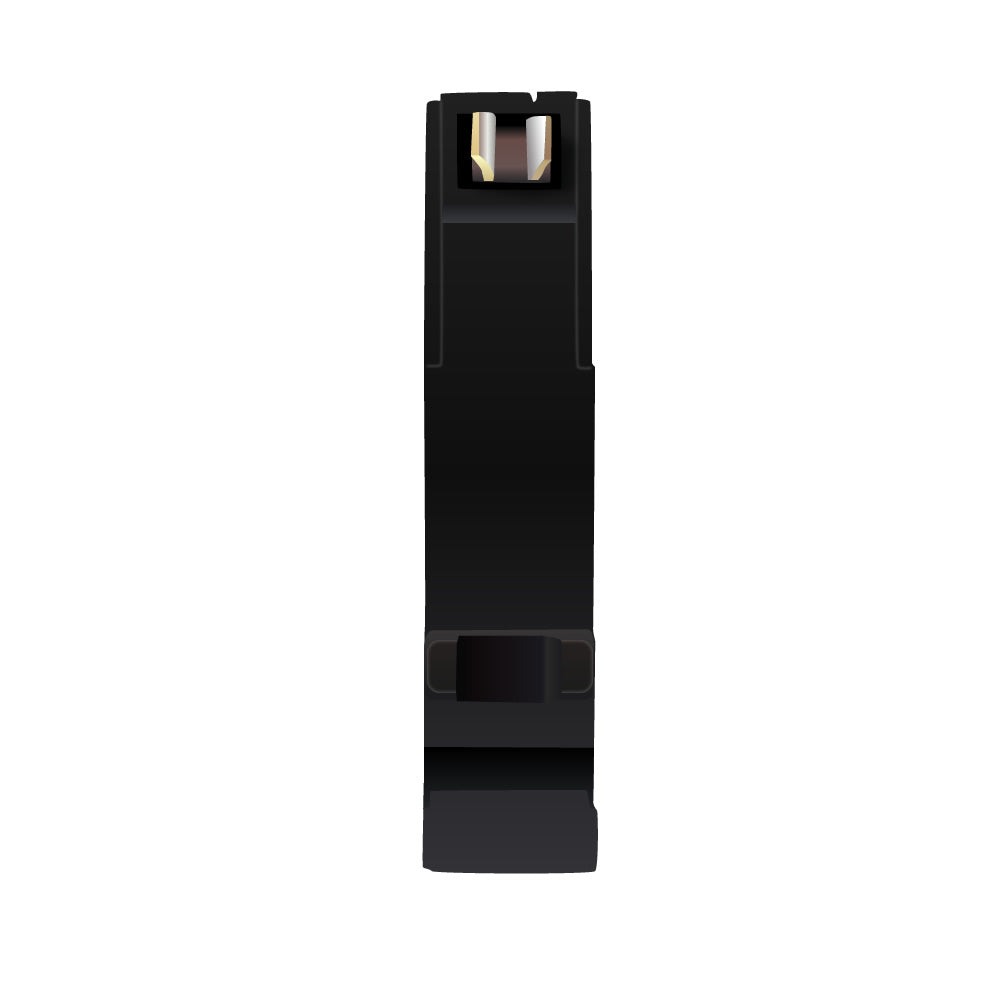

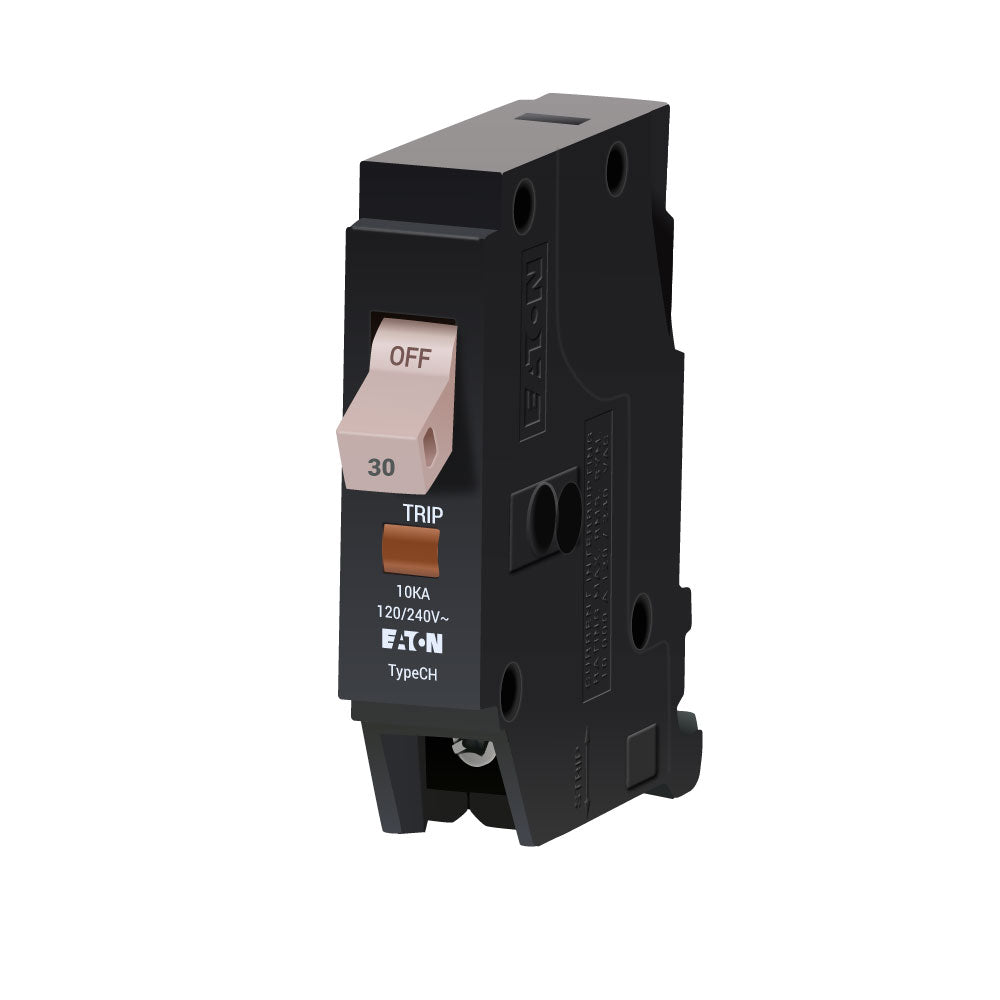

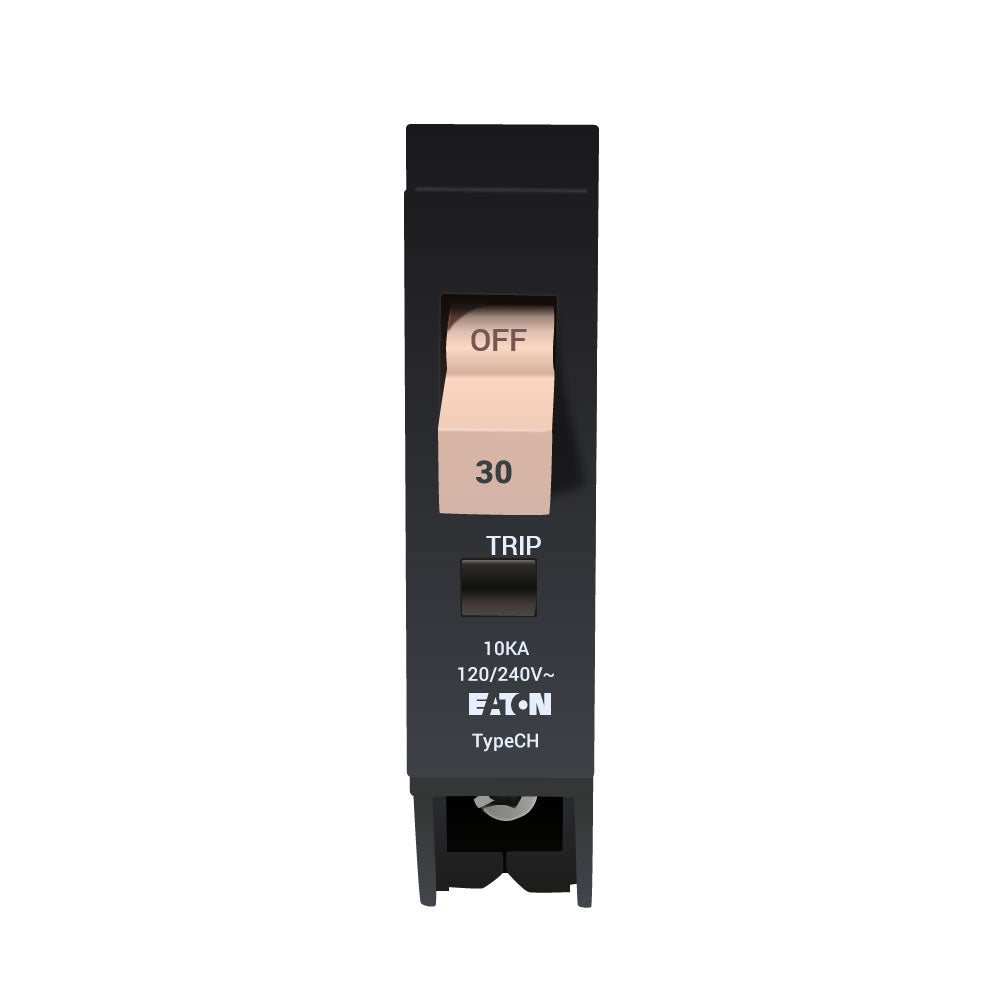

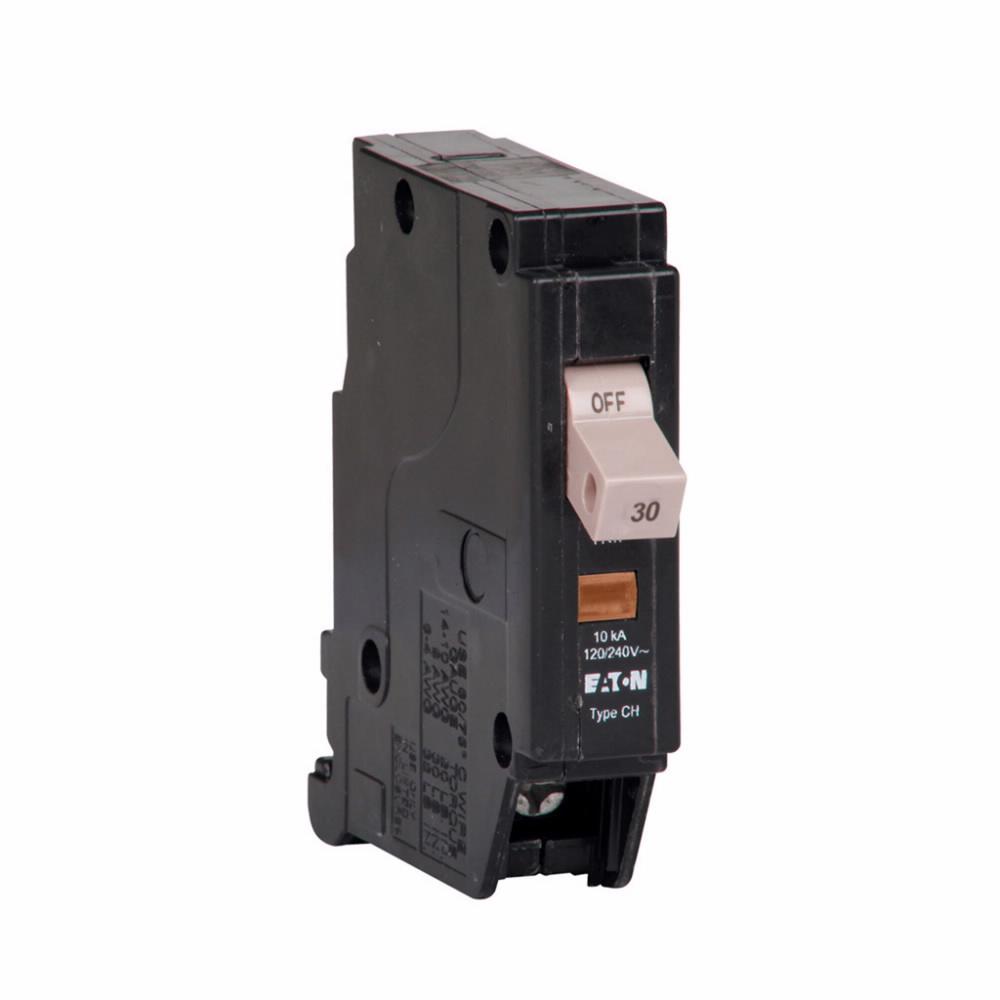

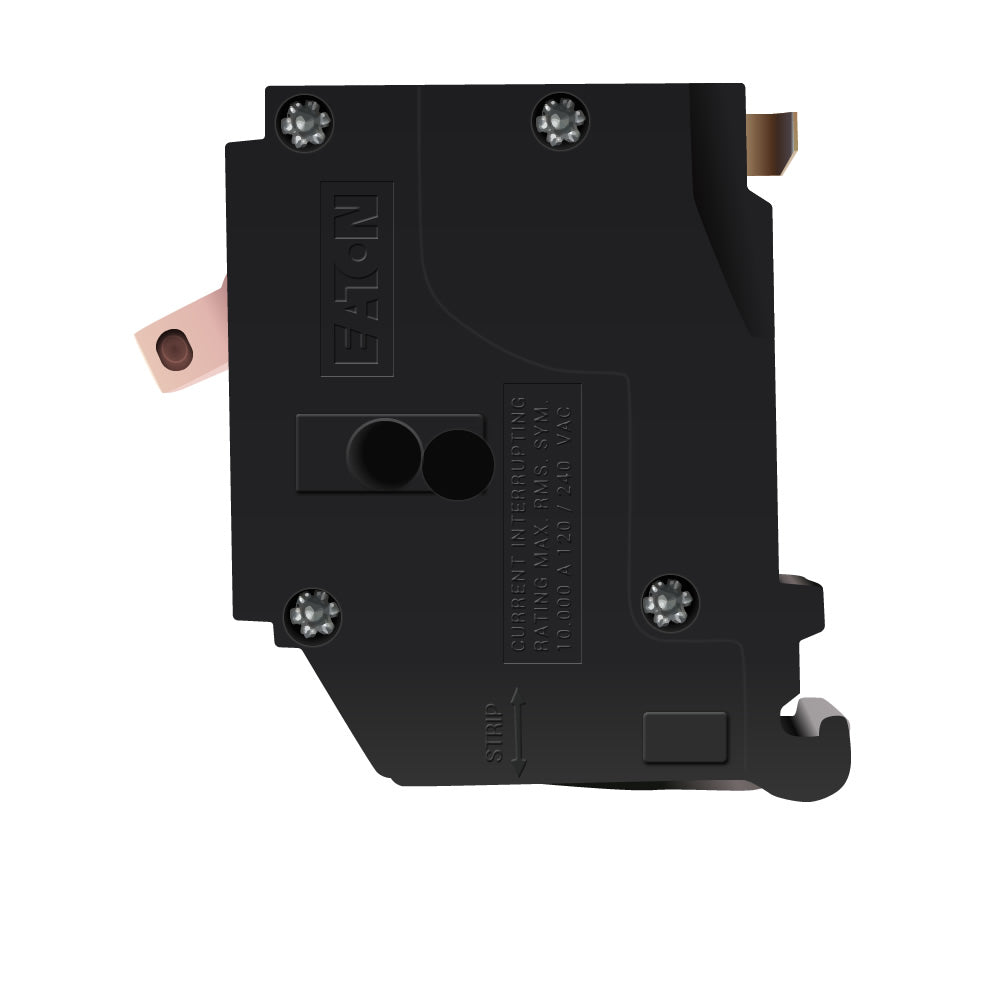

CHF130 - Eaton Cutler-Hammer Plug-In Circuit Breaker
This product is a molded case circuit breaker 1-Pole Plug-on circuit breaker has current rating of 30 Amps and voltage rating of 120/240 VAC. Circuit breaker has AIC rating of 10 kilo-Amps. It accommodates wires of size 14 - 8/14 - 10 AWG. It has unique trip to off and one step reset feature with a trip flag to indicate the breaker status.
Specifications:
- Product Name: Eaton Type CHF 3/4-inch Standard Circuit Breaker
- Product Length: 3.5 IN
- Product Height: 3.5 IN
- Product Width: 1.5 IN
- Product Weight: .28 LB
- Certifications: UL 489
- Catalog Notes: HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication
- Interrupt Rating: 10 kAIC
- Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
- Used With: Type CH Loadcenters
- Main Circuit Breaker: CH
- Voltage Rating: 120/240V
- Amperage Rating: 30A
- Number Of Poles: Single-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3.5" x 1.5" x 3.5"
