CHF230 - Eaton - 30 Amp Circuit Breaker
Plug-In - 30 Amp - 2 Pole - 240 Volt
Eaton Cutler-Hammer
SKU: CHF230
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

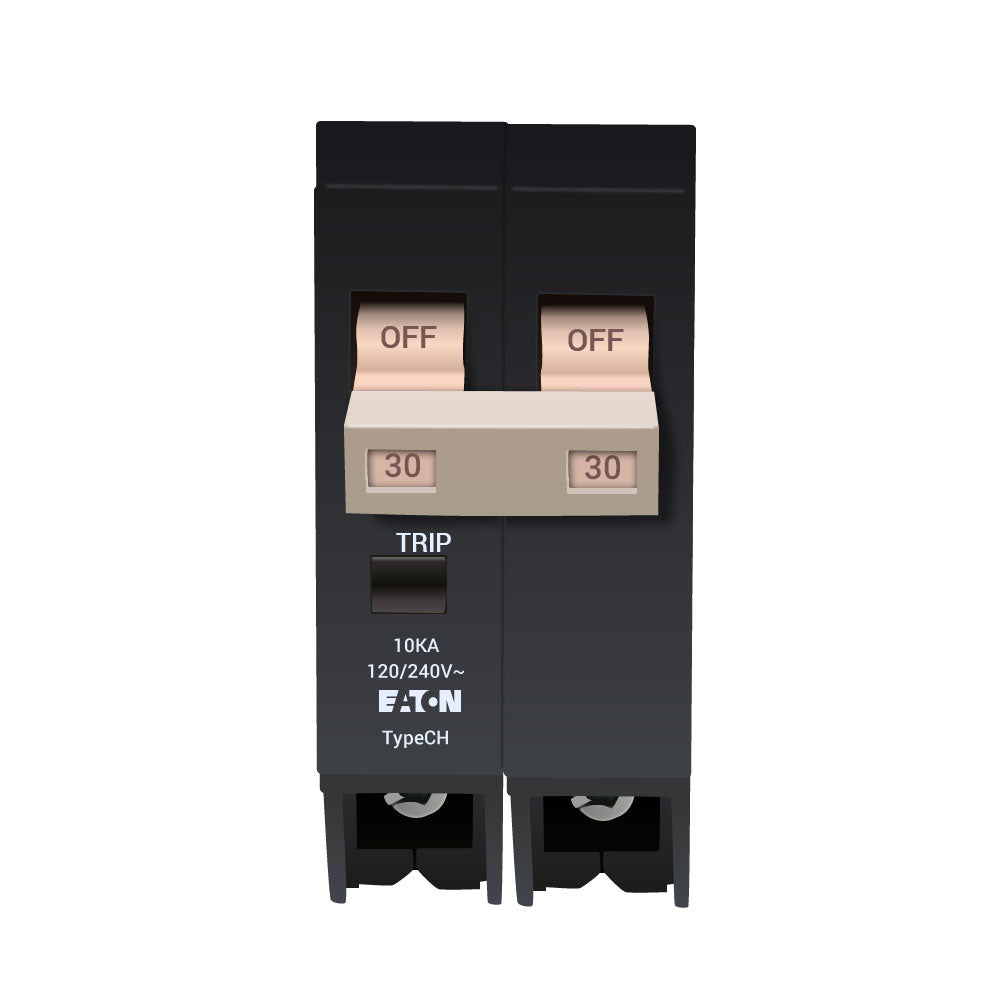

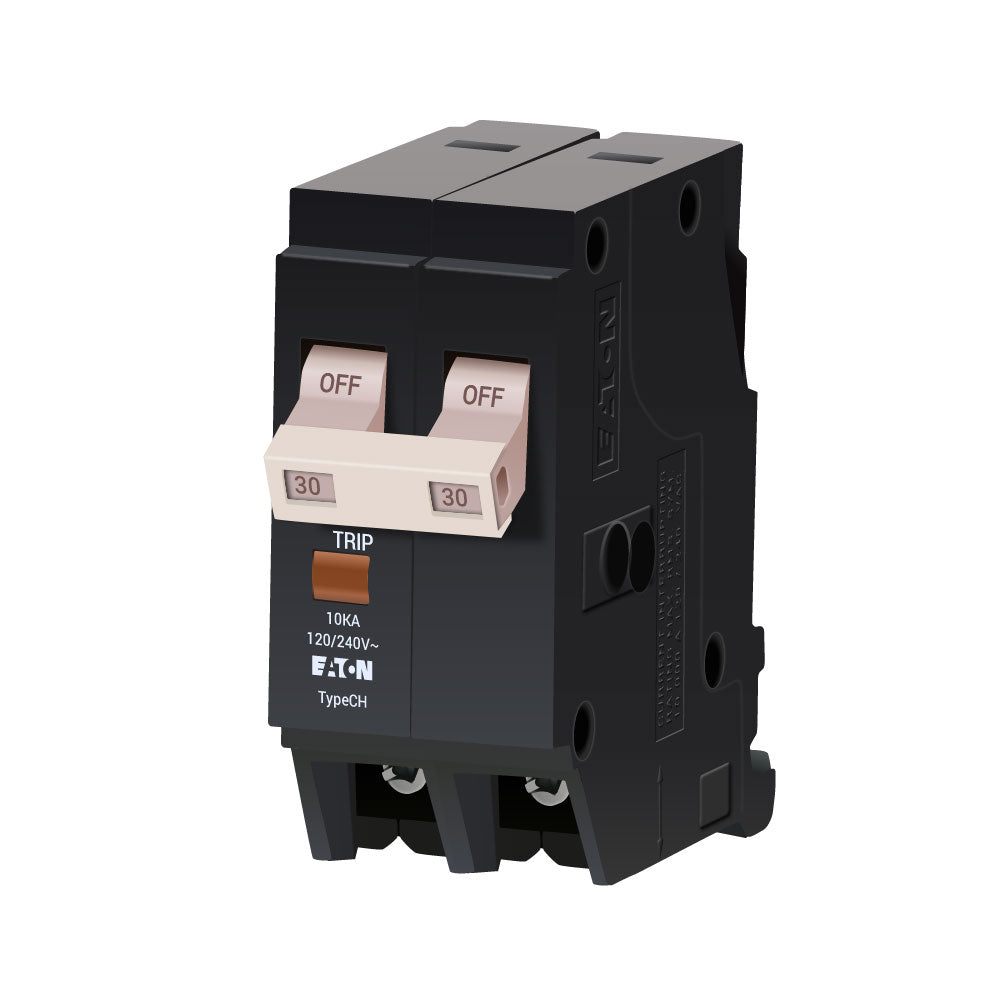

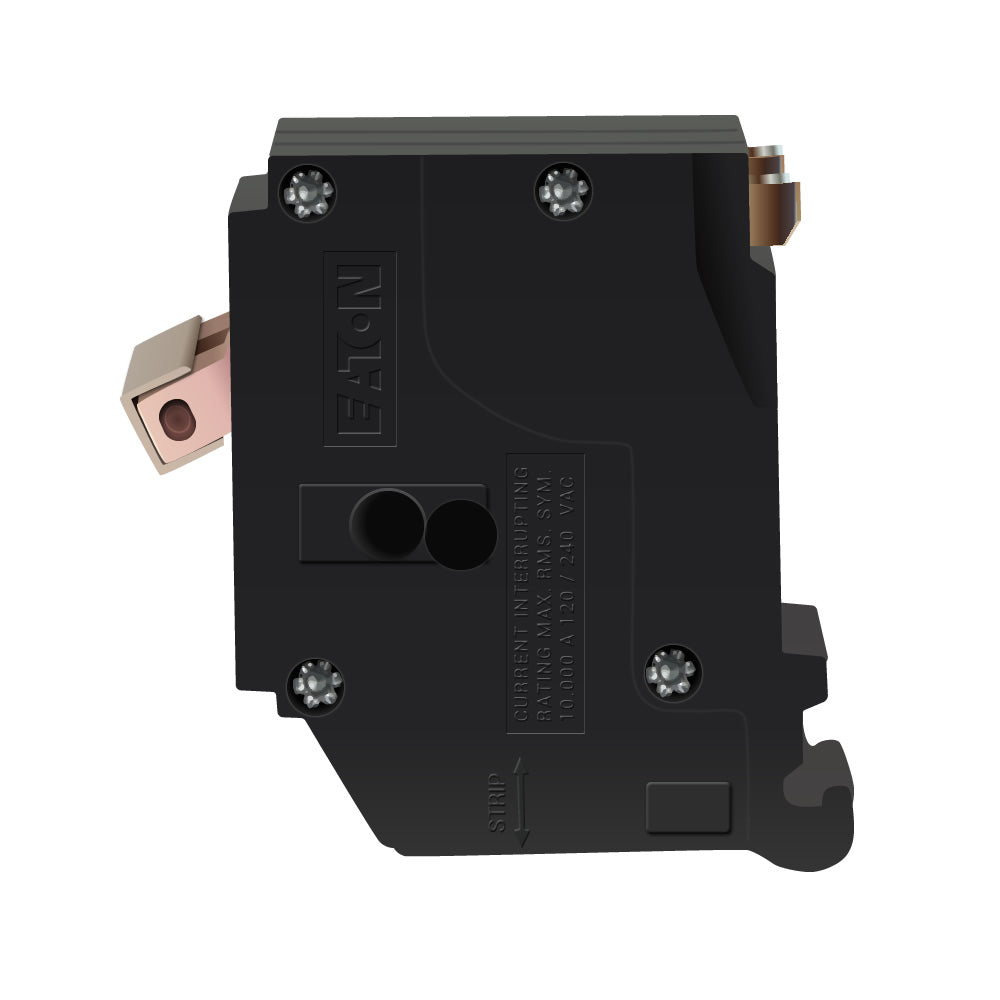

CHF230 - Eaton Cutler-Hammer Plug-In Molded Case Circuit Breaker
Cutler Hammer CHF series double pole 30 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions with mechanical trip flag.
Specifications:
- Product Name: Type CHF 3/4-inch Standard Circuit Breaker
- Product Length: 3 IN
- Product Height: 3 IN
- Product Width: .75 IN
- Product Weight: .28 LB
- Certifications: UL 489
- Catalog Notes: HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
- Interrupt Rating: 10 kAIC
- Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
- Used With: Type CH Loadcenters
- Main Circuit Breaker: CH
- Voltage Rating: 120/240V
- Amperage Rating: 30A
- Trip Type: Common
- Number Of Poles: Two-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 3" x 0.75" x 3"
