Overview
Product Specifications - DH363FGK - Eaton Disconnect and Safety Switches
-
Part Number:
DH363FGK -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@600V -
Suit Fuse:
R -
Switch Style:
Fusible -
Configuration:
Single -
Nema Rating:
1
Dimensions
-
Dimensions (HxWxD):
8.5" x 22.5" x 4.8" -
Weight:
21.7 lbs
Standards
Product Description - DH363FGK - Eaton Disconnect and Safety Switches

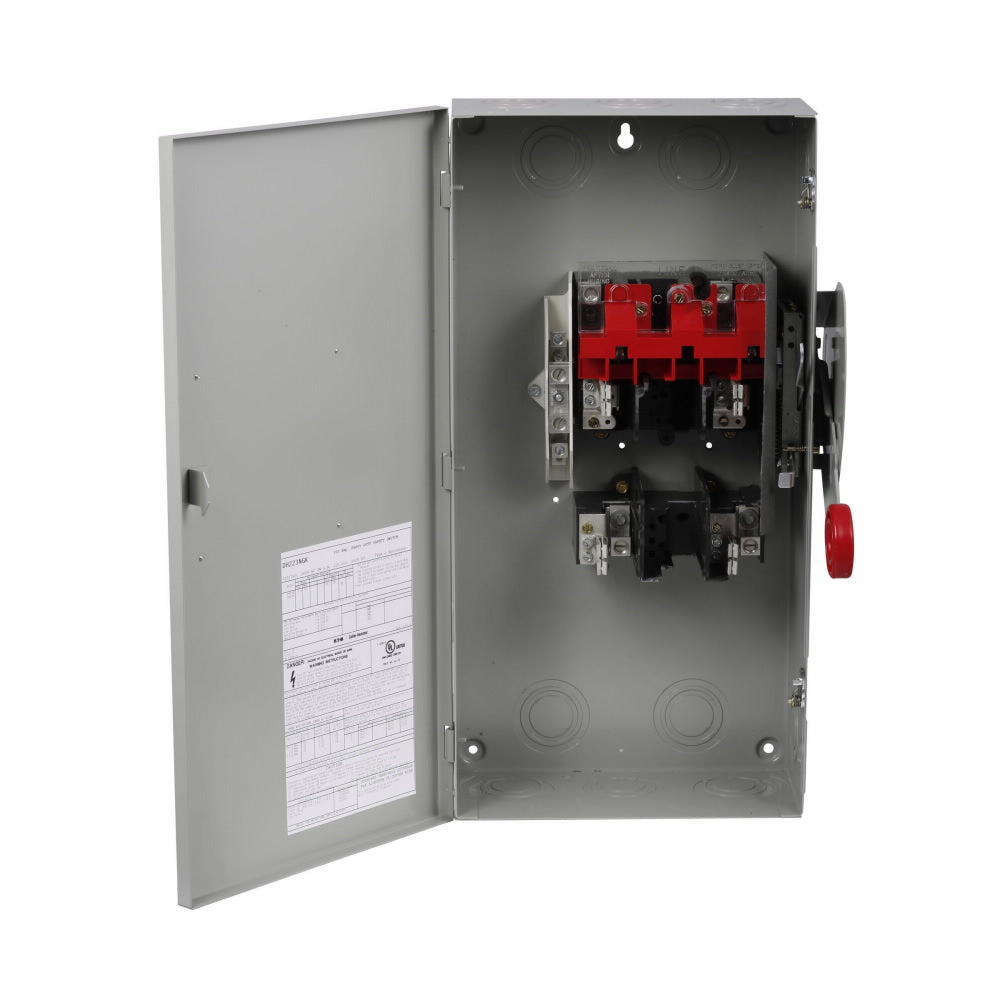

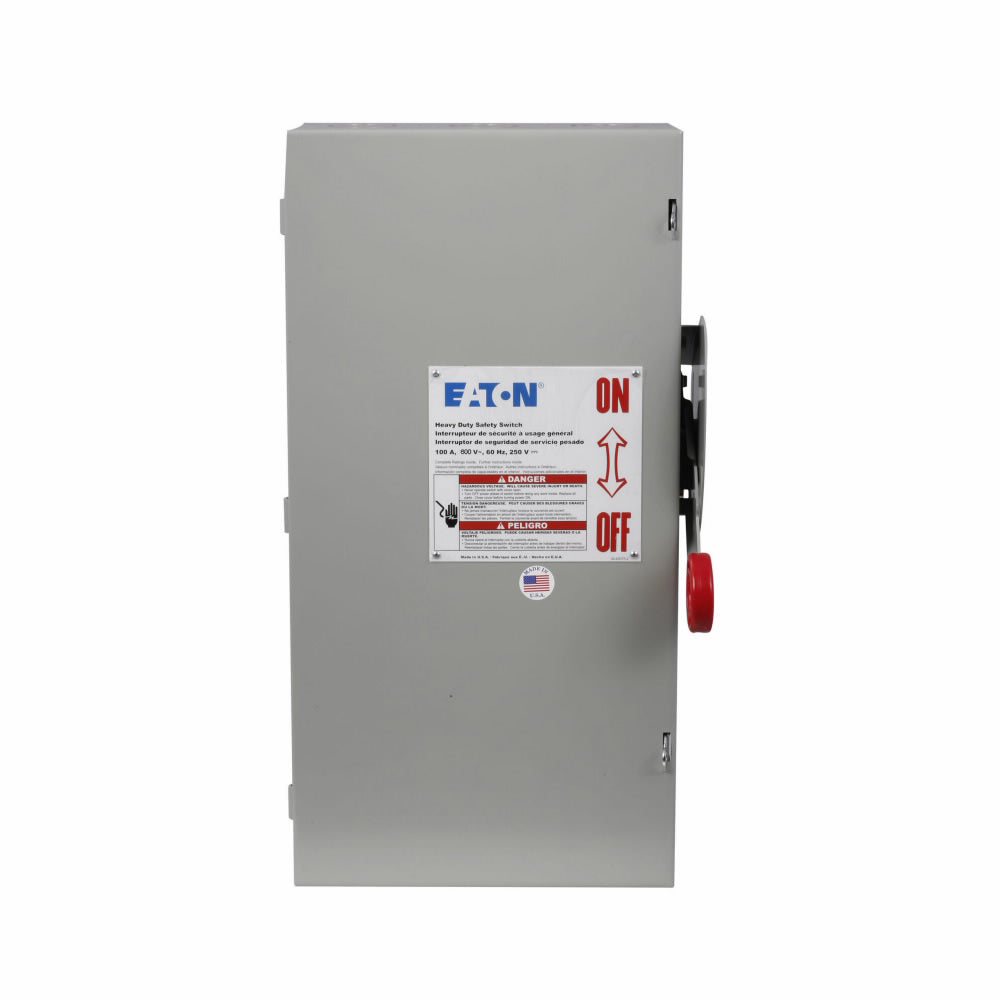

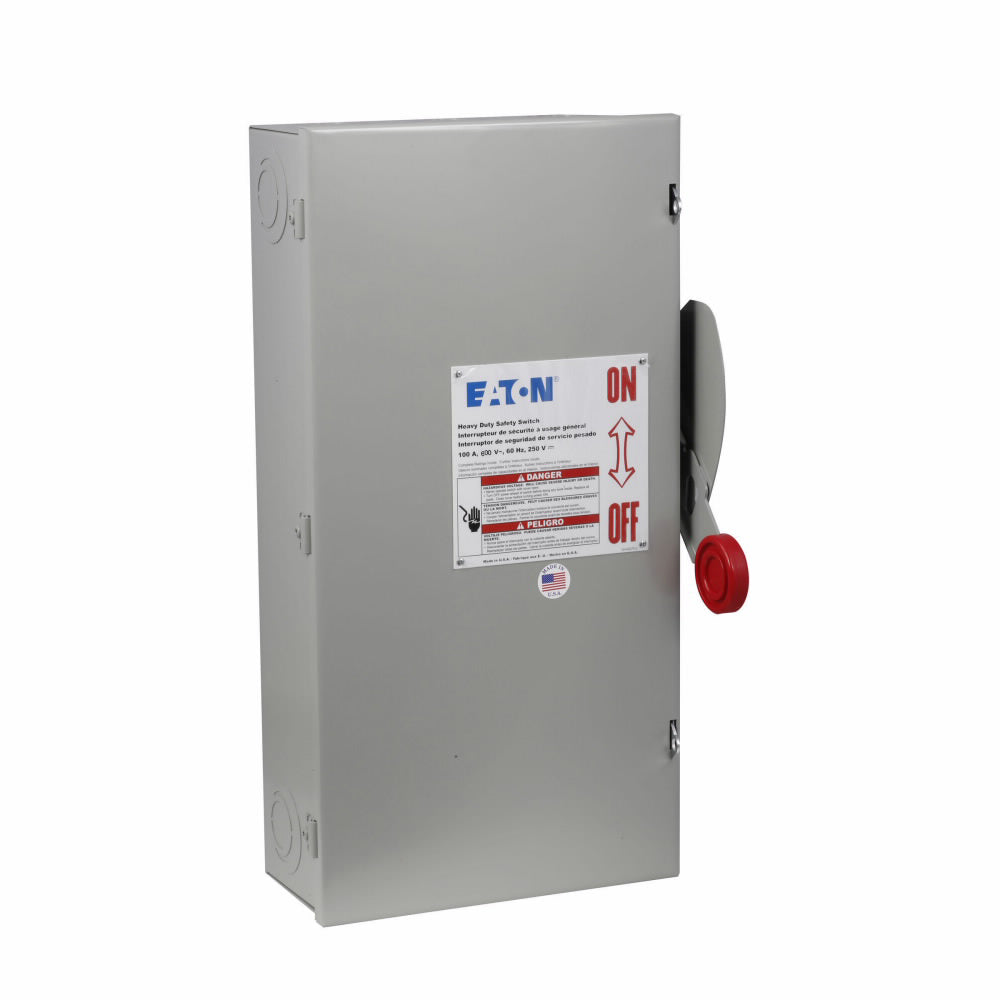

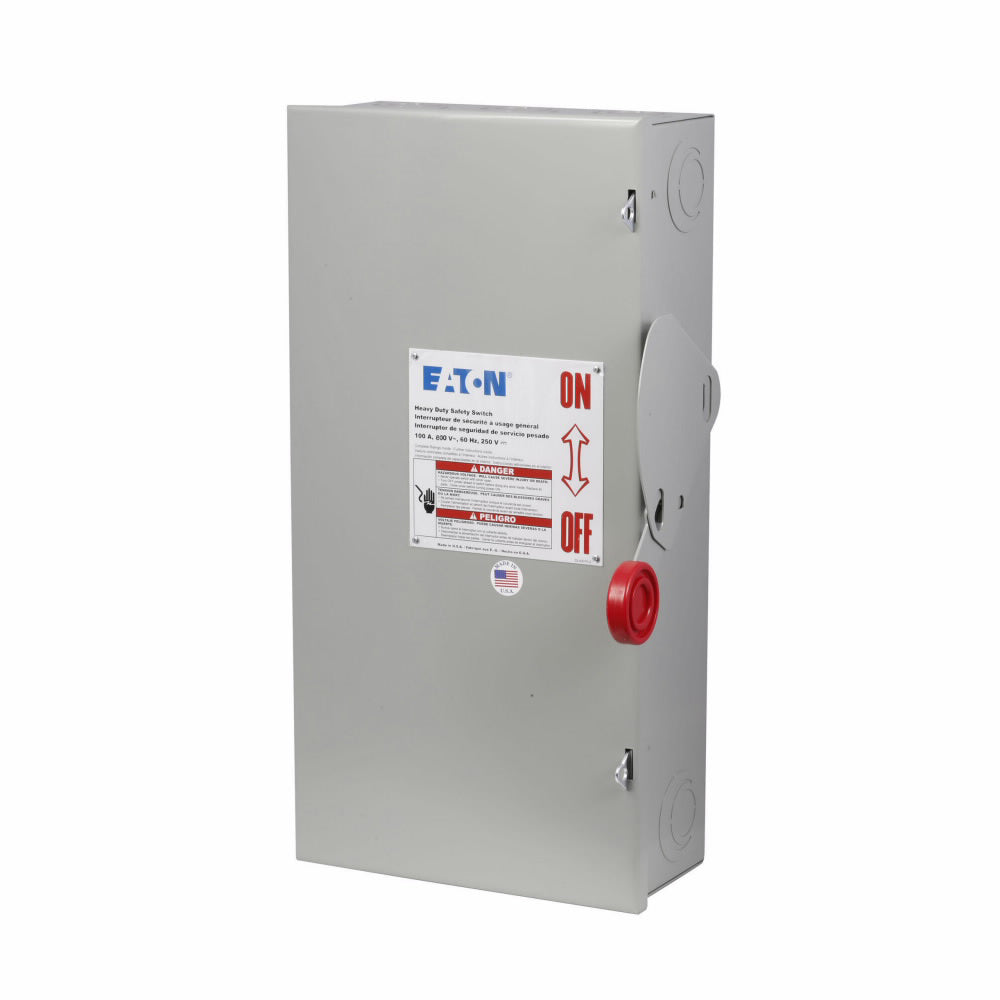

Eaton Custom single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al
