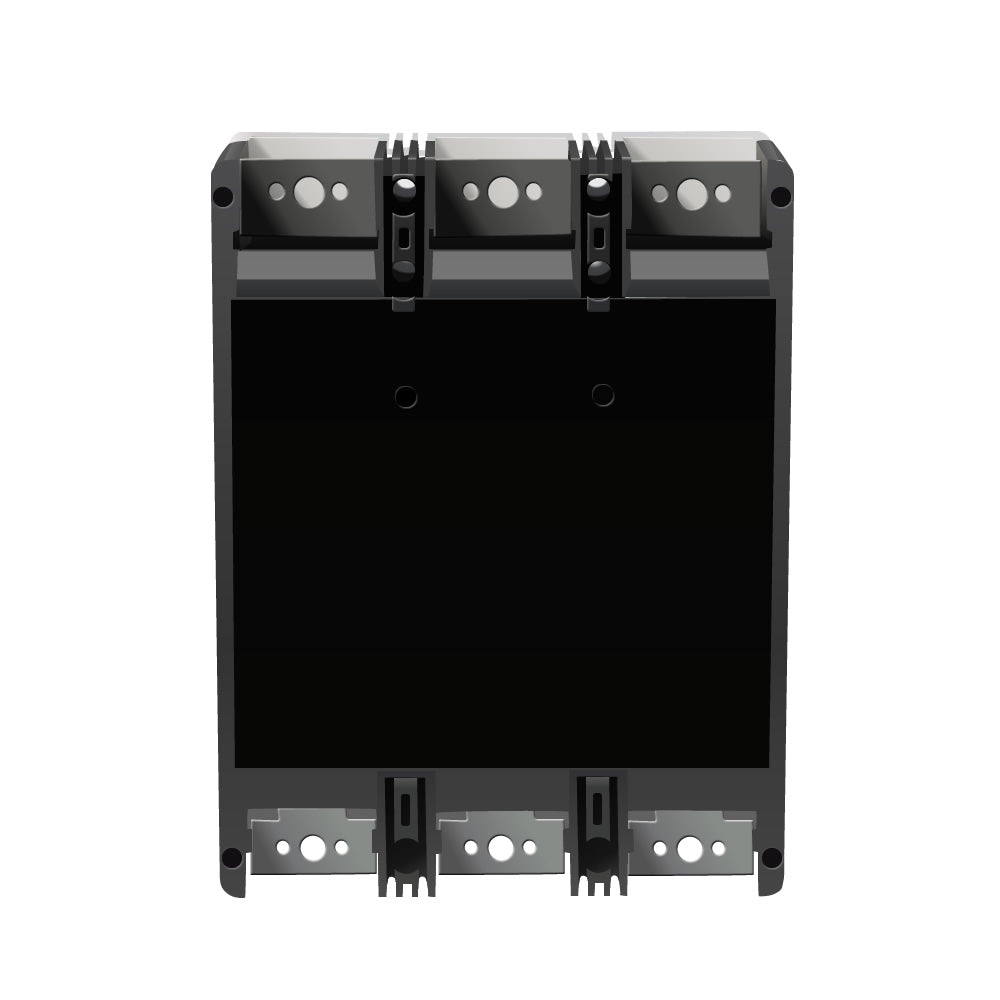

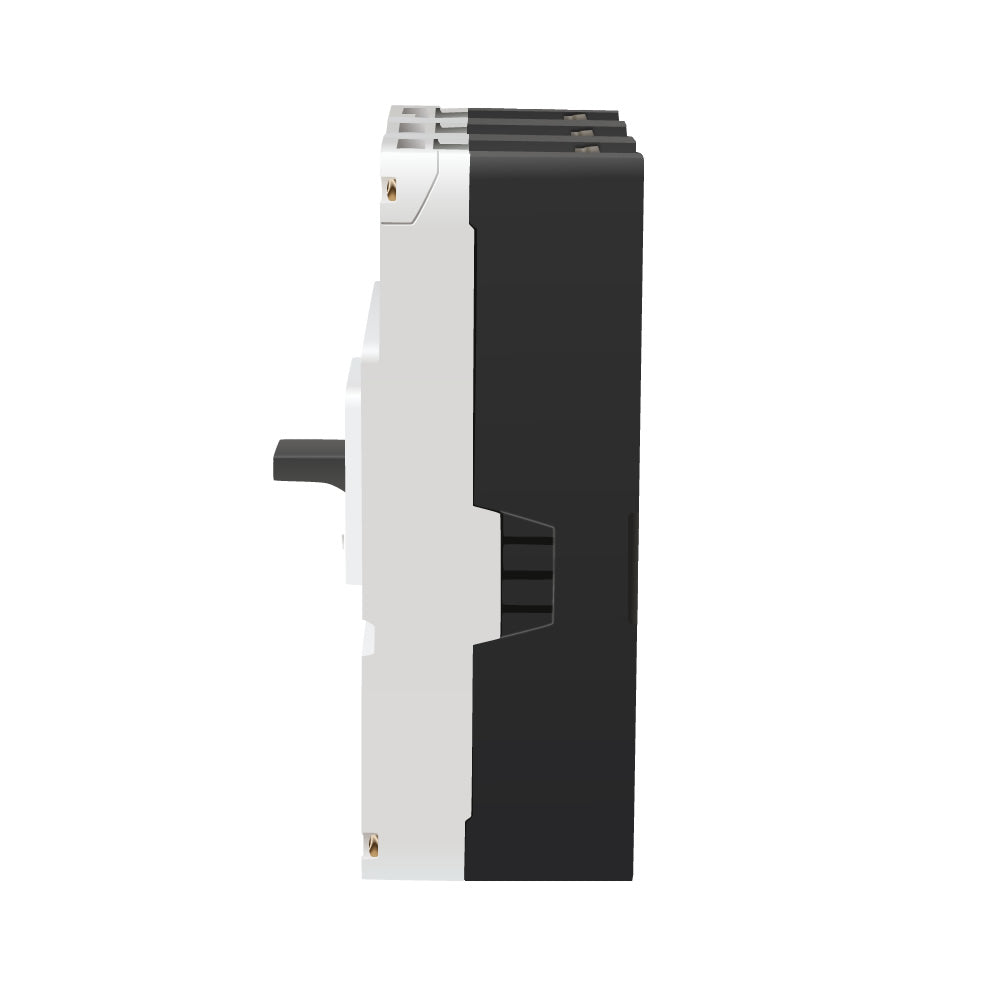

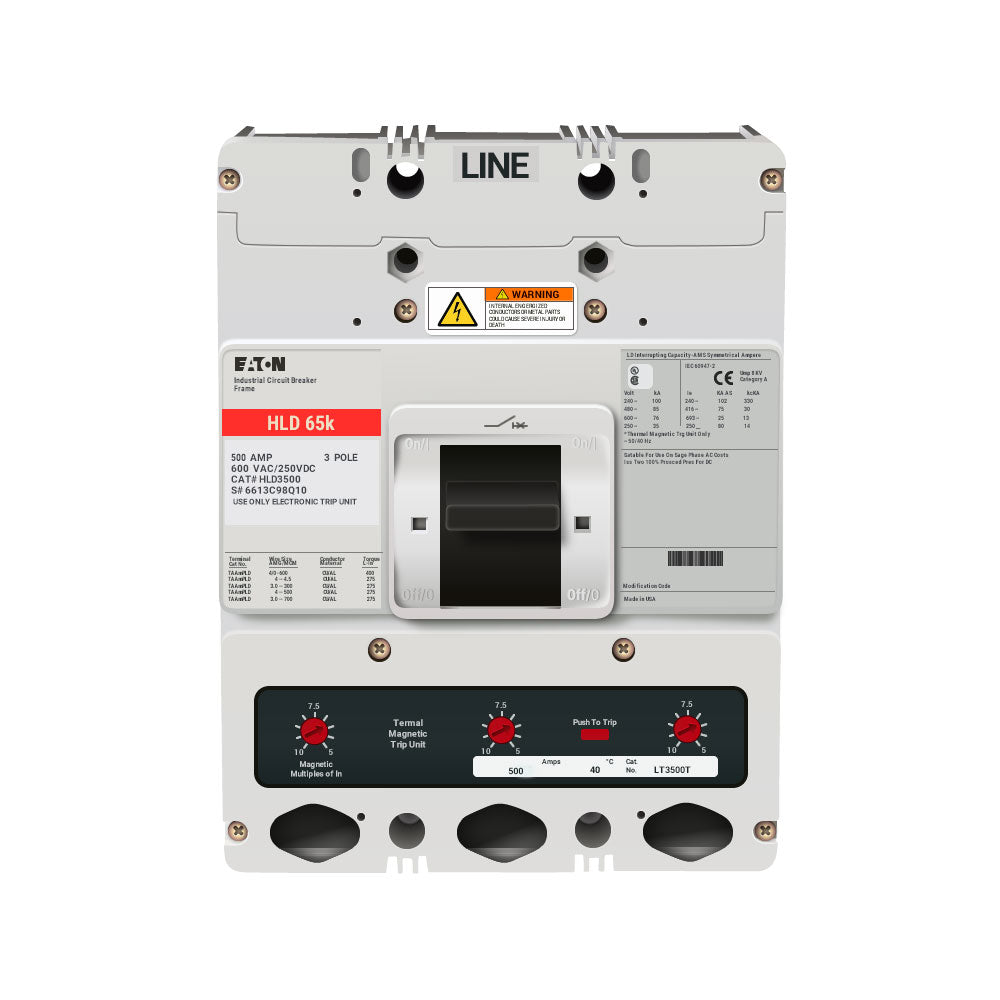

HLD3500Y - Eaton - Molded Case Circuit Breaker
Bolt-On - 500 Amp - 3 Pole - 600 Volt
Eaton Cutler-Hammer
SKU: HLD3500Y
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - HLD3500Y - Eaton Molded Case Circuit Breaker
-
Part Number:
HLD3500Y -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
500 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HLD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
L Frame
Dimensions
-
Dimensions (HxWxD):
8.25" x 8.25" x 8.25"
-
Weight:
21 lbs
Standards
Product Description - HLD3500Y - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HLD, 3P, 3PH, 500A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
