Overview
Product Specifications - TG4322 - General Electrics Disconnect
-
Part Number:
TG4322 -
Manufacturer:
-
Family:
Spec-Setter -
Pole:
3 -
Amp
60 -
Volt:
240 -
Phase:
3
-
Category:
-
Type:
TG -
AIC Ratings:
100kA@240V
Dimensions
-
Dimensions (HxWxD):
7.88 x 8.88 x 13.73 -
Weight:
10 lb
Standards
Product Description - TG4322 - General Electrics Disconnect

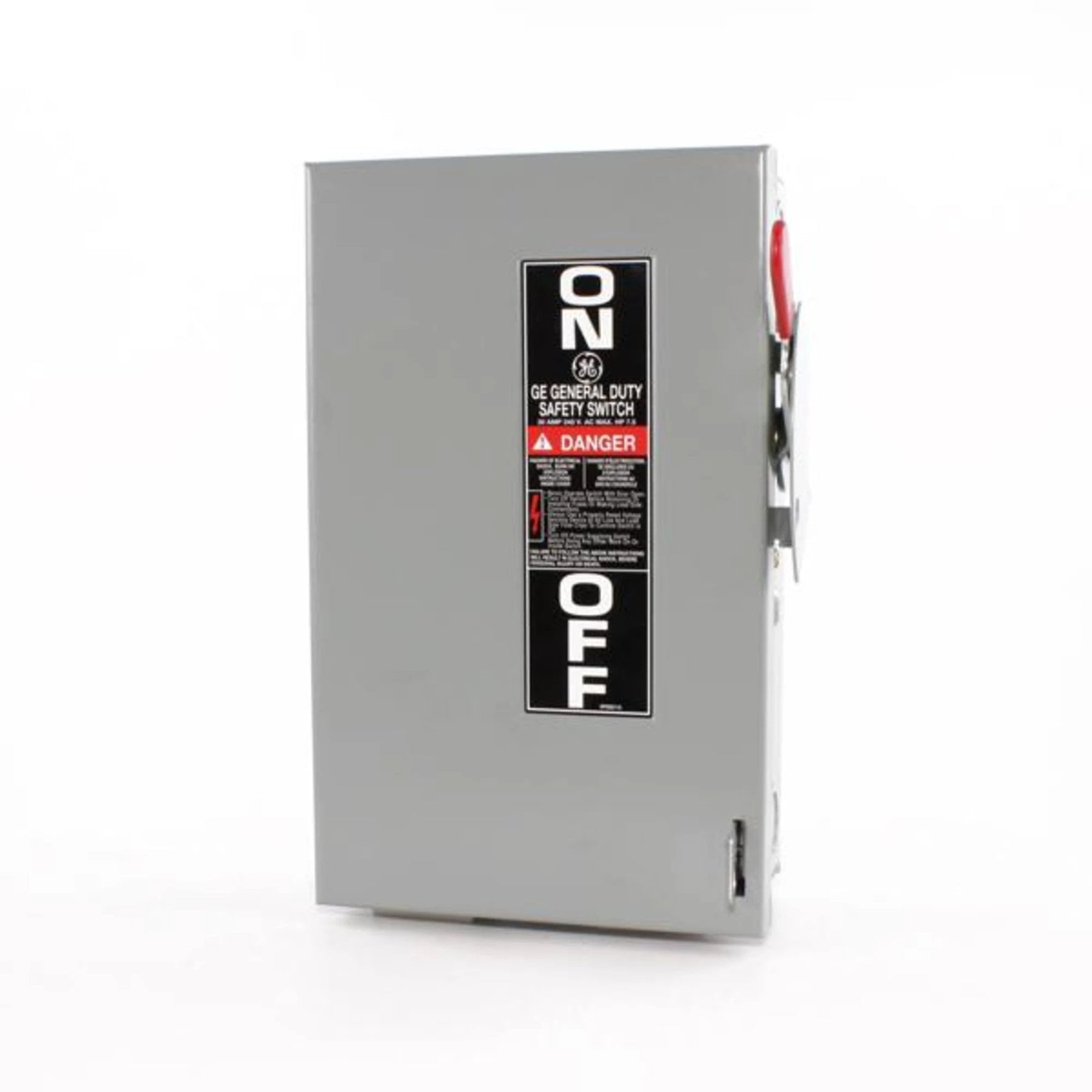

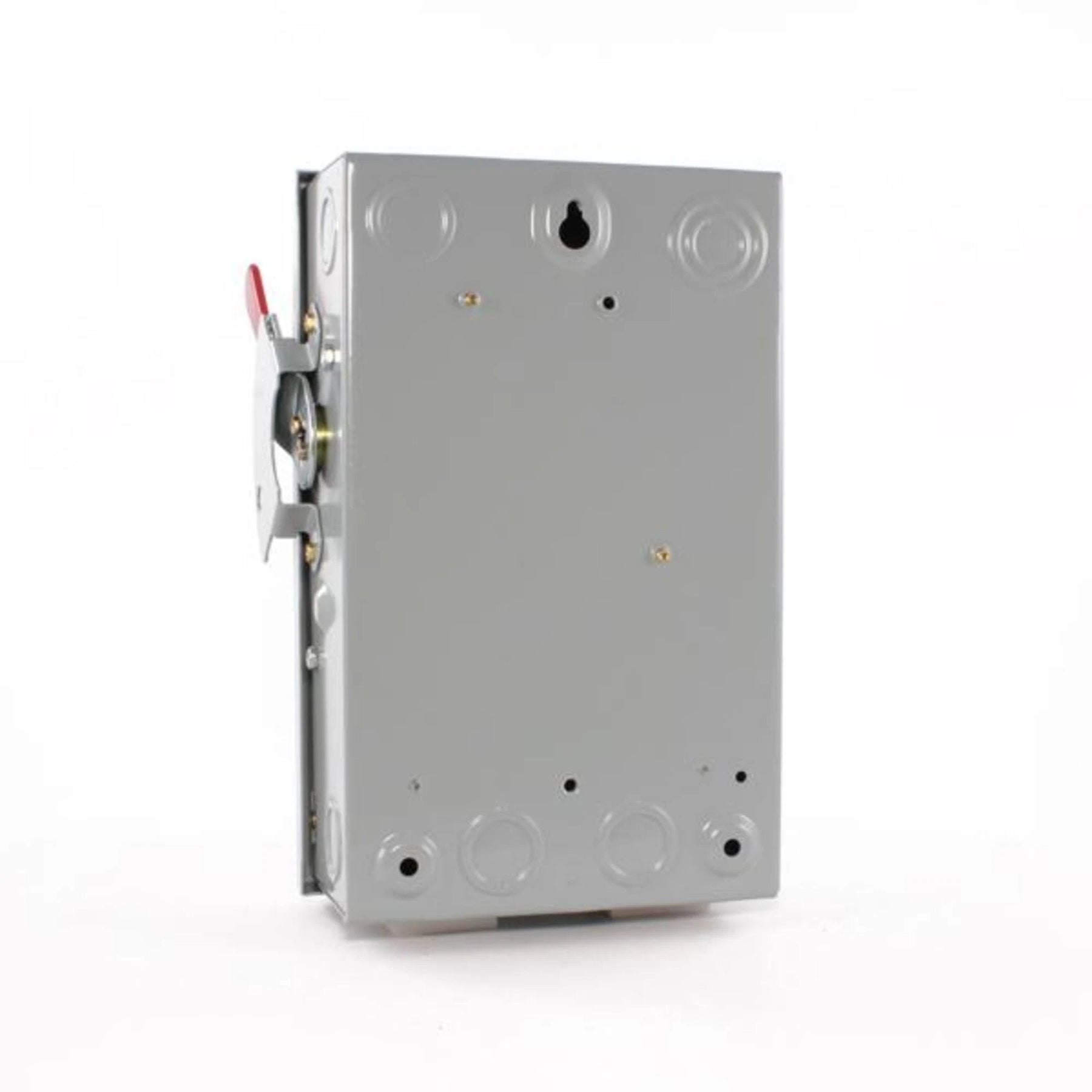

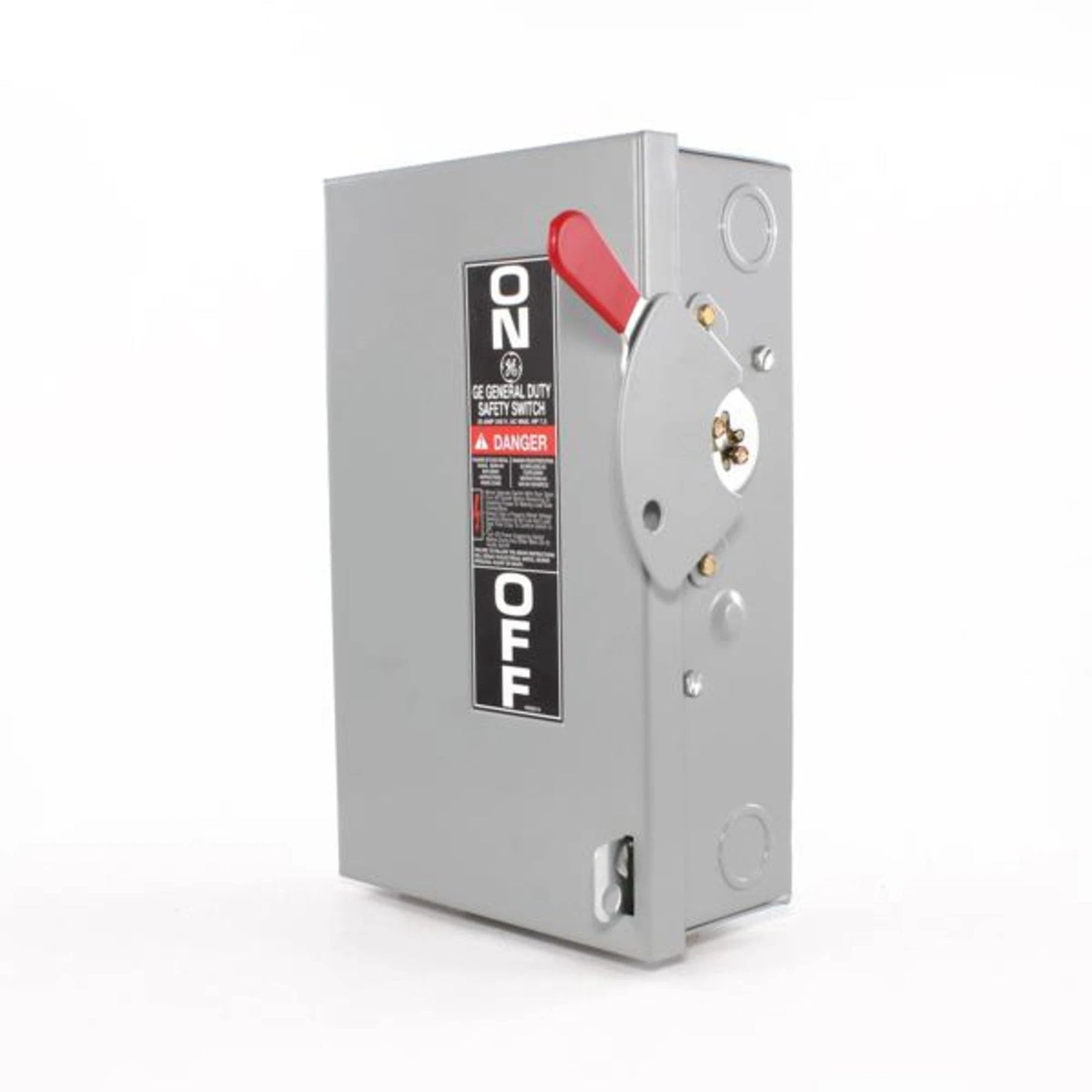

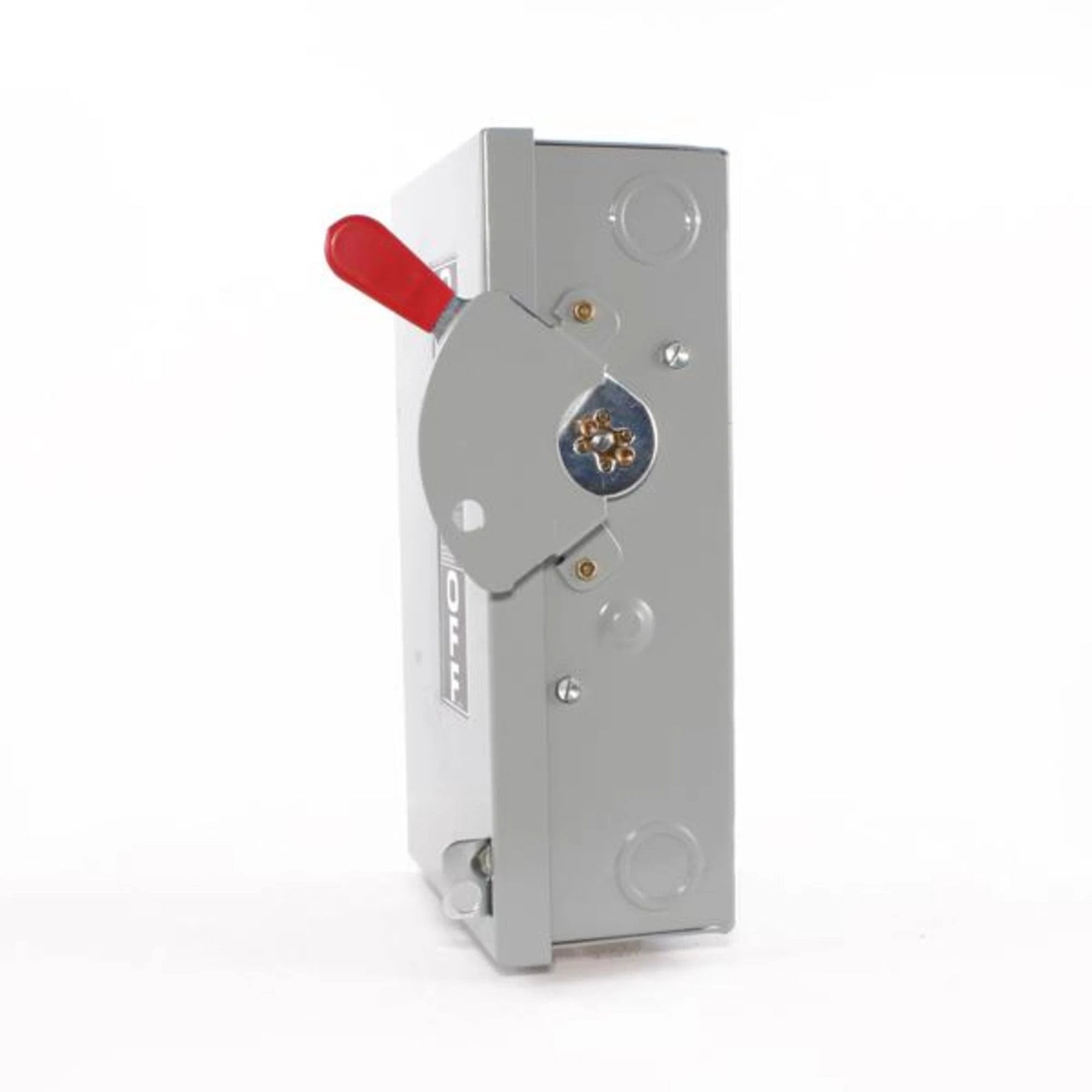

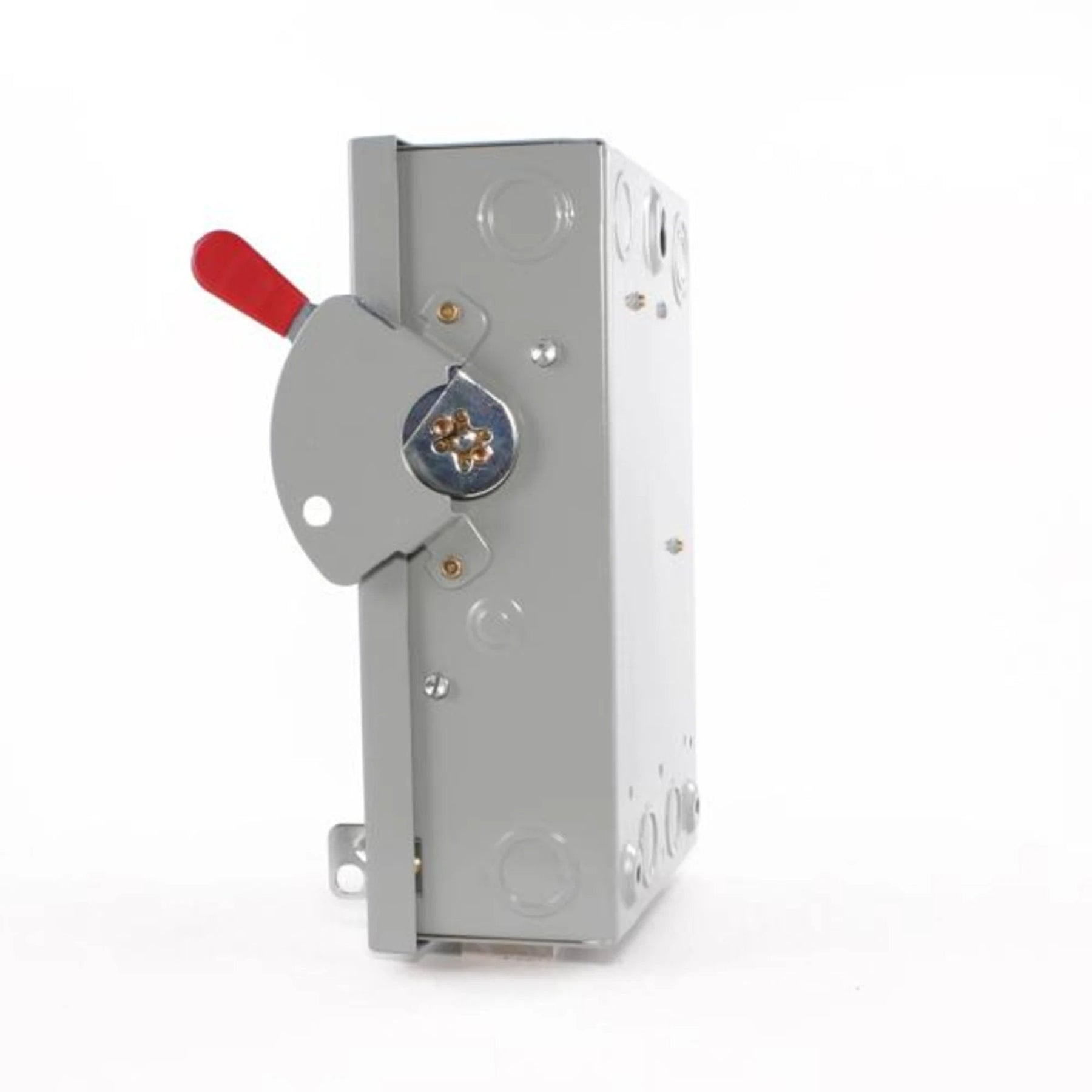

For indoor applications, the TG4322 is a Spec-Setter Type TG disconnect safety switch suitable for use with 240V systems. With a 60A rating and 100kA@240V short-circuit current rating, this 3PH, 3P switch is a fusible type that accepts class R fuses.
