Overview
Product Specifications - HBL2433SW - Hubbell Locking Devices, Twist-Lock
-
Part Number:
HBL2433SW -
Manufacturer:
-
Application:
Heavy Duty Industrial -
Cord Range:
0.350"-1.150" (9-29) -
Color:
Black, White -
Insulation:
Insulated Body -
EU RoHS Indicator:
Yes -
Material:
Composite -
Amperage:
20 -
Voltage:
480 -
Material - Mounting Hardware:
Cord Mounted -
Temperature Rating:
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. -
Display Size:
Standard
-
Type:
Connector Body -
Item Type:
20A Watertight Safety-Shroud® Connector -
Environmental Conditions:
Watertight -
Number of Poles:
3-Pole -
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact -
Horsepower - Maximum:
5
Standards
Product Description - HBL2433SW - Hubbell Locking Devices, Twist-Lock

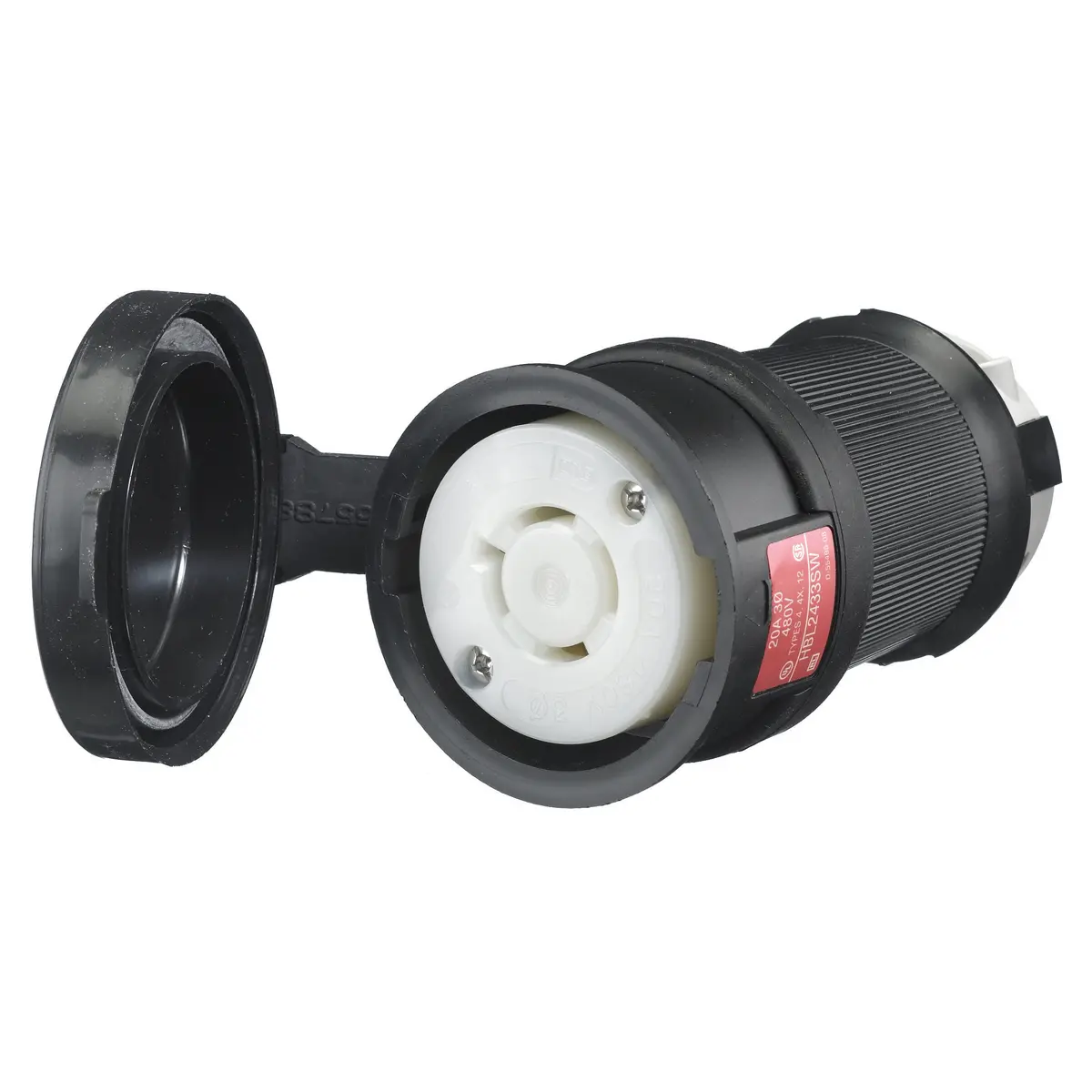

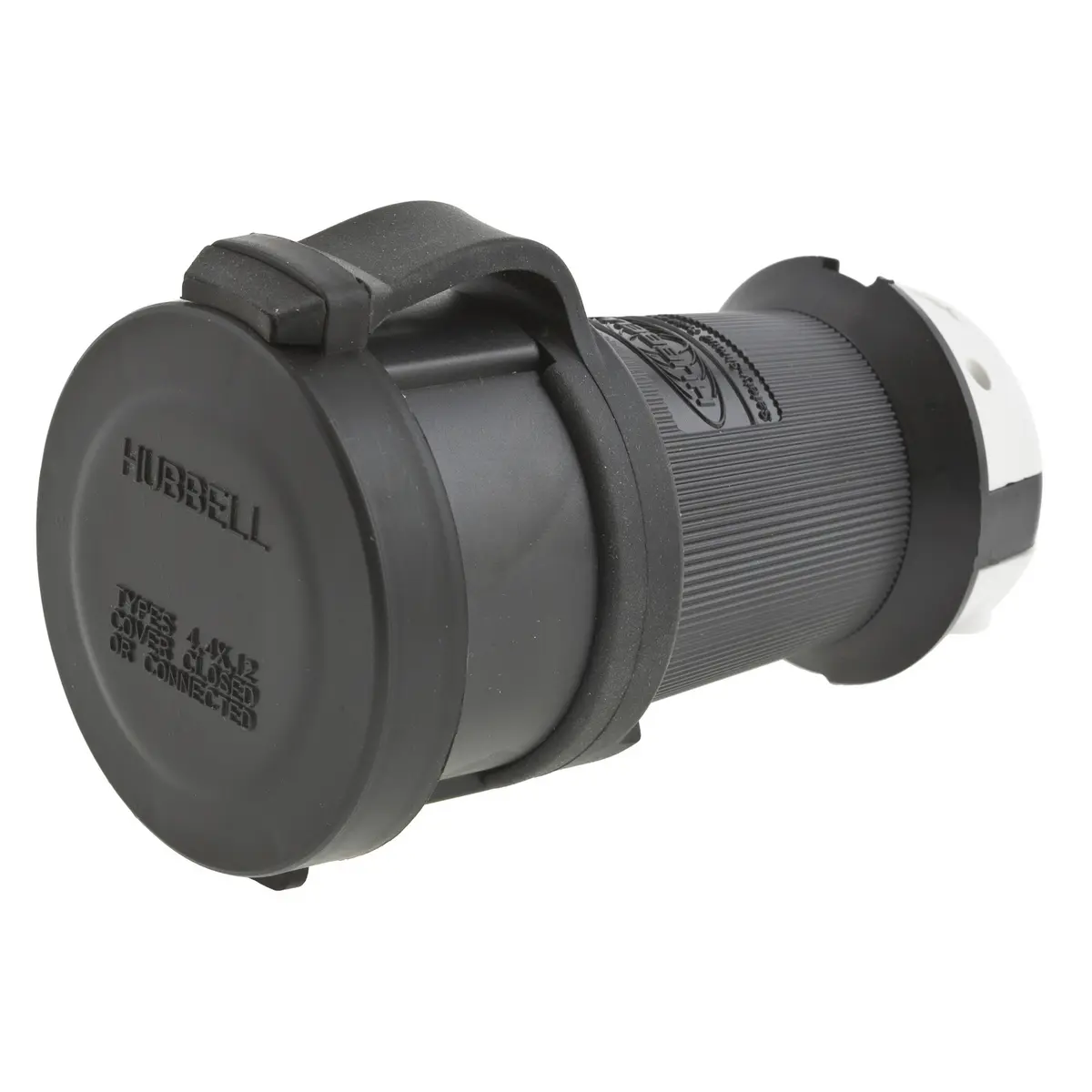

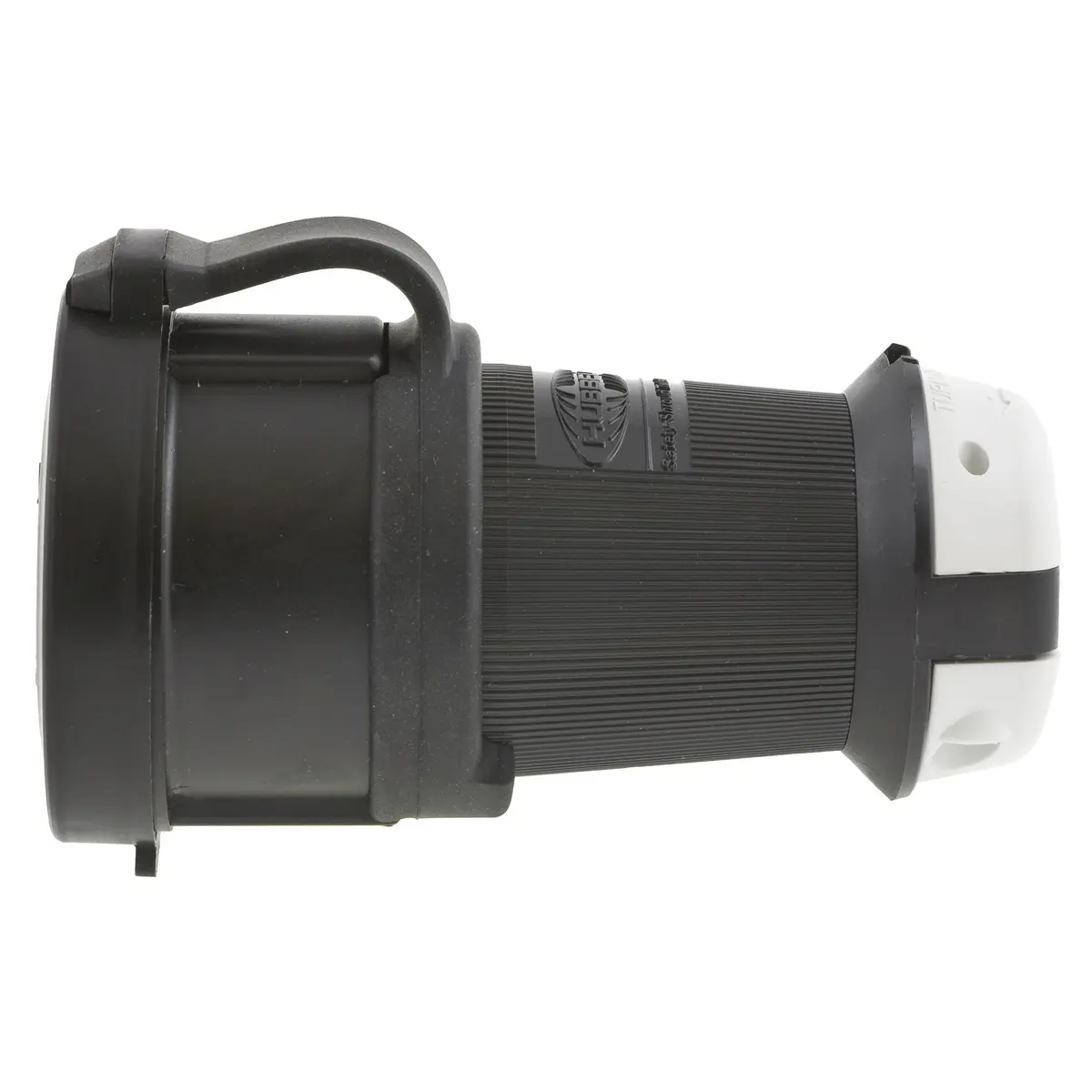

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Black PBT housing, White PBT clamps.
