QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker

Bolt-On - 100 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QOB3100VH
QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker
QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker
QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker
QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker

Images are for reference only

QOB3100VH - Square D - 100 Amp 22kA Circuit Breaker

Bolt-On - 100 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QOB3100VH
Save $503.33
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

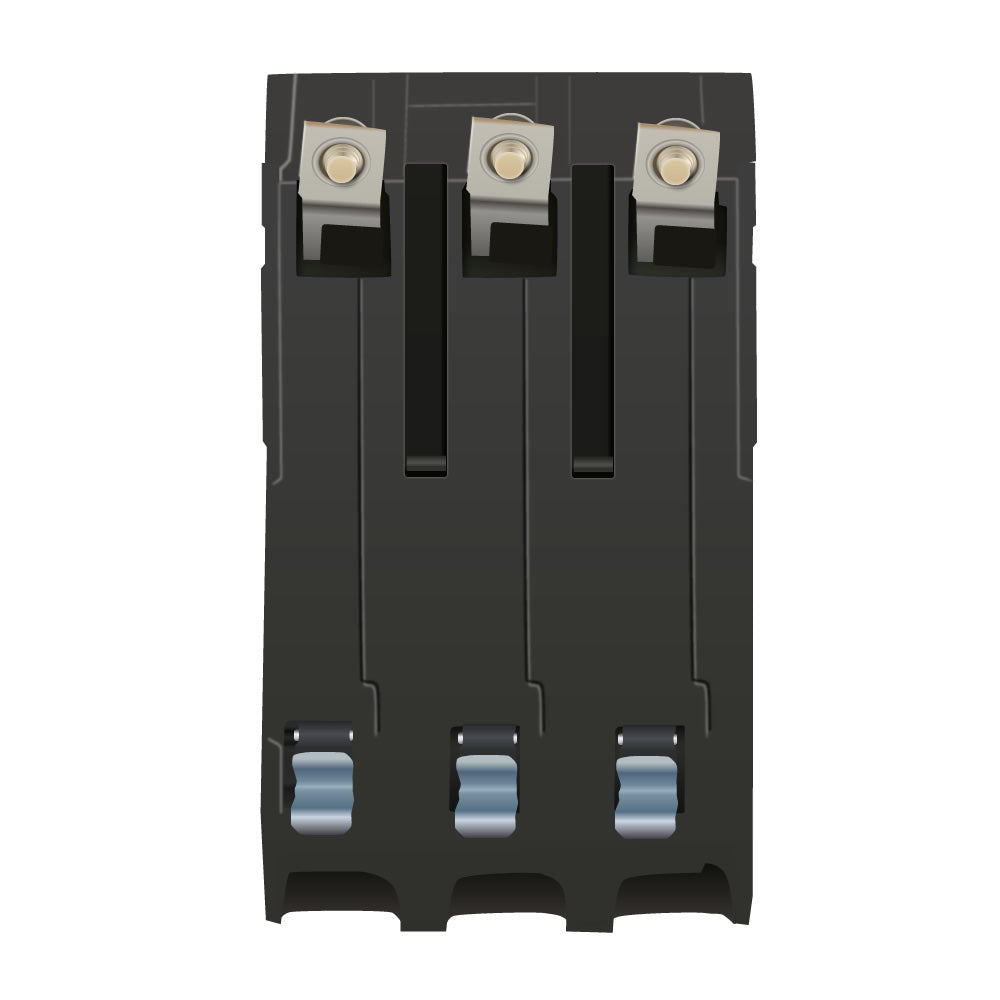

QOB3100VH - Square D Bolt-On 100 Amp Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 AWG - 300 Kcmil copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 100 Amps and short-circuit current rating of 22 kilo-Amps.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 100 A
  • System Voltage: 120 V AC, 120/240 V AC, 240 V AC
  • Mounting Type: Bolt-on
  • Number of Poles: 3P
  • Circuit Breaker Type: Standard
  • Ratings: HACR rated
  • Electrical Connection: Box lugs
  • Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
  • Number of Panel Spaces: 3
  • Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
  • Certifications: CSA, UL listed
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Square D Product
  • Dimensions (H x W x L): 3.5" x 2.25" x 2.91"
  • 3 phase

Alt model: q0b3100vh
