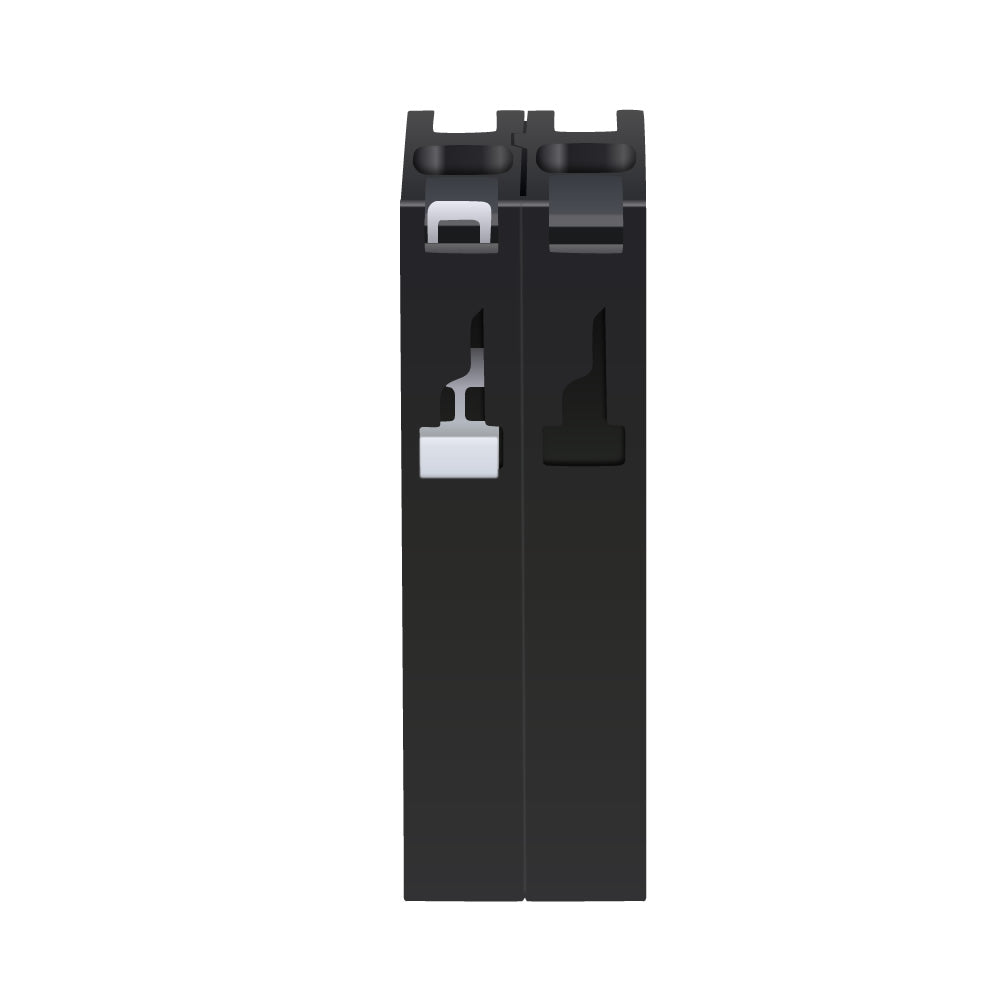

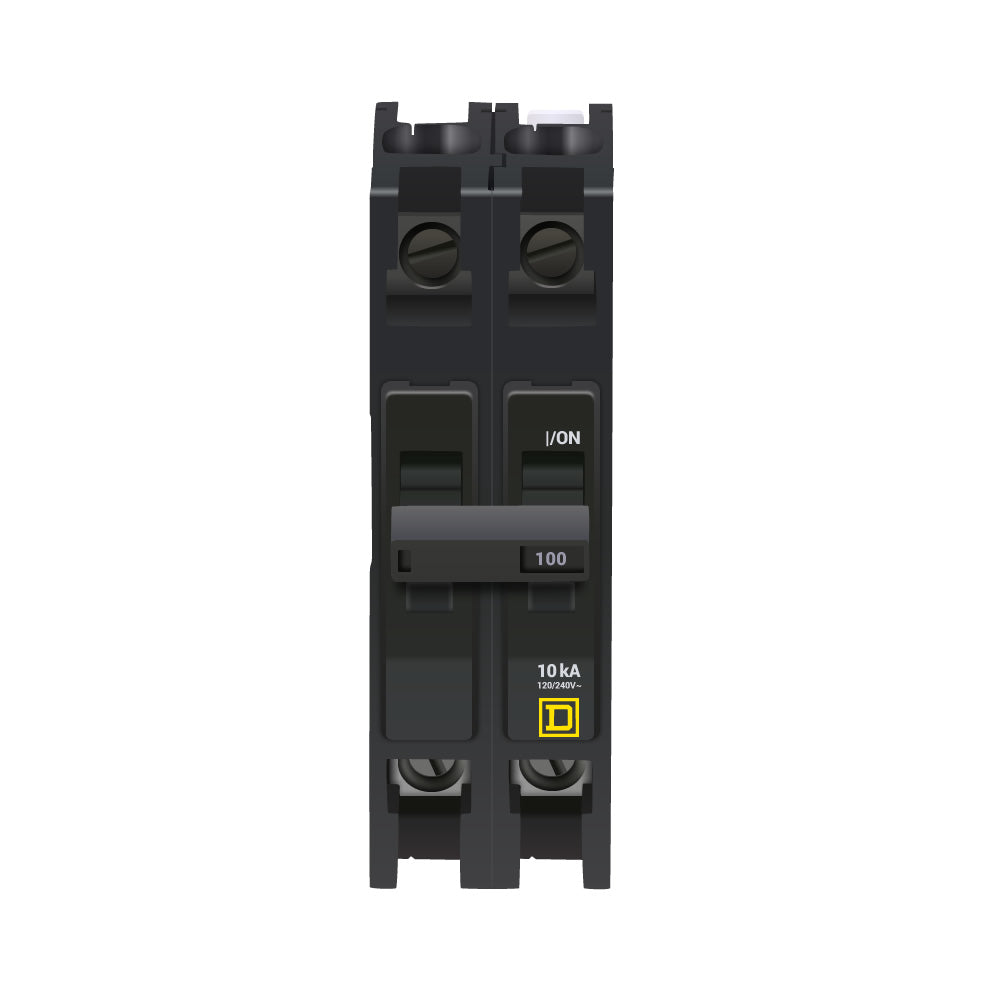

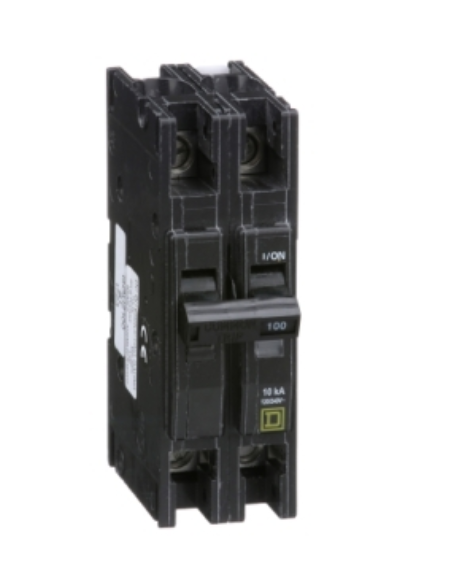

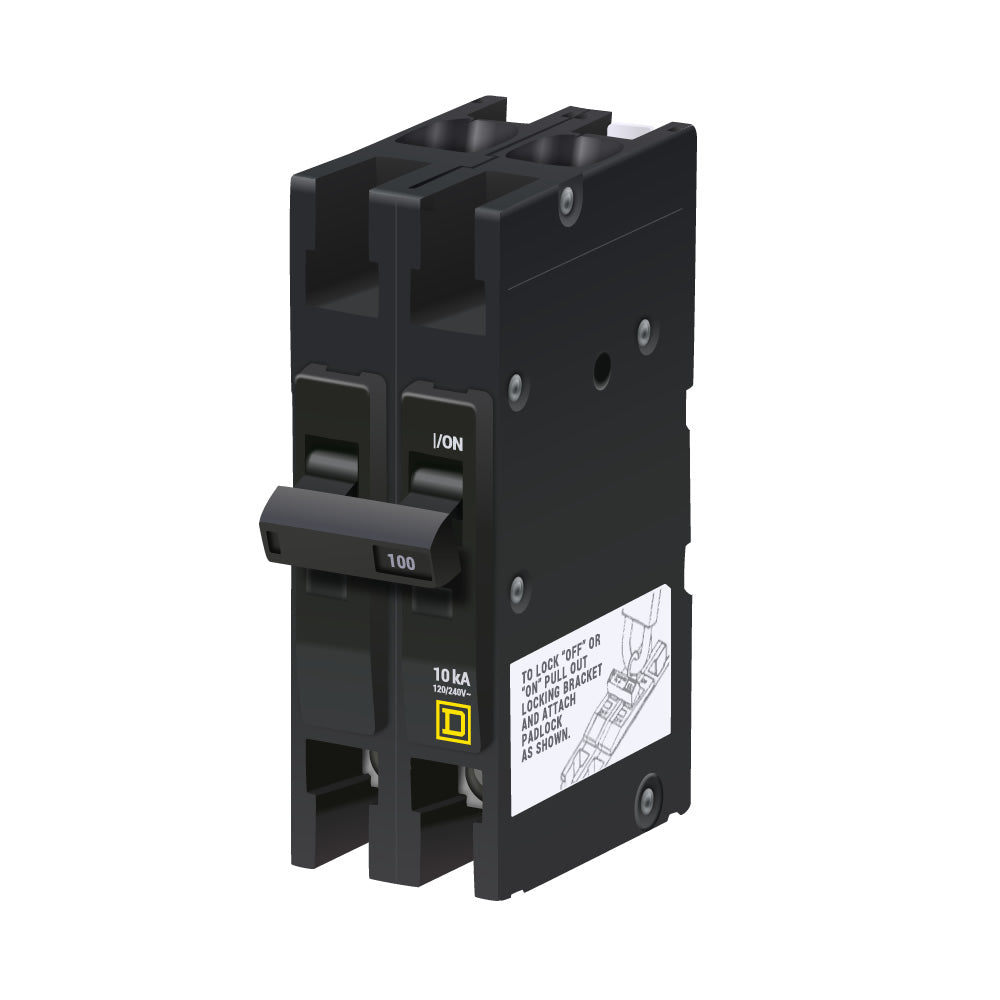

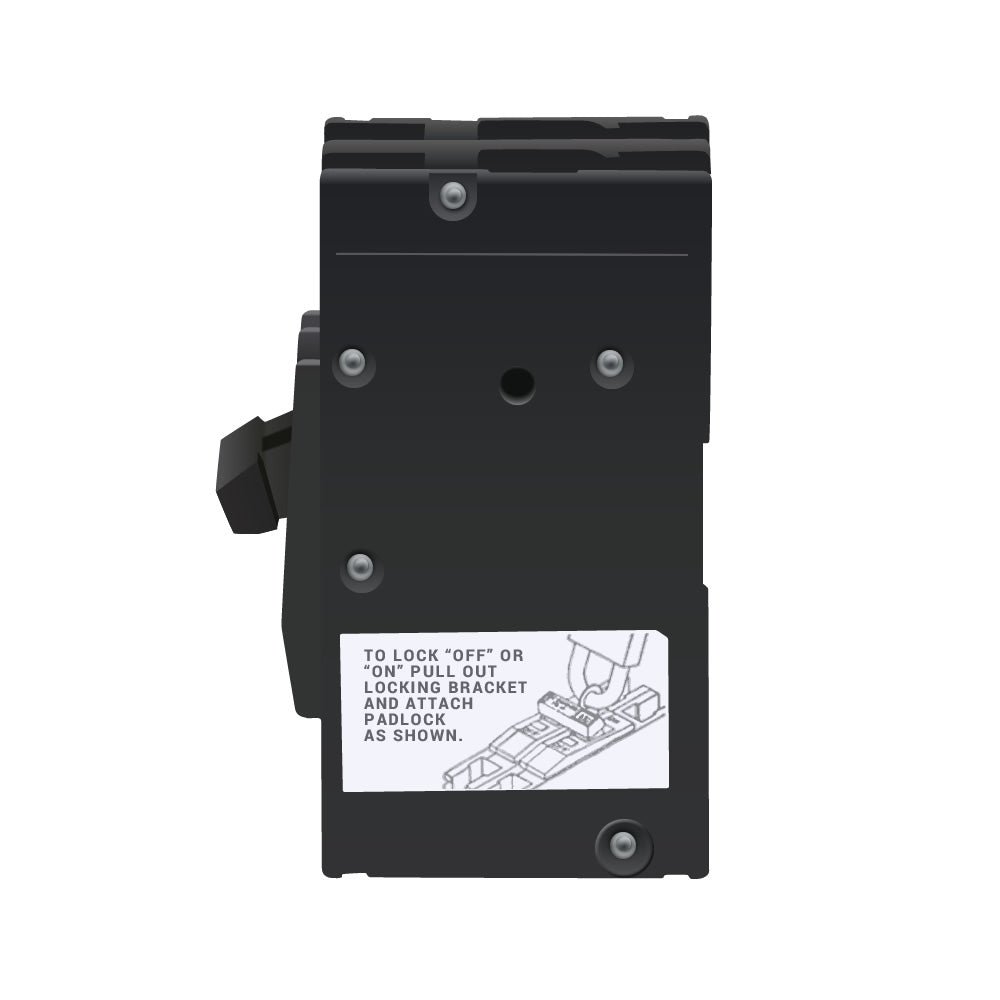

QOU2100 - Square D - 100 Amp Circuit Breaker
Bolt-On - 100 Amp - 2 Pole - 240 Volt
Schneider Electric
SKU: QOU2100
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
QOU2100 - Square D Bolt-On Circuit Breaker
Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 100 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 4 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.
Specifications:
- Product or component type: Miniature circuit-breaker
- Range of product: QOU
- Circuit breaker type: Standard
- Line Rated Current: 100 A
- Number of Poles: 2P
- Interrupt Rating: 10 kA at: 120/240 V AC, 10 kA at: 120 V AC, 5 kA at: 60 V DC
- Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
- System Voltage: 120 V AC, 120/240 V AC, 60 V DC
- Mounting mode: Unit mount
- AWG gauge: AWG 12...AWG 2/0 (aluminium/copper)
- Height: 4.45 in
- Depth: 2.95 in
- Width: 1.5 in
- Product certifications: CSA, IEC, UL listed
- Authentic Square D Product
- Dimensions (H x W x L): 4.45" x 1.5" x 2.95"
Alt model: q0u2100
