Overview

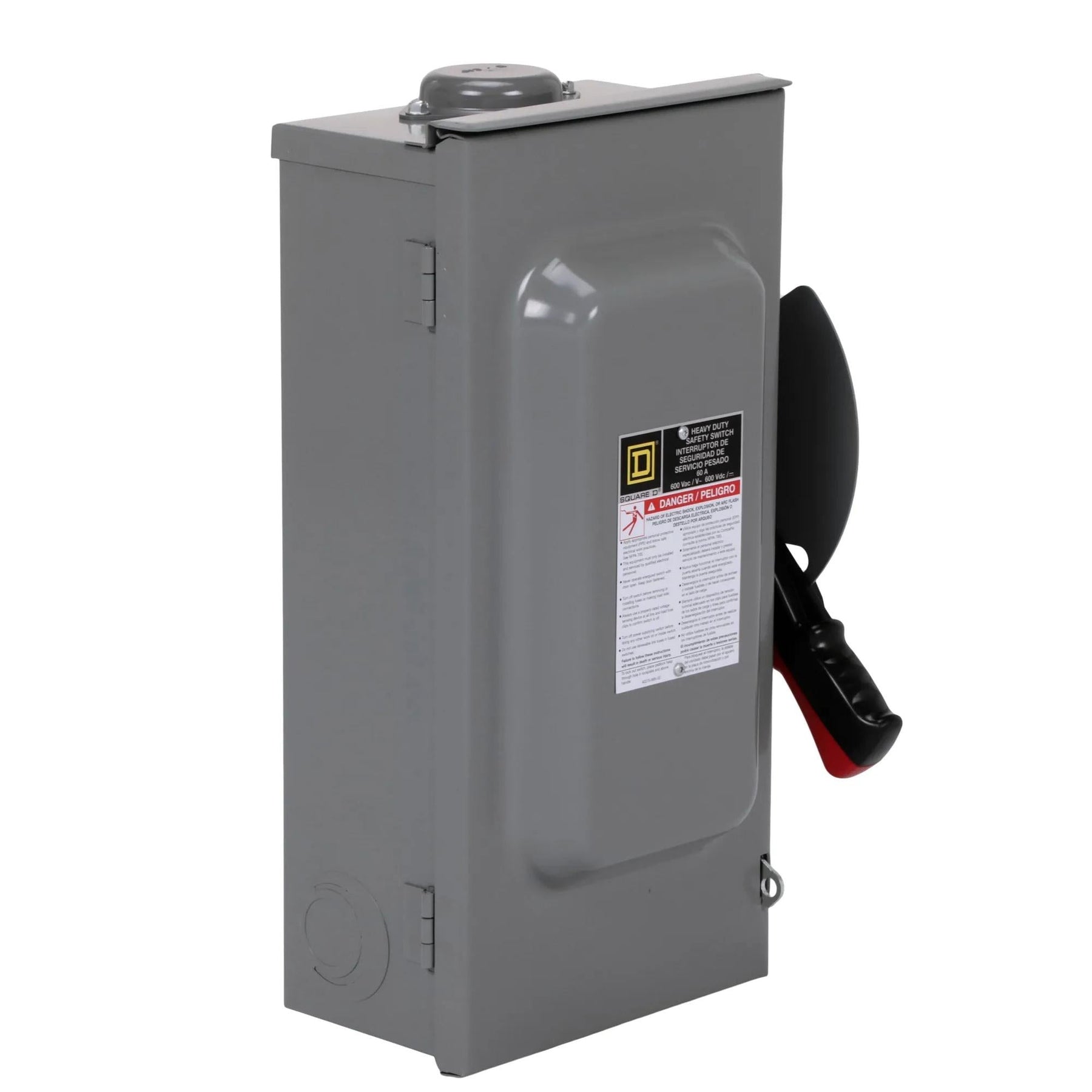

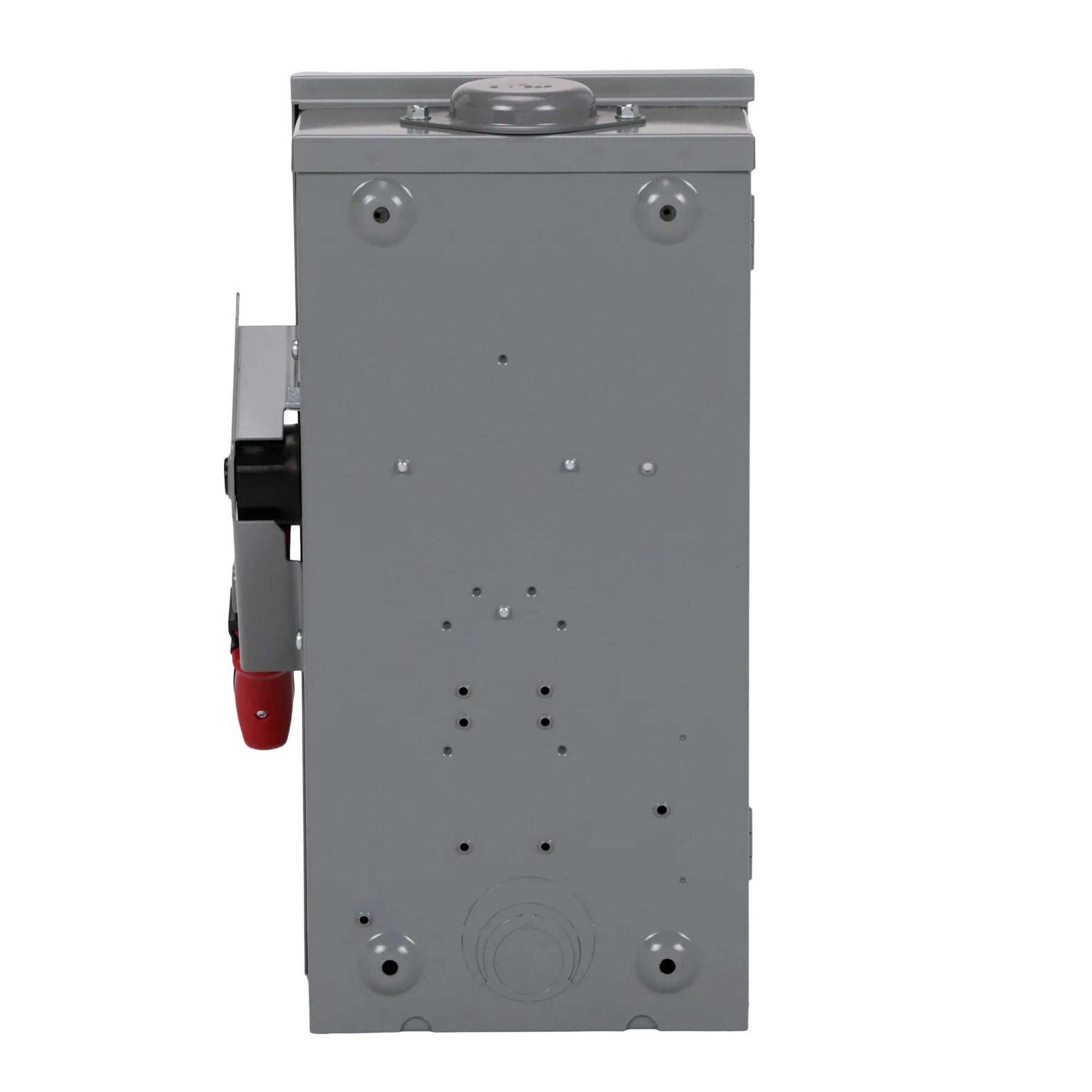

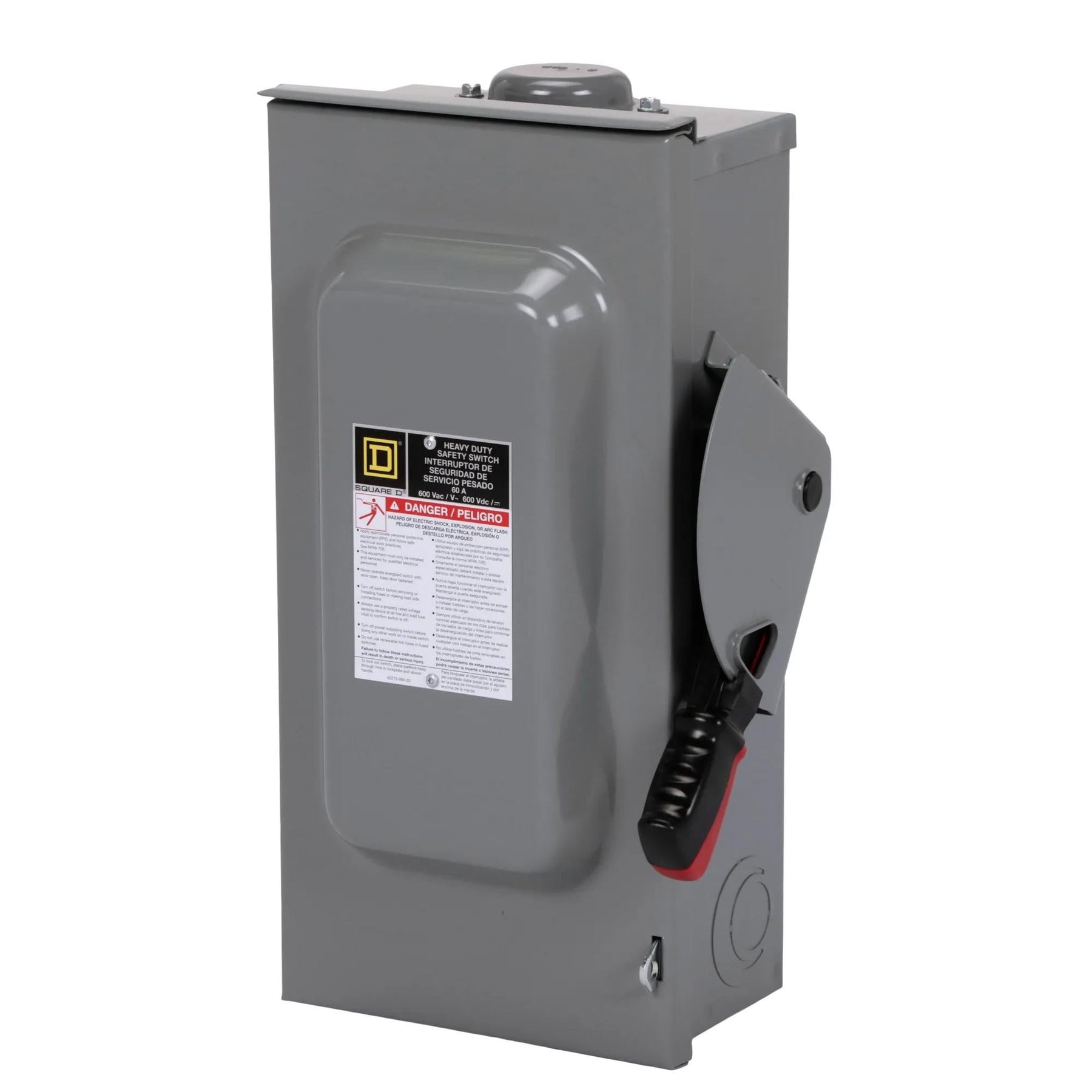

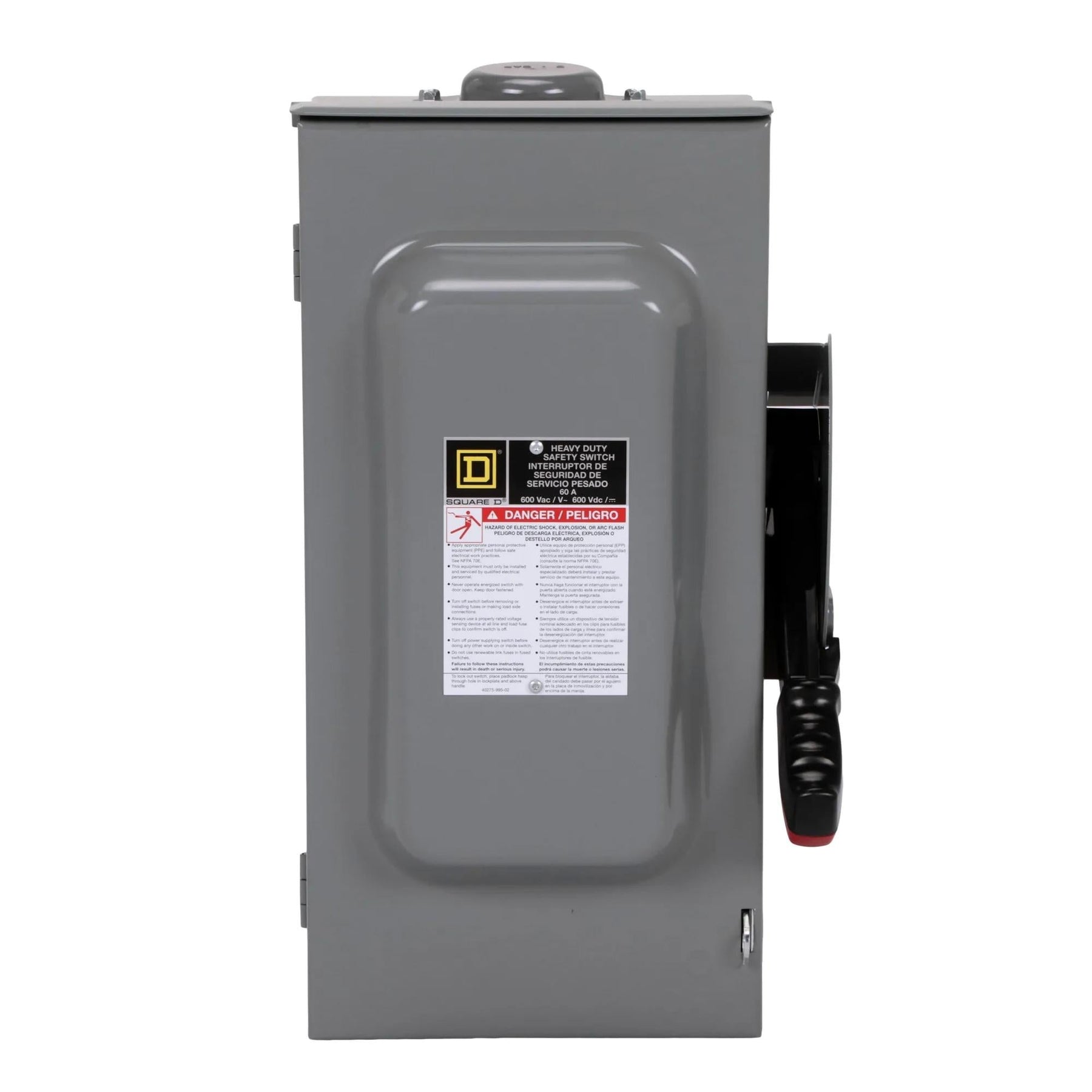

Product Specifications - HU362NRB - Square D Safety Switch
-
Part Number:
HU362NRB -
Manufacturer:
-
Pole:
3 -
Amp:
100 -
Volt:
600
-
Category:
-
Type:
HU
Dimensions
-
Dimensions (HxWxD):
17.5 x 10.5 x 6.38 -
Weight:
15.43 lbs
Standards
Product Description - HU362NRB - Square D Safety Switch
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 60A and has a NEMA 3R degree of protection and made of stainles steel and bolt on hub. This non-fusible disconnect has a short circuit rating of 200kA@600VAC and has a neutral (factory installed). This surface mounted safety switch has 4 wire configuration and is rated for 14 to 3 AWG copper or 12 to 3 AWG aluminum wire This product os compatable with H or K, R, J or L fuses. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 17.5 in (H), 10.5 in (W), 6.38 in (D).
