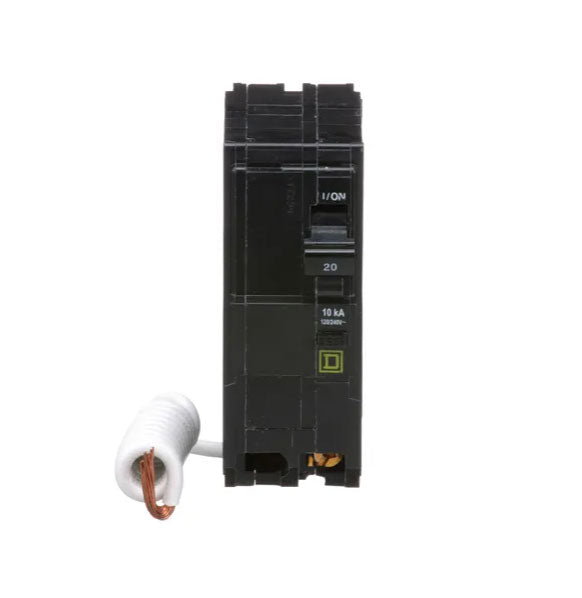

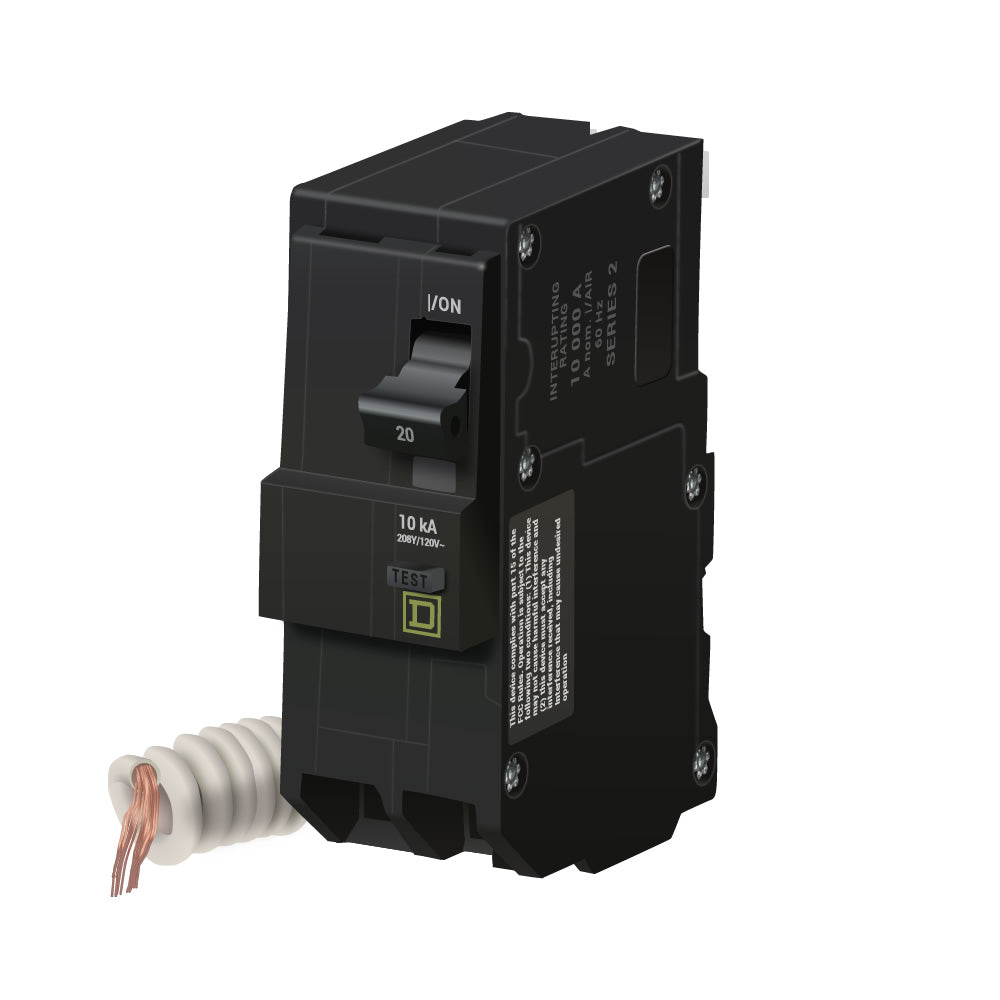

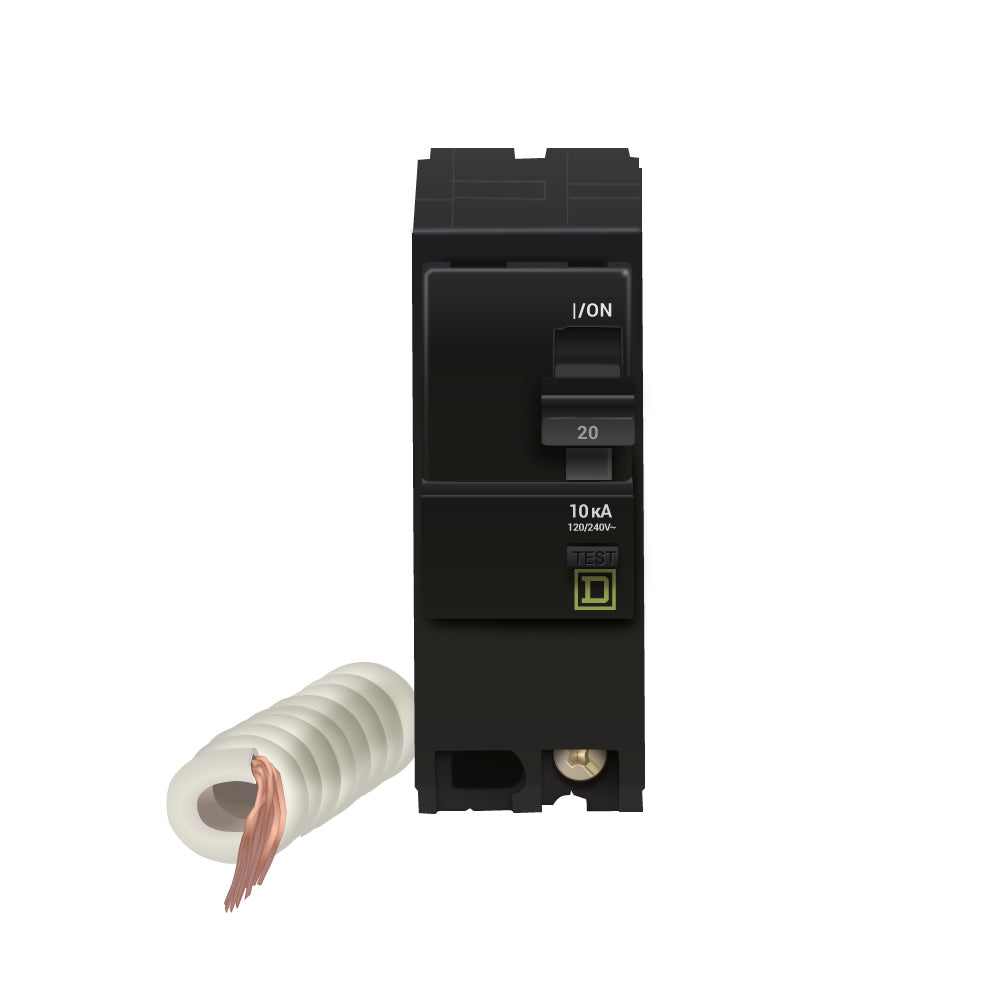

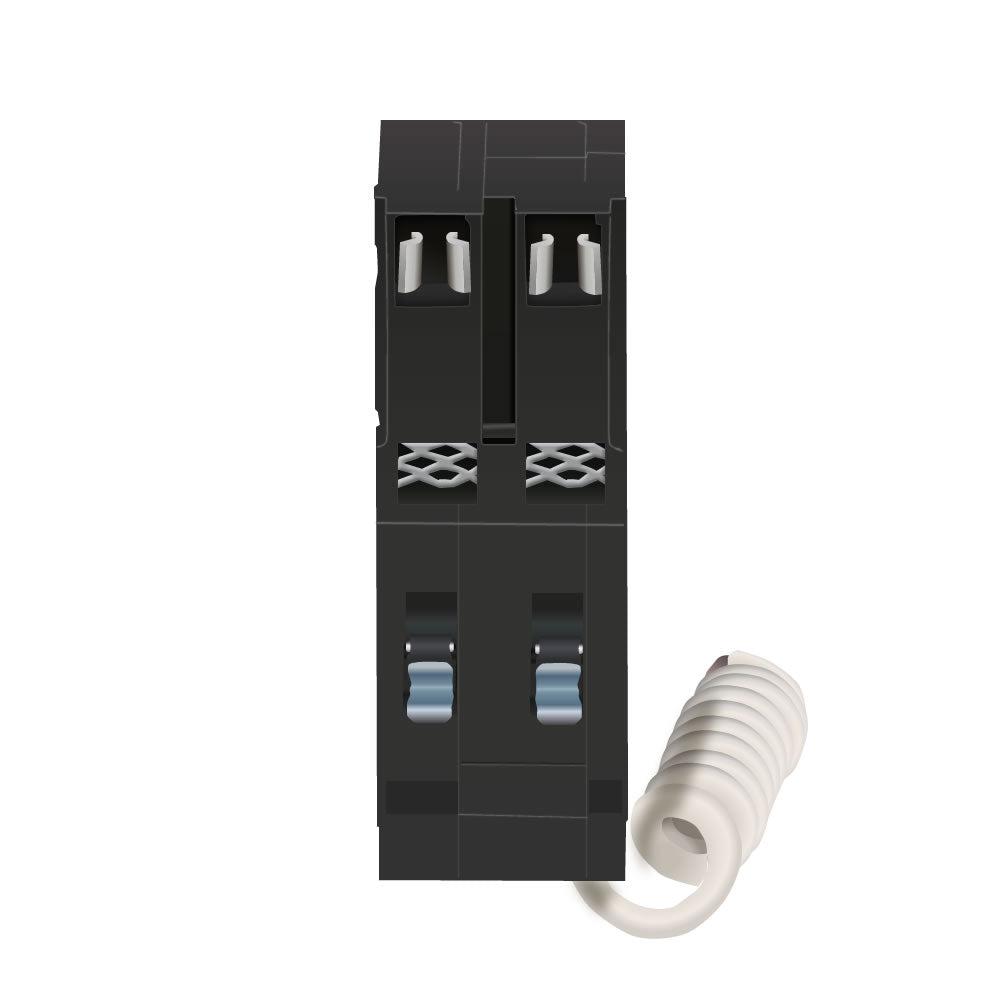

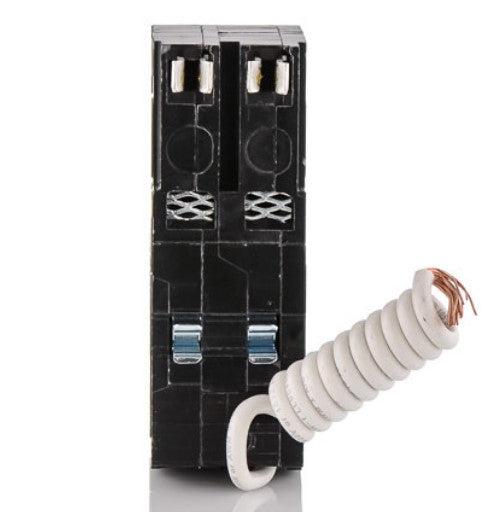

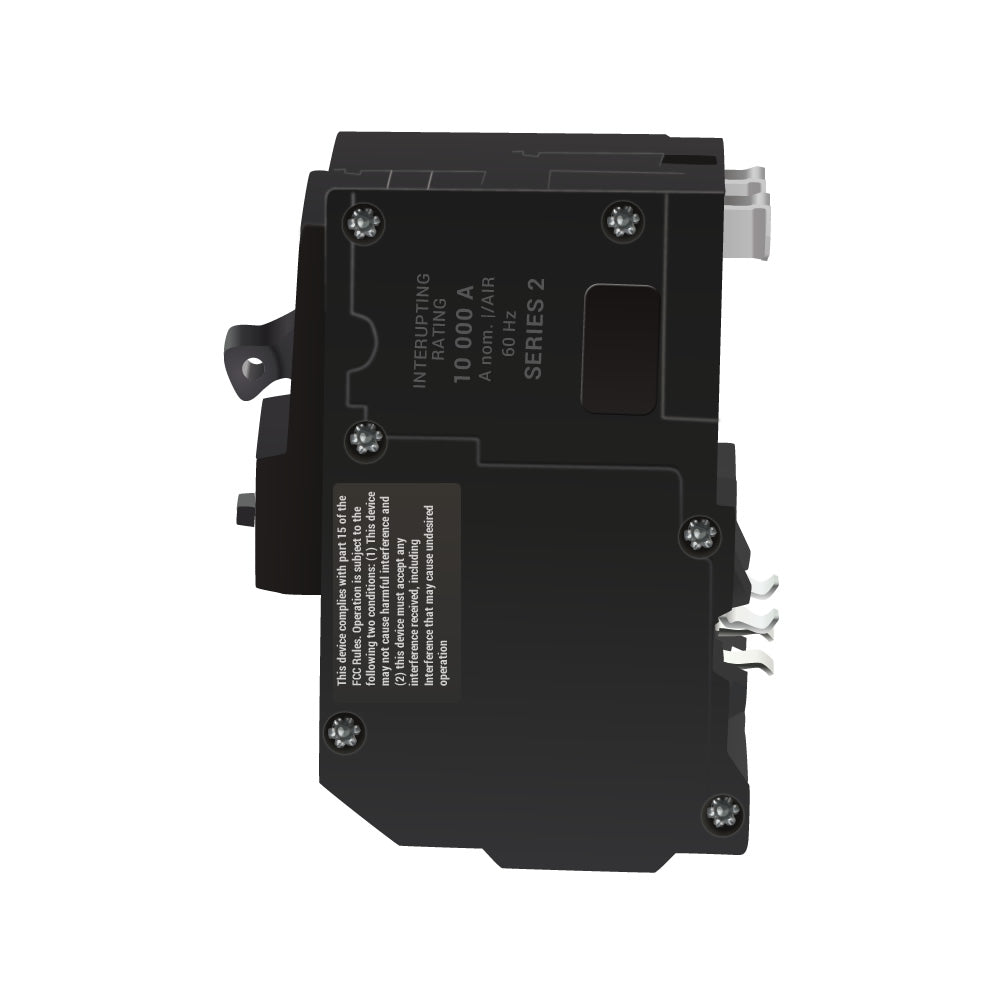

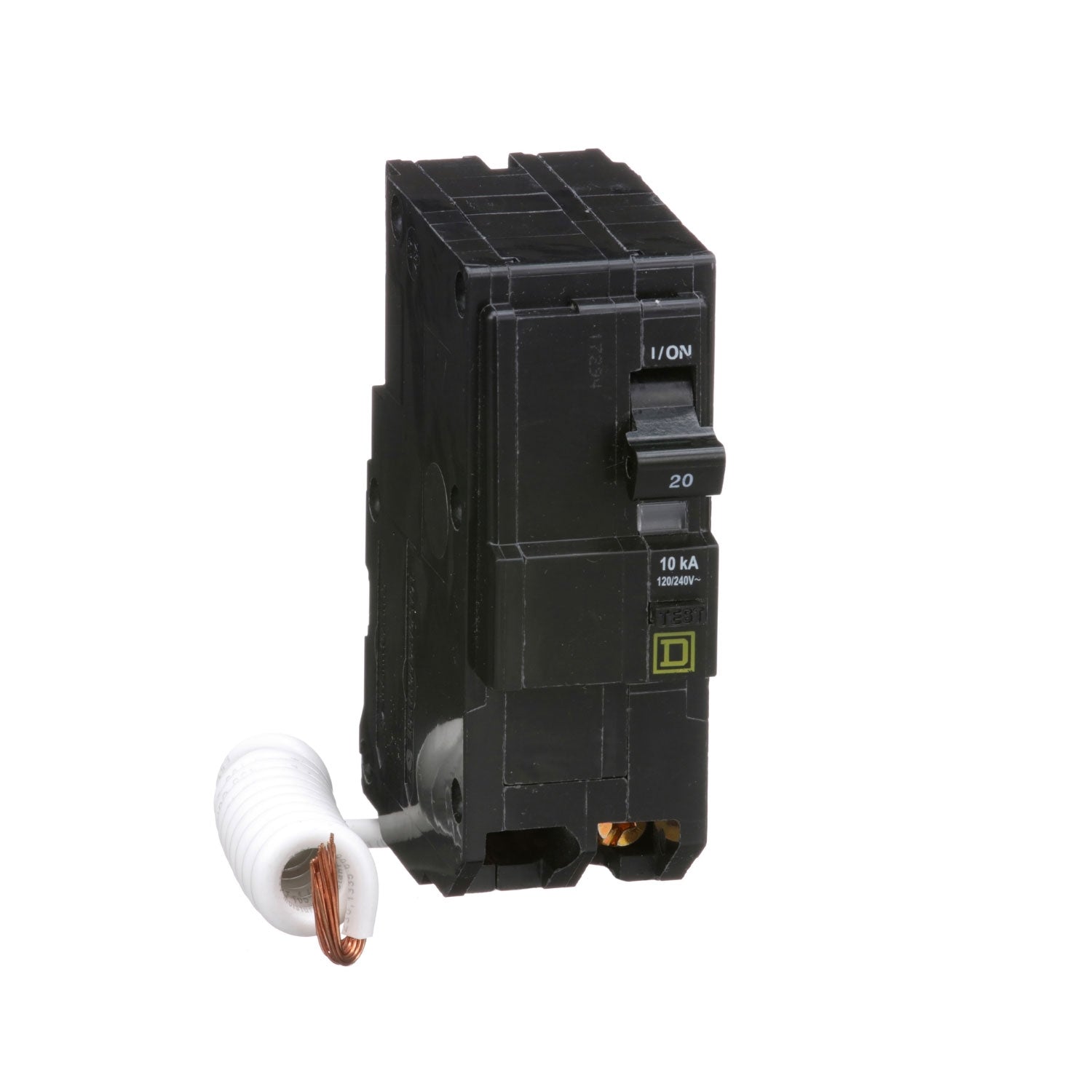

QO220EPD - Square D Ground Fault Equipment Protection Breaker
Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 20 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 12 - 8 AWG.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 20 A
- System Voltage: 120 V AC, 120/240 V AC
- Mounting Type: Plug-in
- Number of Poles: 2P
- Circuit Breaker Type: Ground fault protecting class B 30 mA
- Ratings: Not rated
- Electrical Connection: Pressure plate
- Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
- Number of Panel Spaces: 2
- Wire Size: AWG 14...AWG 8 (copper), AWG 12...AWG 8 (aluminium)
- Certifications: CSA, UL listed
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Square D Product
- Dimensions (H x W x L): 4.12" x 1.5" x 2.91"
Alt model: q0220epd
