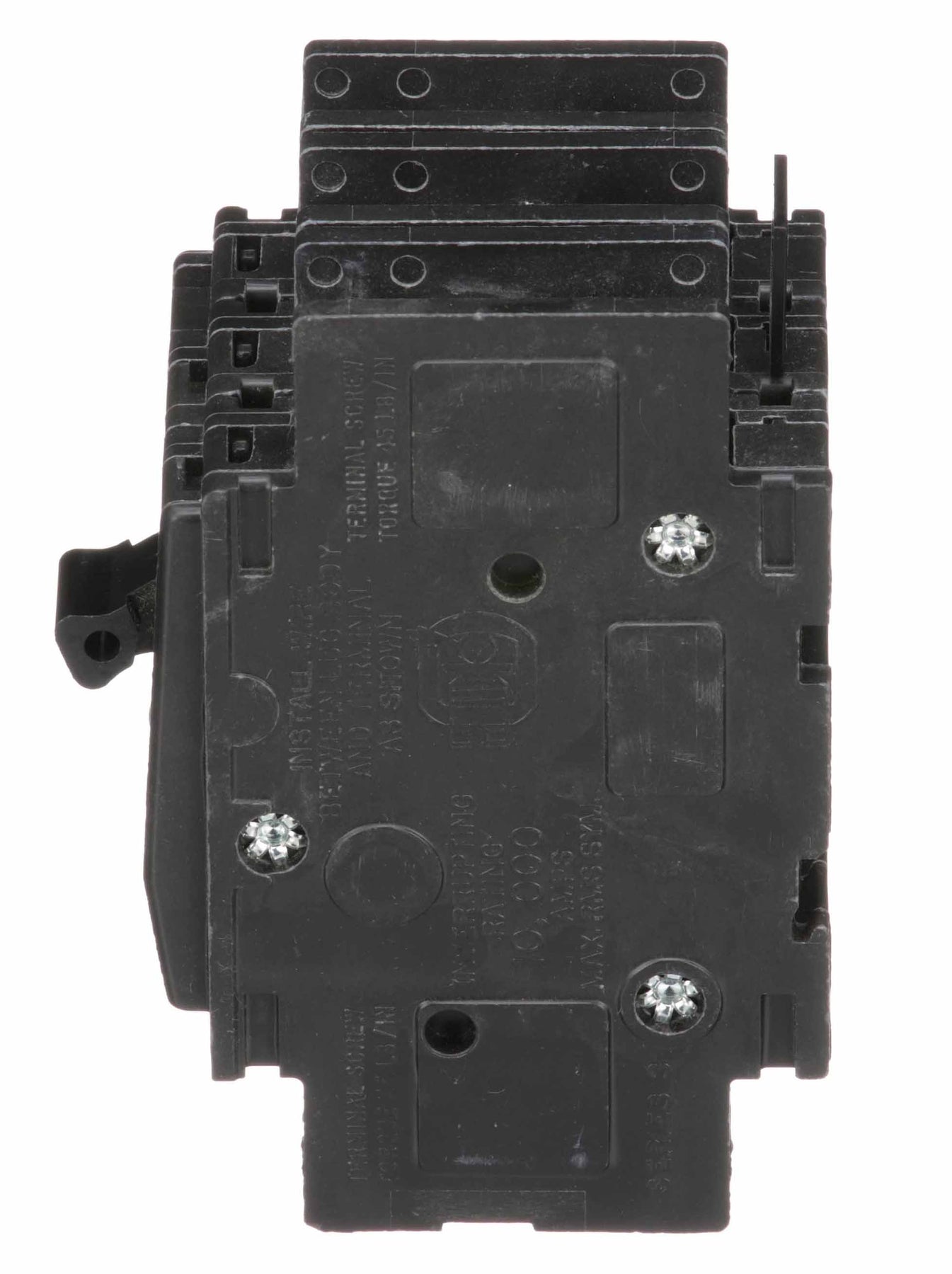

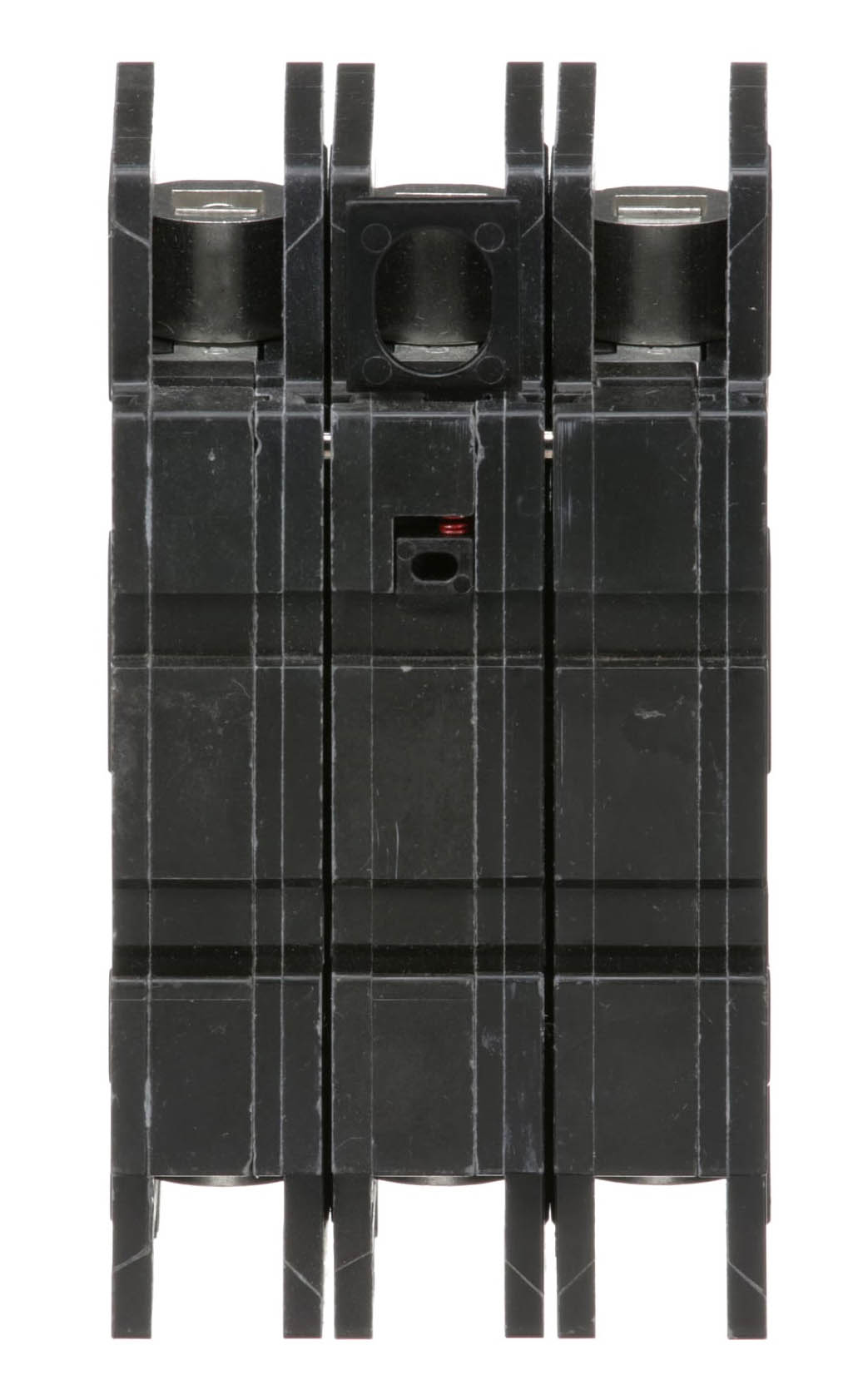

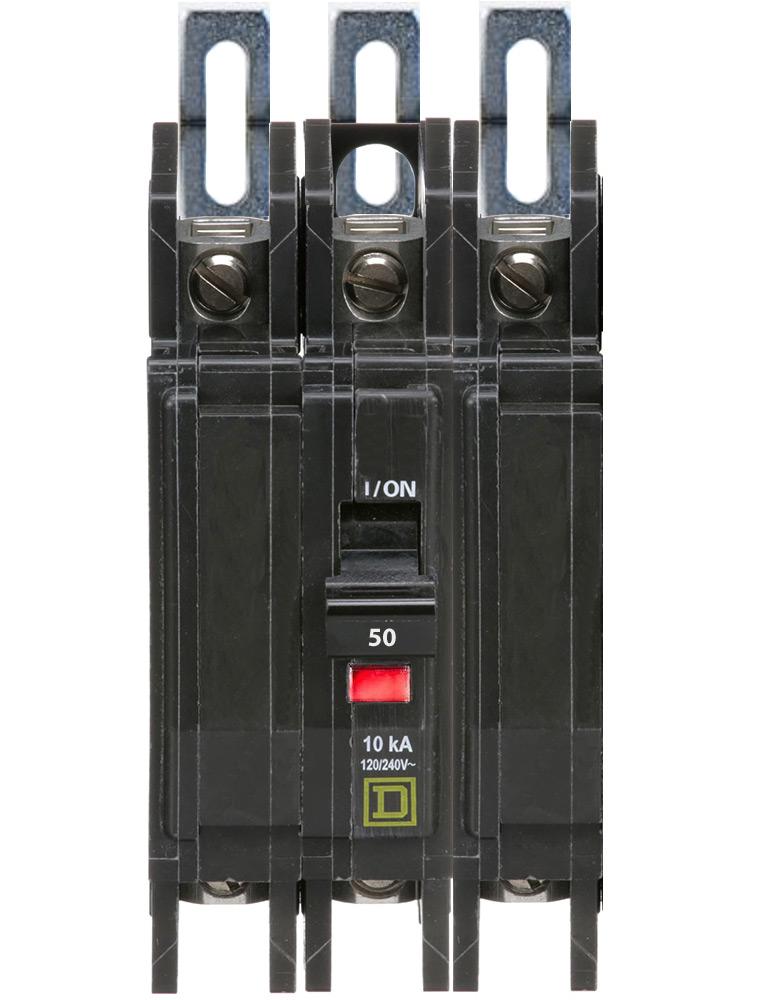

QOU350 - Square D Unit Mount Miniature Circuit Breaker

This product is a 3-Pole Standard miniature circuit breaker features thermal magnetic molded case for extra protection. Circuit breaker has current rating of 30 Amps and voltage rating of 240 VAC. It has interrupt rating of 10 kilo-Amps at 240 VAC and 5 kilo-Amps at 48/60 VDC. It accommodates copper or aluminum wire of range 14 - 2 AWG.

Specifications:

• Product or component type: Miniature circuit-breaker
• Range of product: QOU
• Circuit breaker type: Standard
• Circuit breaker application: HACR and Switching Duty rated
• Line Rated Current: 50 A
• Number of Poles: 3P
• Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC, 10 kA at: 240 V AC
• Electrical connection: Slotted box lugs, line side, load side
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
• Mounting mode: Unit mount
• AWG gauge: AWG 14...AWG 2 (aluminium/copper)
• Height: 4.05 in
• Depth: 2.95 in
• Width: 2.25 in
• Product certifications: CSA, IEC, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 4.05" x 2.25" x 2.95"
• 3 phase

Alt model: q0u350
