Overview

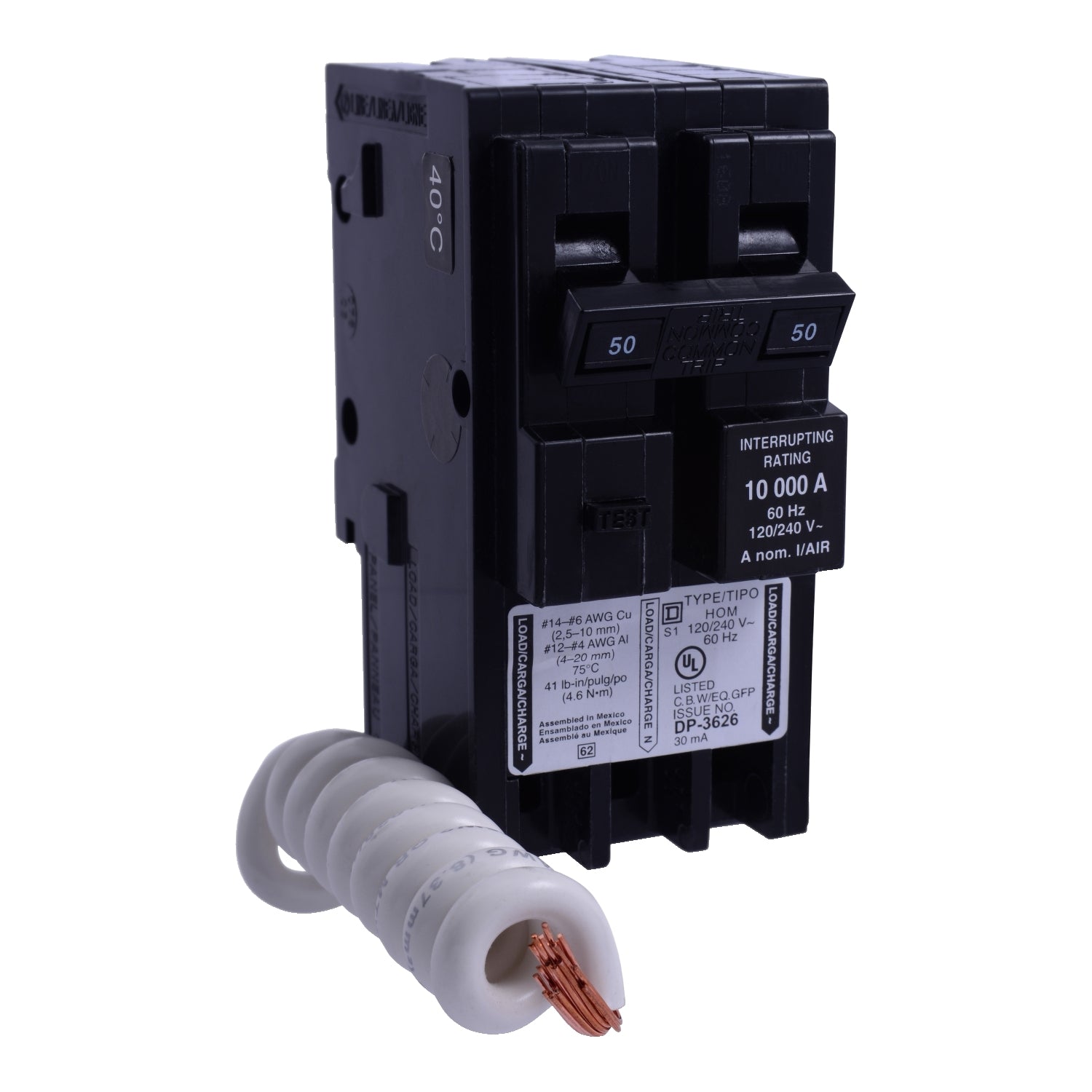

Product Specifications - HOM250EPD - Square D - 50 Amp Molded Case Circuit Breaker
-
Part Number:
HOM250EPD -
Manufacturer:
Schneider Electric / Homeline -
Family:
Homeline -
Pole:
2 -
Amp
50 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOM -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V

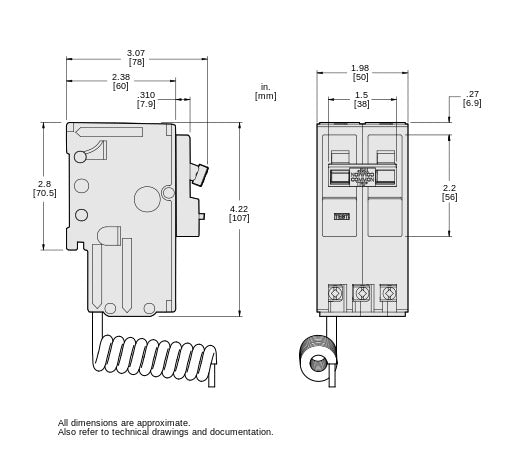

Dimensions
-
Dimensions (HxWxD):
3.7 x 2 x 2.6 -
Weight:
1.21 lbs
Standards
Product Description - HOM250EPD - Square D - 50 Amp Molded Case Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
