Overview
Product Specifications - H362DS Schneider Electric Disconnect and Safety Switch
-
Part Number:
H362DS -
Manufacturer:
-
Family:
Series F -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
H -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
6.97 x 10.81 x 16.87 -
Weight:
20 lb
Standards

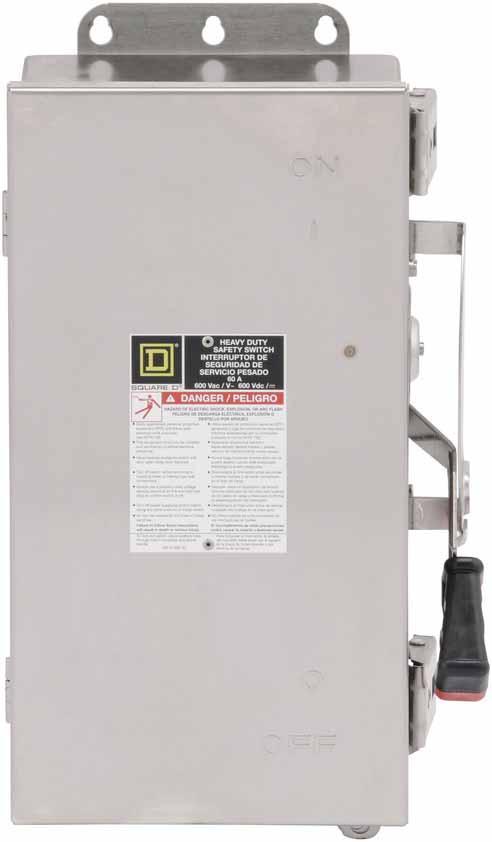

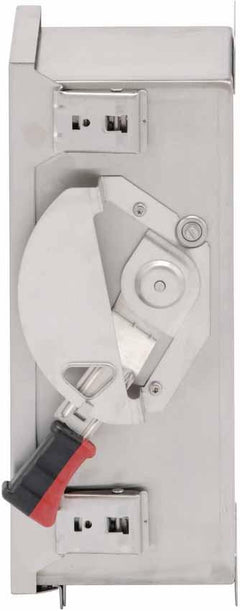

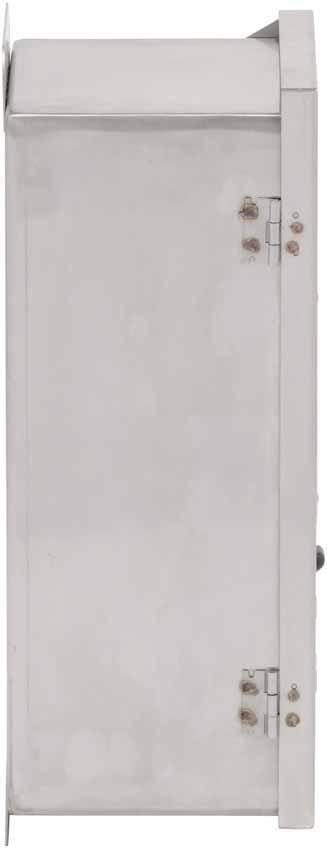

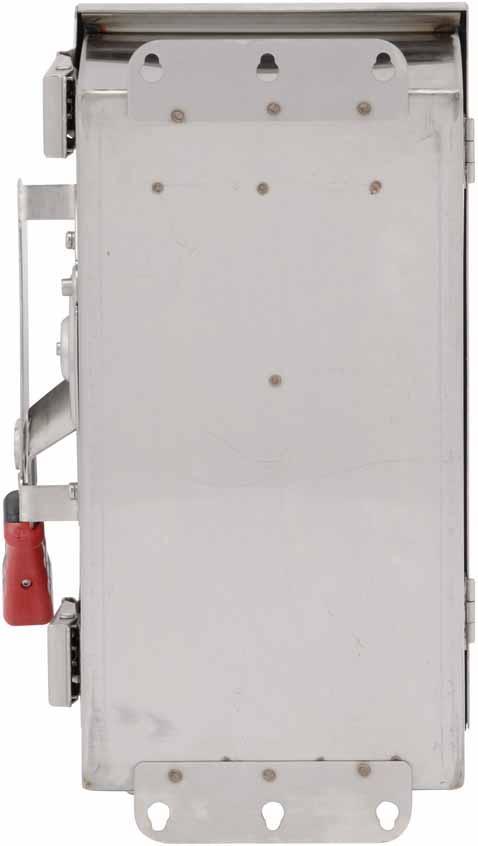

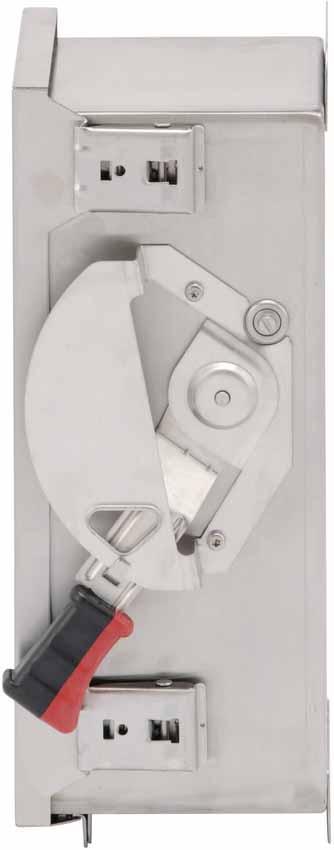

Product Description - H362DS Schneider Electric Disconnect and Safety Switch
H362DS, Square D, Series F, type H, F6 series heavy duty Fusible safety switch, 3PH, 3P, 600V, 60A, NEMA 4/4X enclosure, 50HP max, Fusible type, accepts J,R fuses, 200kA@600V max, viewing window standard, Single throw
