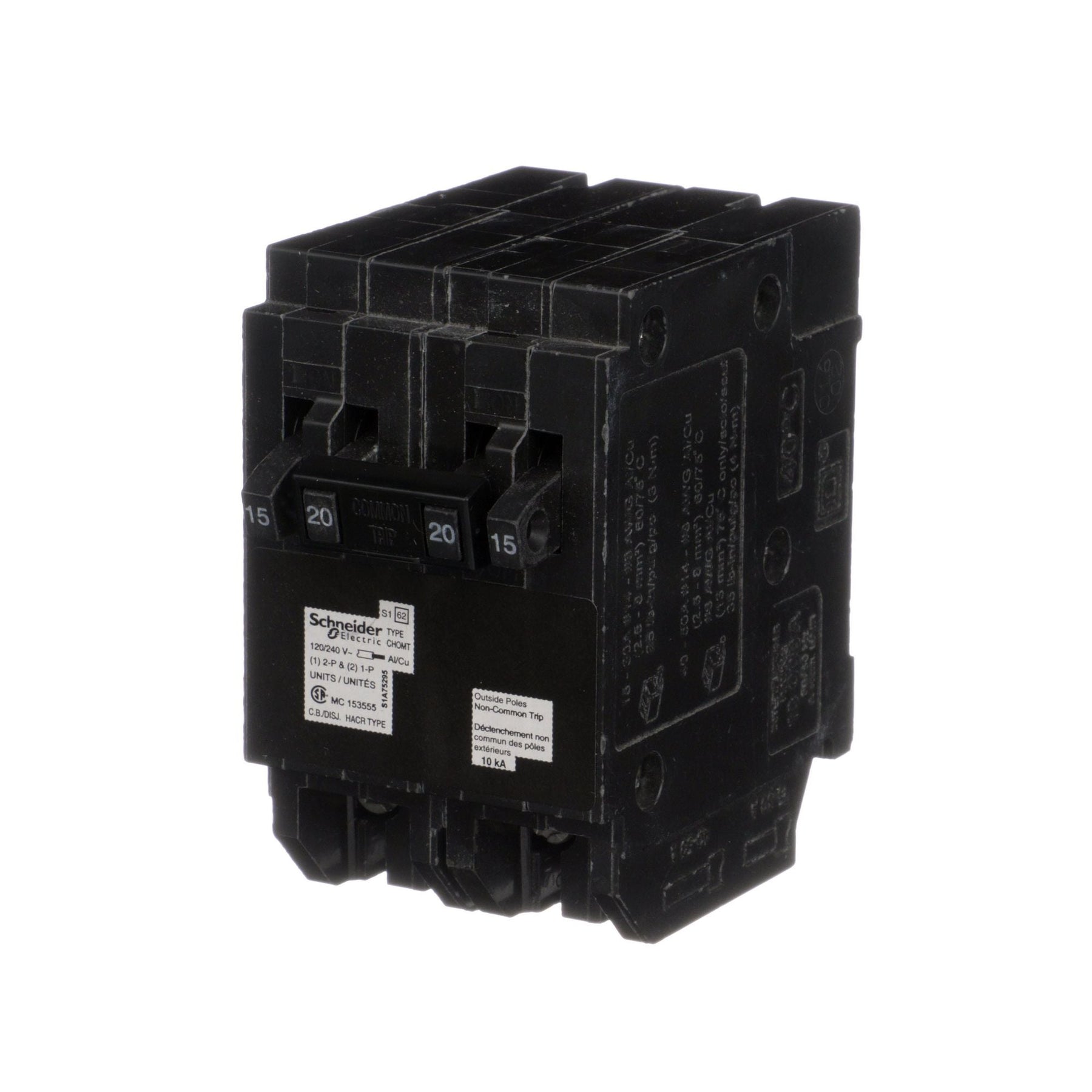

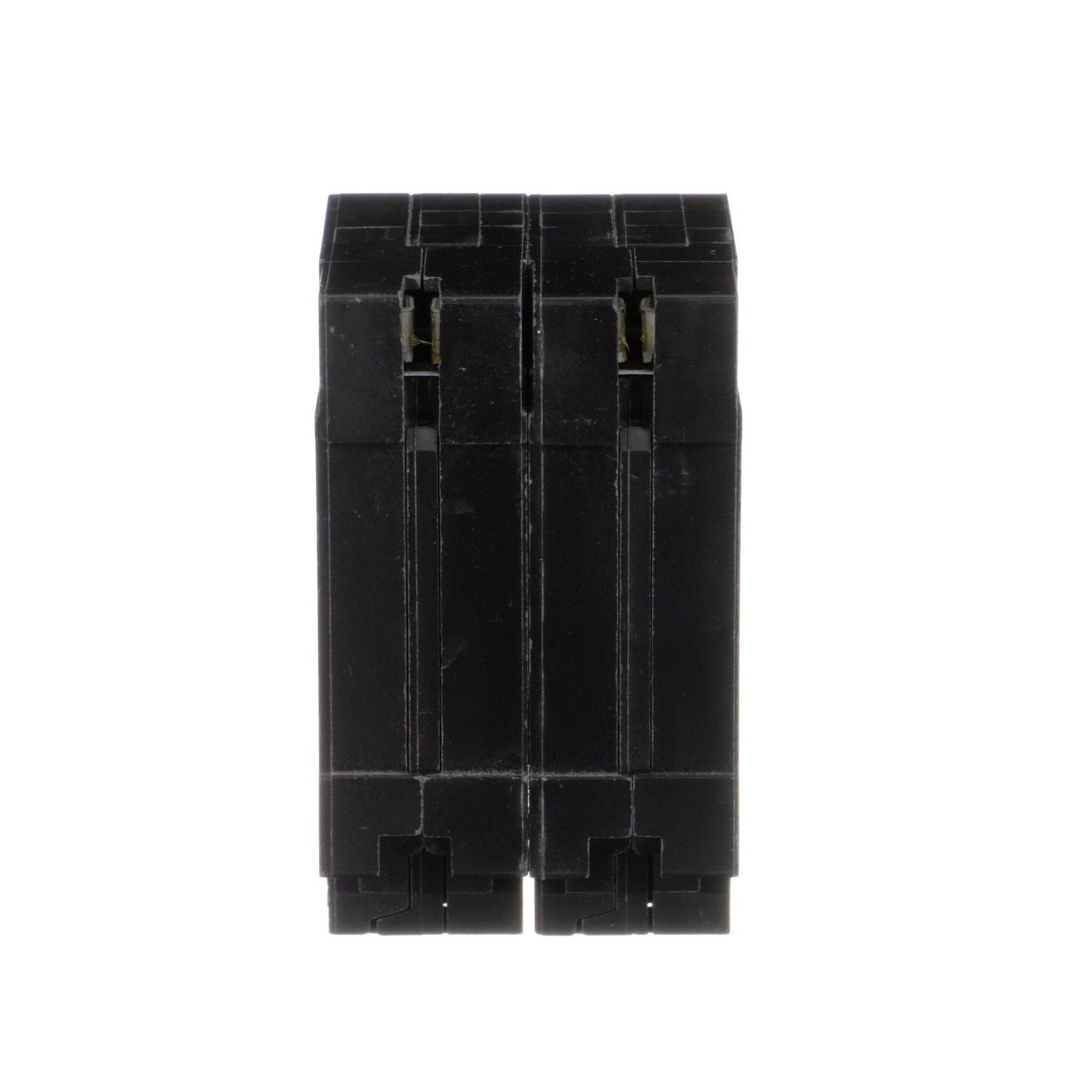

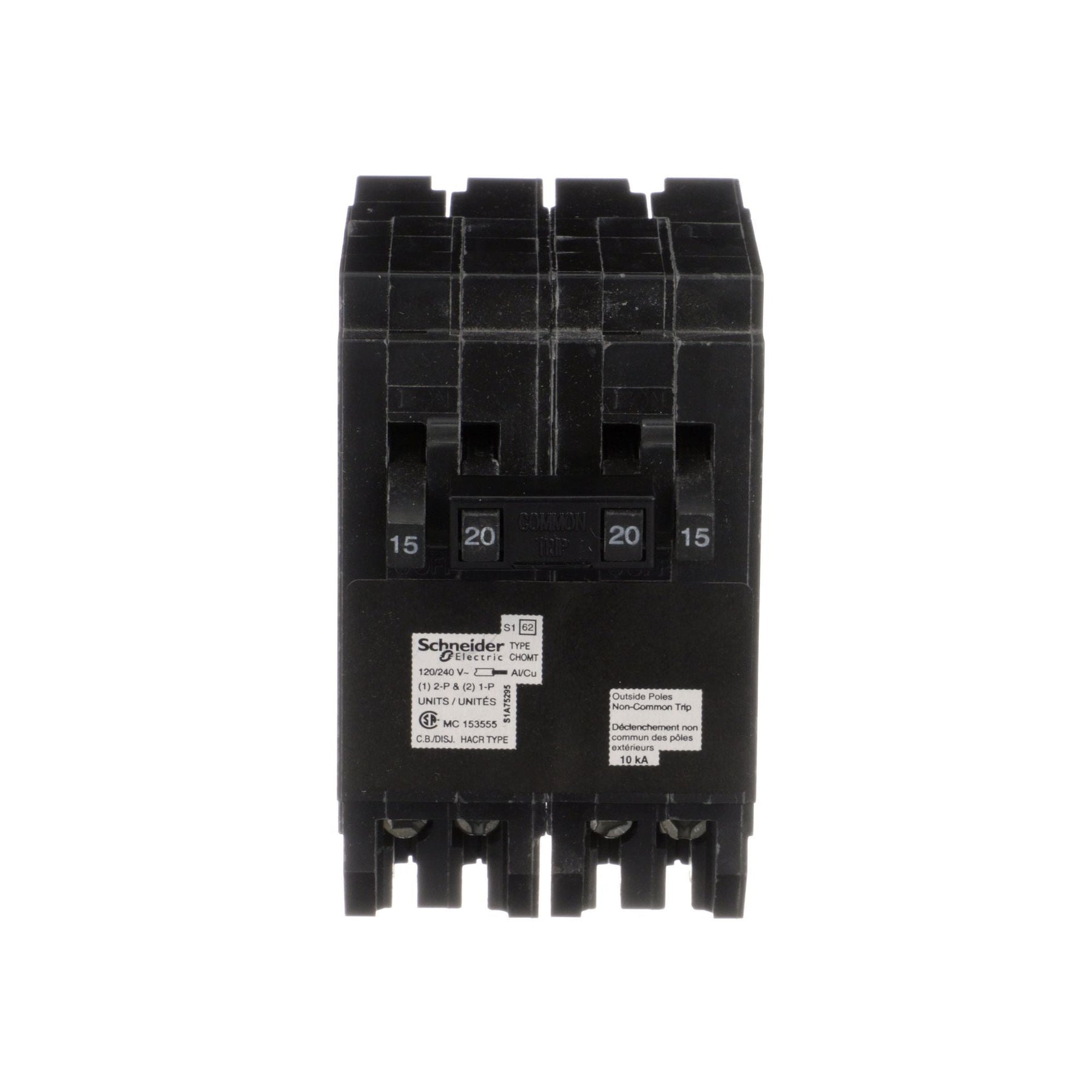

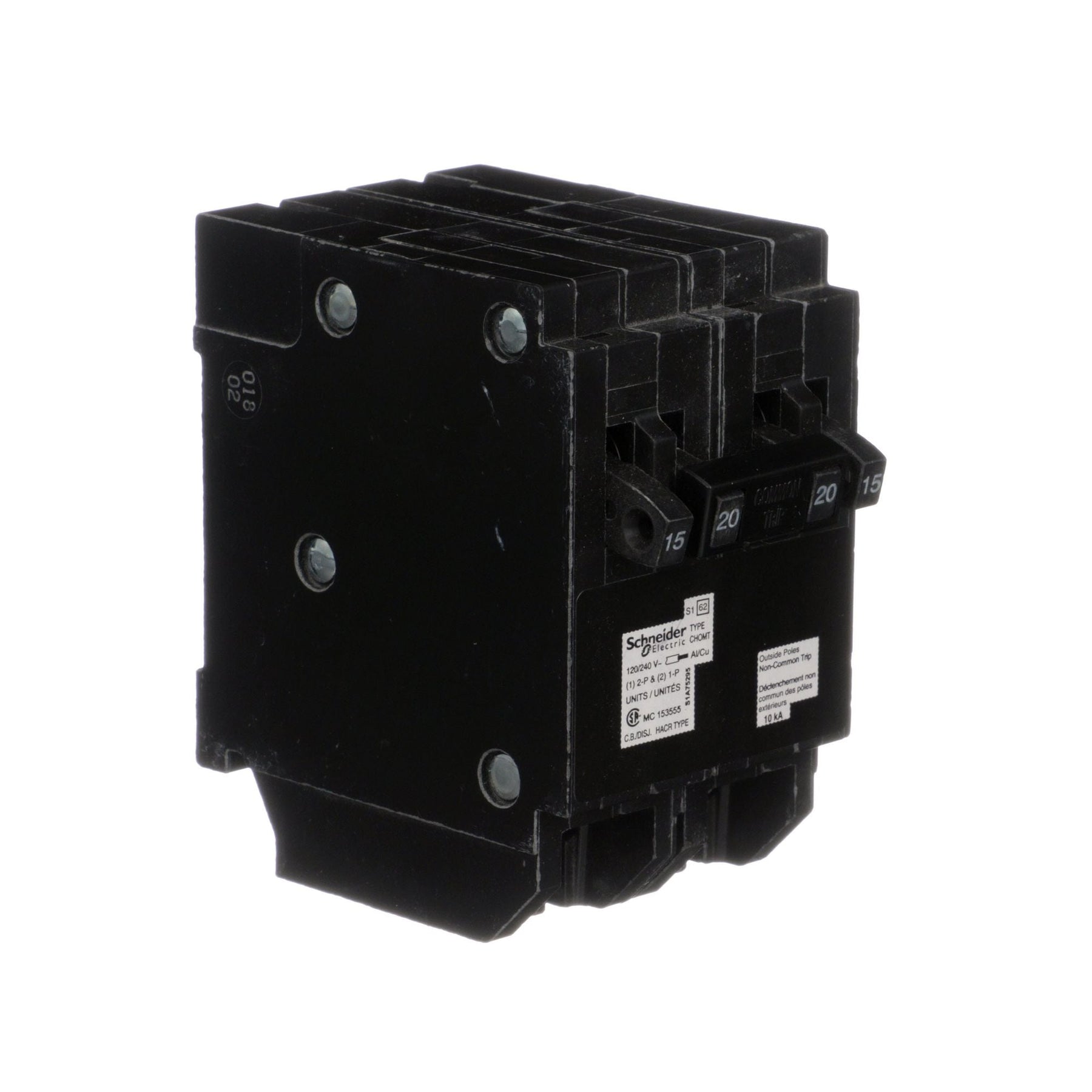

HOMT1515220 - Square D Homeline - Quad Circuit Breaker

Plug-In - 15 Amp - Quad - 240 Volt

Schneider Electric SKU: HOMT1515220
CHOMT1515220 - HomeLine 15 Amp 2 Pole 240 Volt Plug-In Circuit Breaker
HOMT1515220 - Square D Homeline - Quad Circuit Breaker
HOMT1515220 - Square D Homeline - Quad Circuit Breaker
HOMT1515220 - Square D Homeline - Quad Circuit Breaker

Images are for reference only

HOMT1515220 - Square D Homeline - Quad Circuit Breaker

Plug-In - 15 Amp - Quad - 240 Volt

Schneider Electric SKU: HOMT1515220
Regular price $63.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HOMT1515220 - Square D Homeline Quad Circuit Breaker

  • Category:

  • Connection:

    Plug-In
  • Type:

    HOMT
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    3.13 x 2 x 3
  • Weight:

    0.85 lbs

Standards

CSA Approved logo

Product Description - HOMT1515220 - Square D Homeline Quad Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 20A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
