Overview
Product Specifications - HOMT2020220 - Square D Homeline Quad Circuit Breaker
-
Part Number:
HOMT2020220 -
Manufacturer:
Schneider Electric / Homeline -
Family:
Homeline -
Pole:
4 -
Amp
20 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOMT -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V

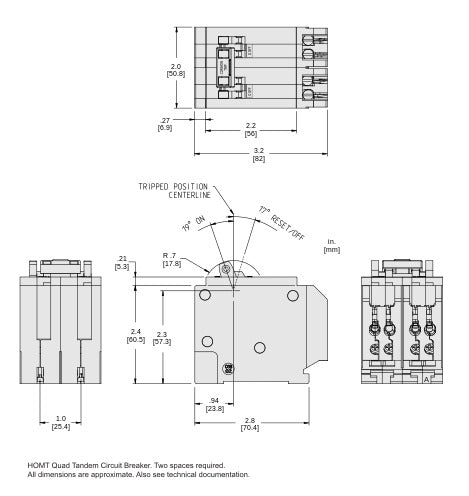

Dimensions
-
Dimensions (HxWxD):
3.13 x 2 x 2.98 -
Weight:
1.1 lbs
Standards
Product Description - HOMT2020220 - Square D Homeline Quad Circuit Breaker

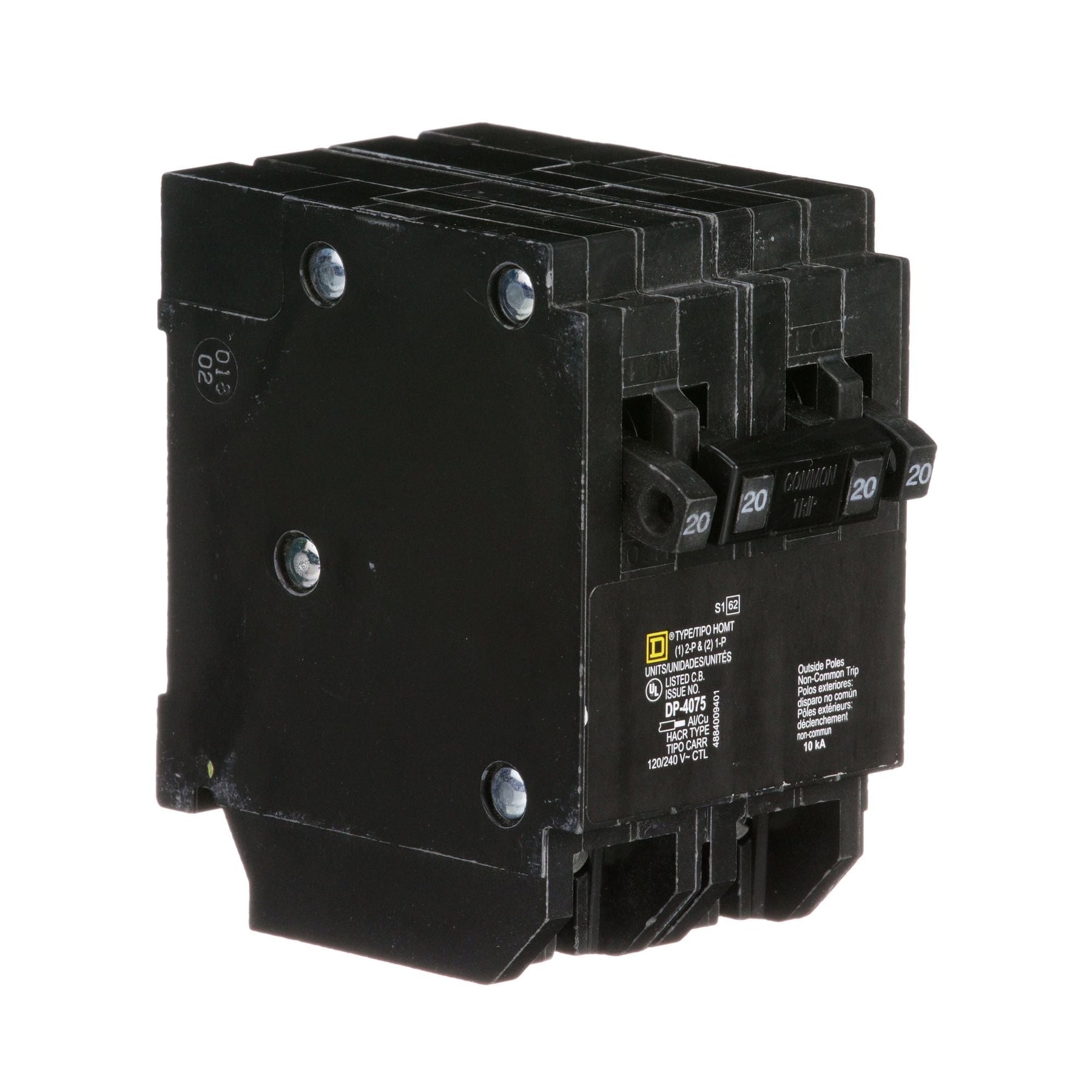

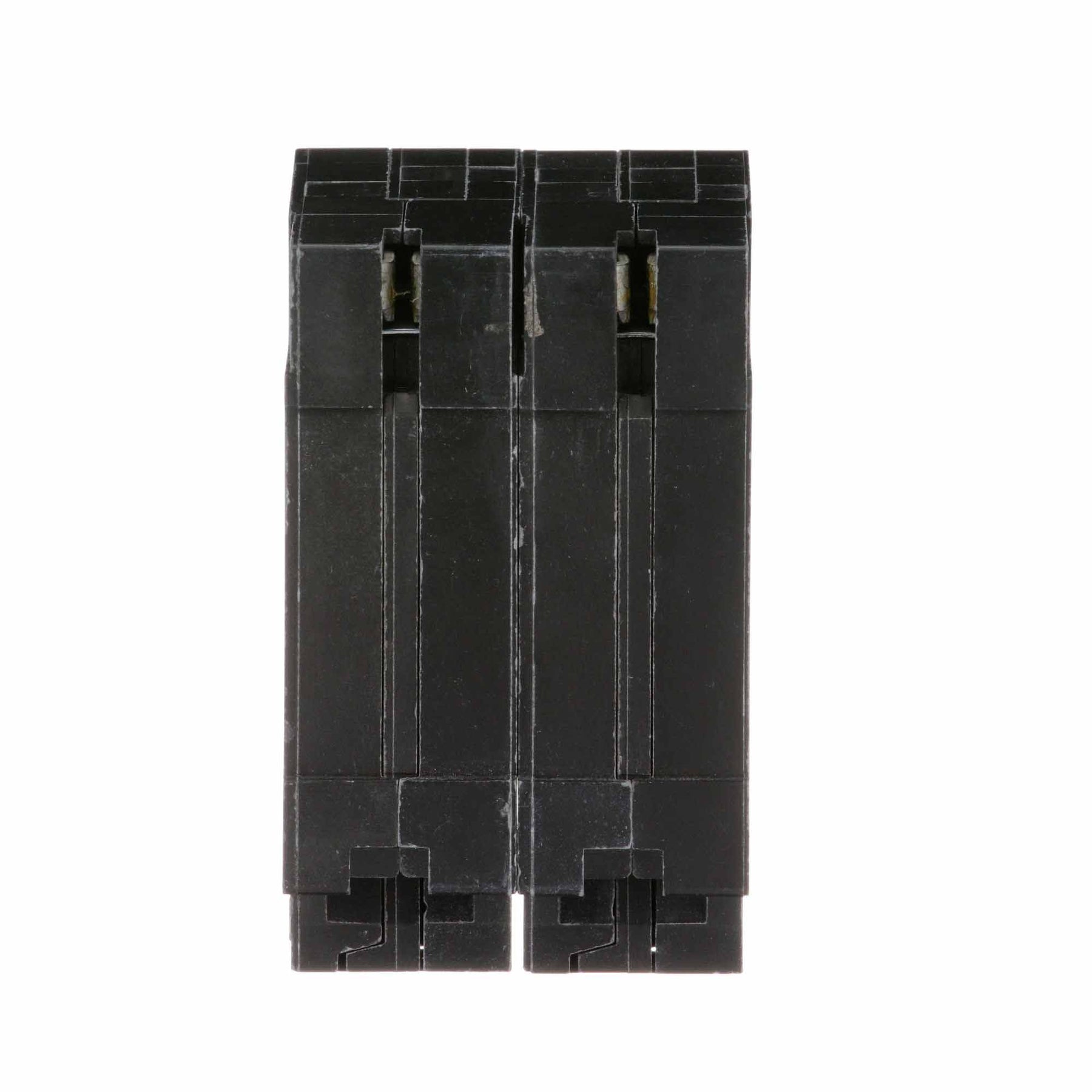

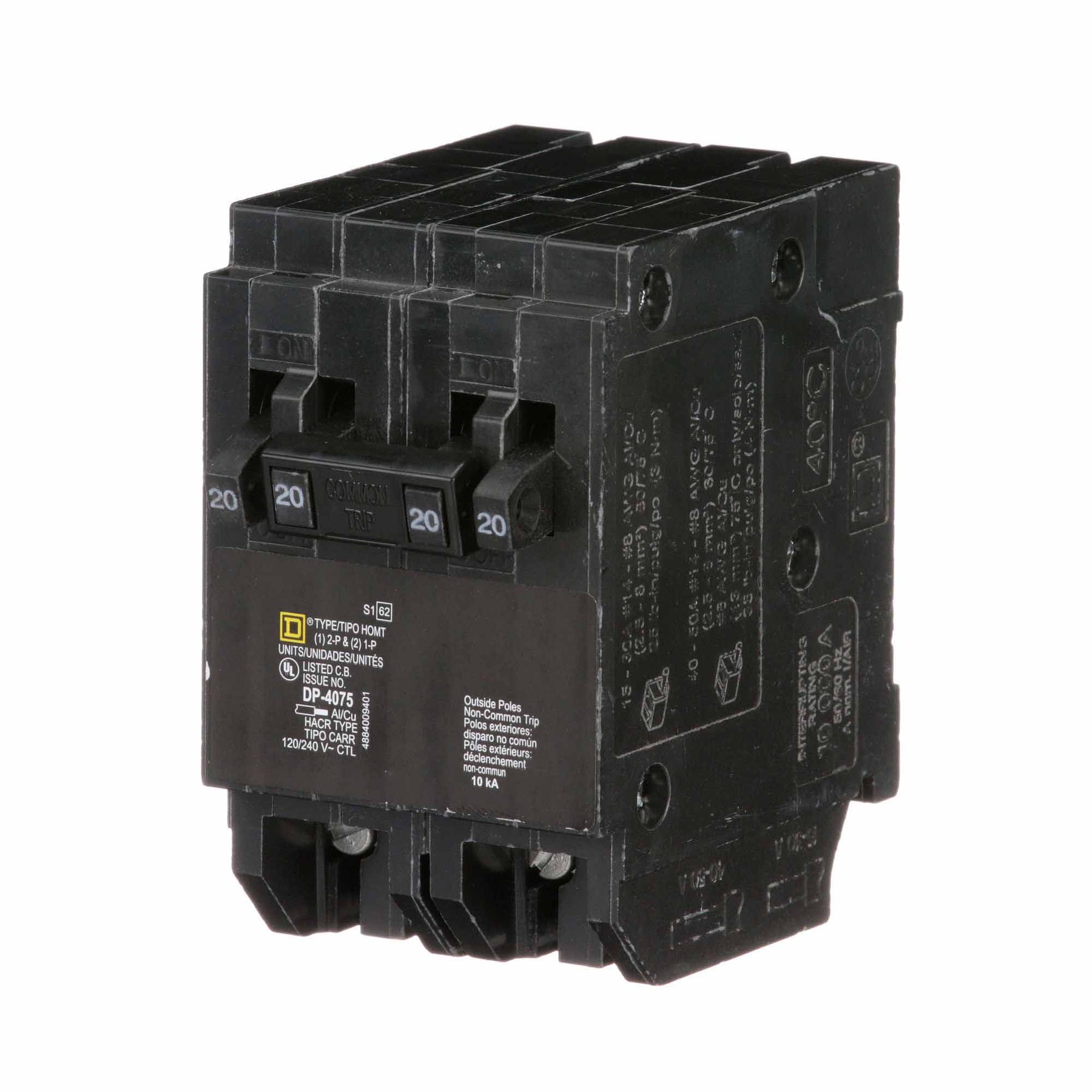

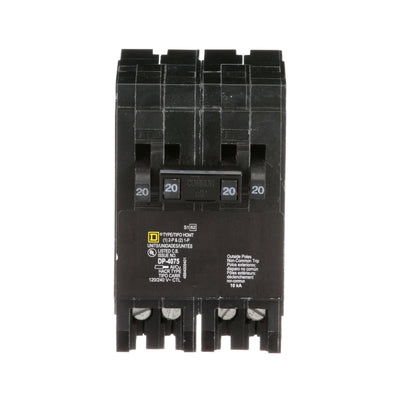

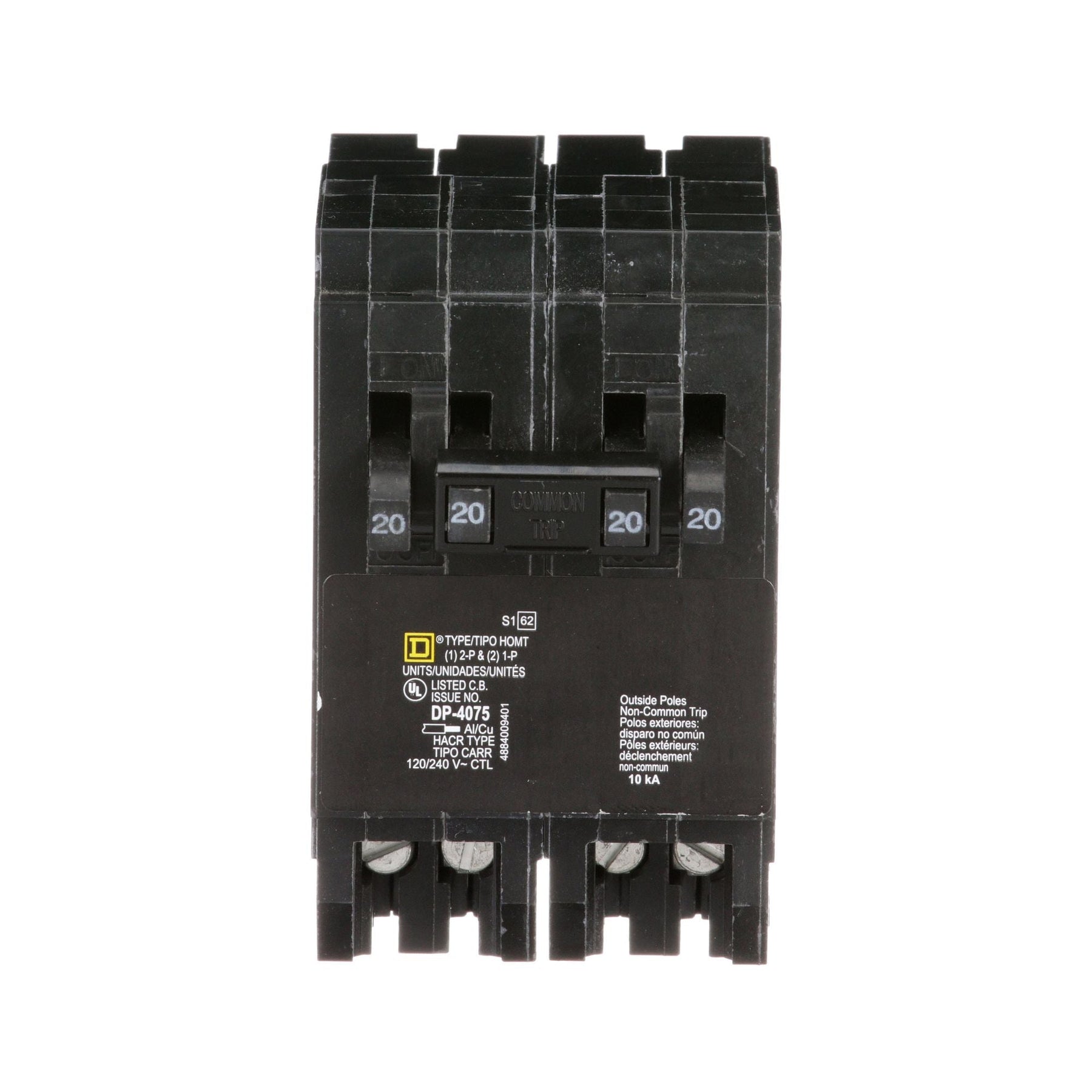

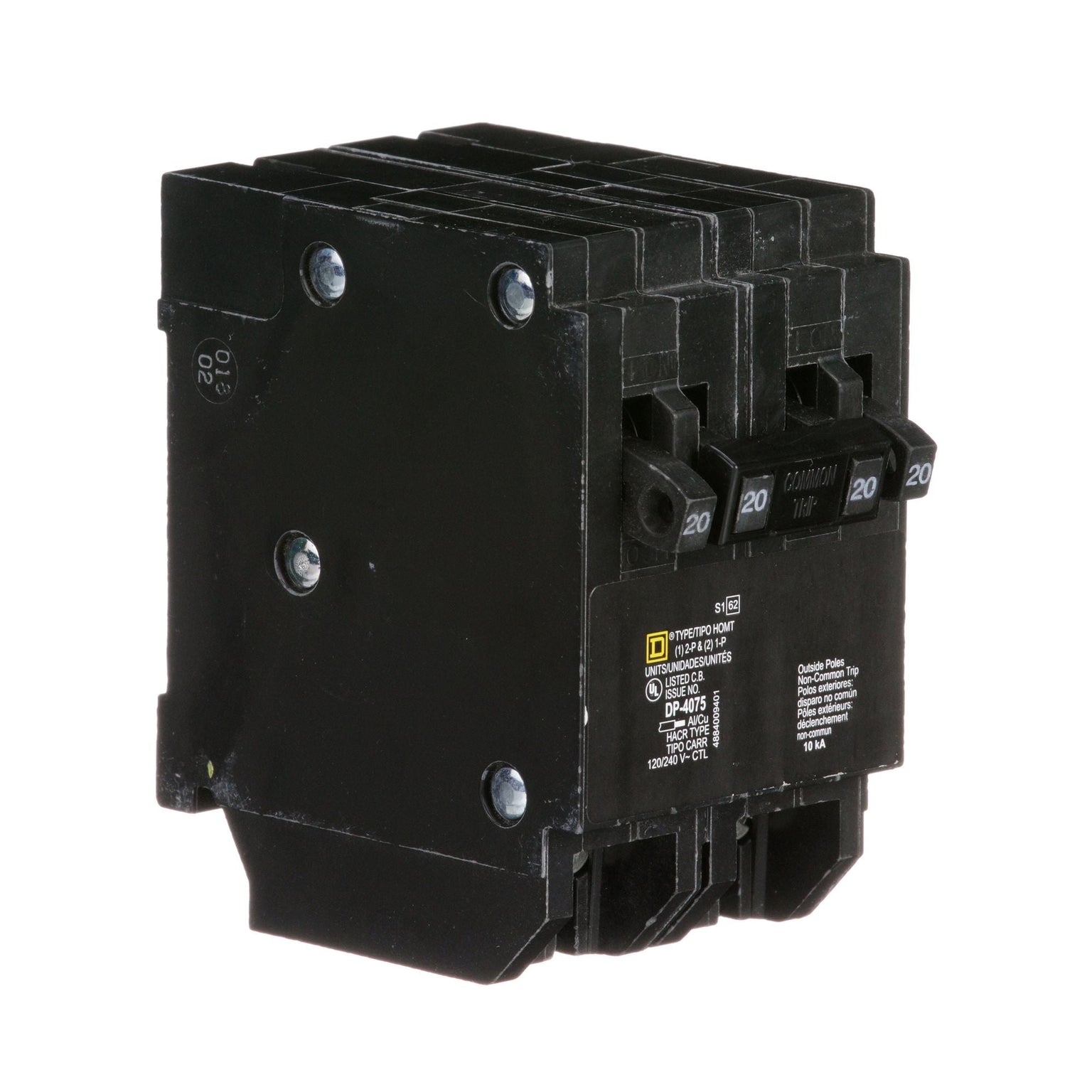

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 20A at 120/240 VAC and the single pole breakers are rated 20A and 20A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
