Overview
Product Specifications - BDA36030 - Square D Molded Case Circuit Breakers
-
Part Number:
BDA36030 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
30 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
BDA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V

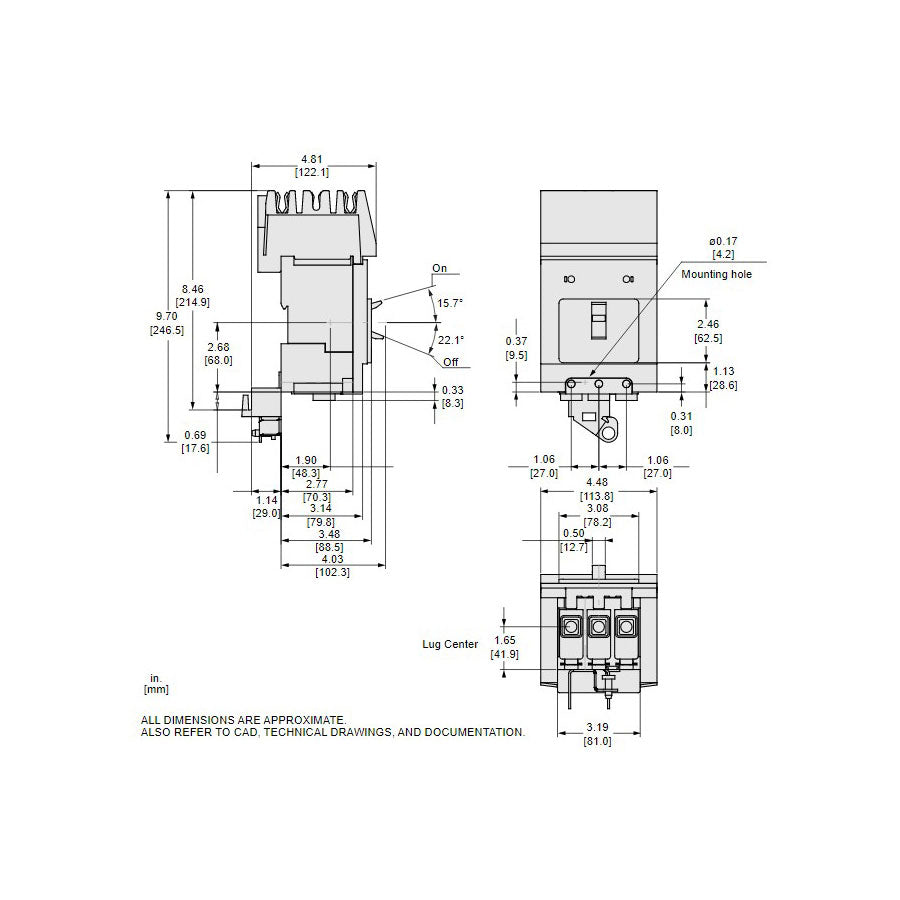

Dimensions
-
Dimensions (HxWxD):
5.39" x 3.19" x 3.50"
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
30 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code
D -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper
-
Weight:
2.90 lbs
Standards

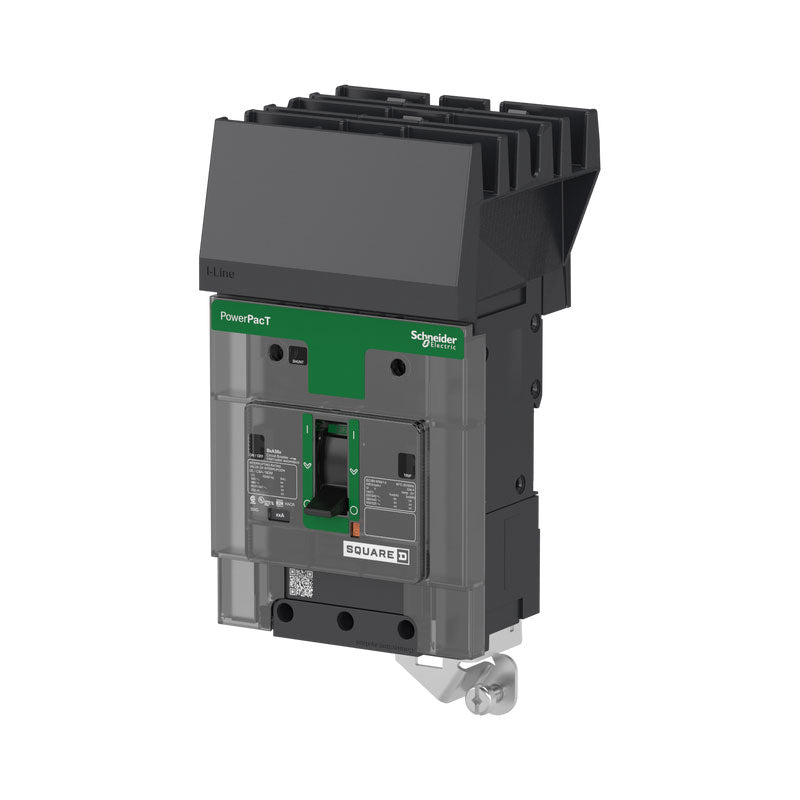

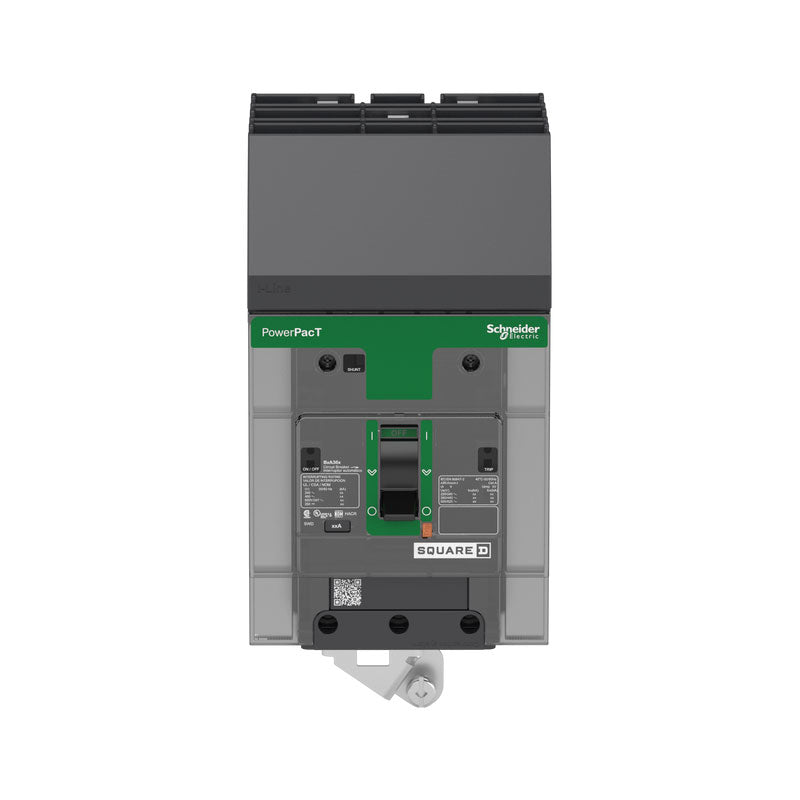

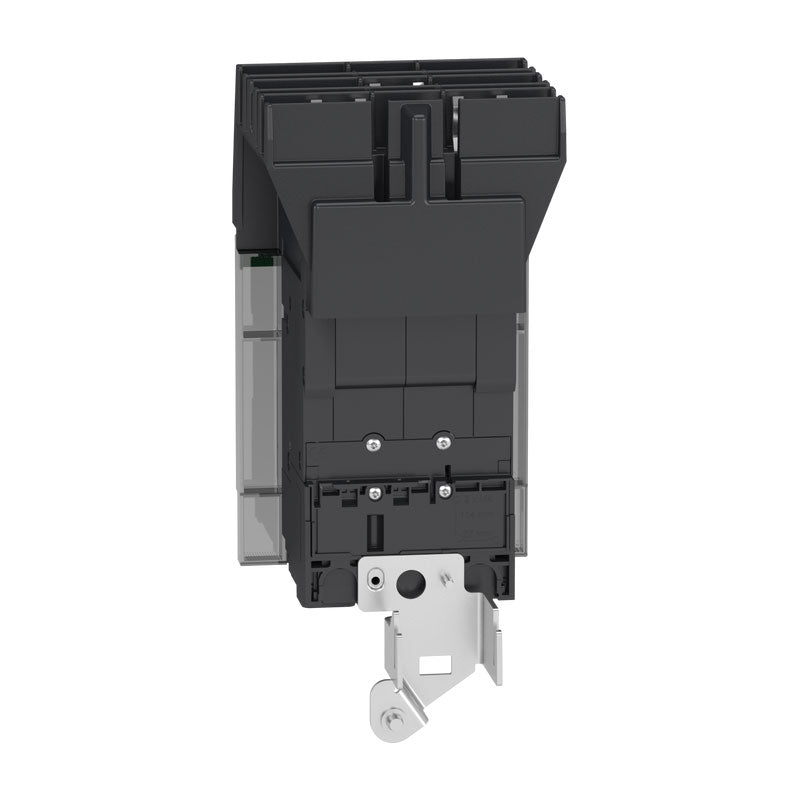

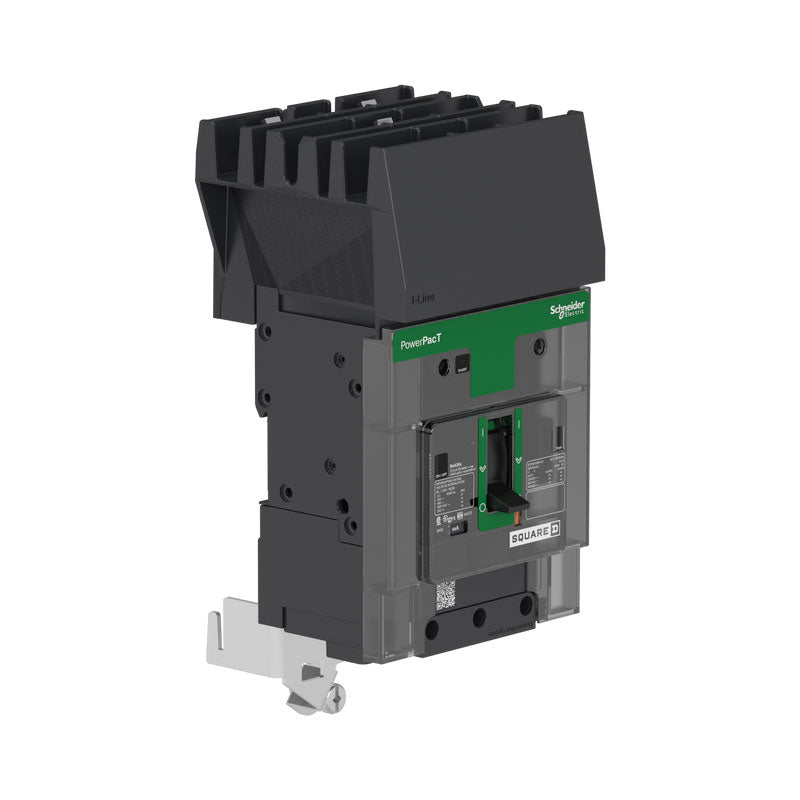

Product Description - BDA36030 - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 30A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers
