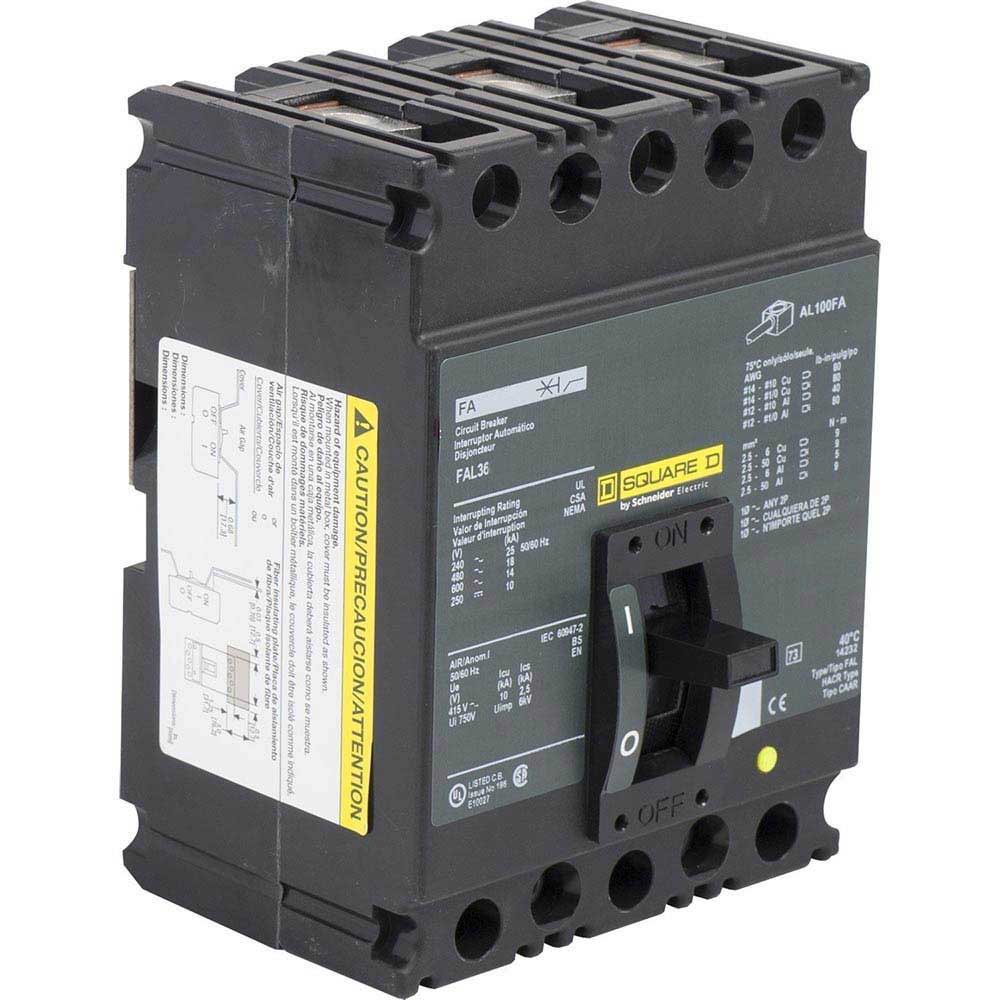

FAL36050 - Square D - Molded Case Circuit Breaker
Feed-Thru - 50 Amp - 3 Pole - 600 Volt
Schneider Electric
SKU: FAL36050
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - FAL36050 - Square D Powerpact Circuit Breaker
-
Part Number:
FAL36050 -
Manufacturer:
-
Family:
FAL Series -
Pole:
3 -
Amp
50 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
FAL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
6" x 4.5" x 4.13"
Â
Standards
Additional Details
-
Frame Type:
F-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
50 A -
Mounting Mode:
Unit Mount
-
Breaking Capacity Code
A -
Electrical Connection:
Lugs load / Lugs Line -
Magnetic Hold Current:
400 A
Product Description - FAL36050 - Square D Powerpact Circuit Breaker
Square D, FAL Series, type FAL, 3P, 3PH, 50A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
