HGA261001 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 100 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: HGA261001

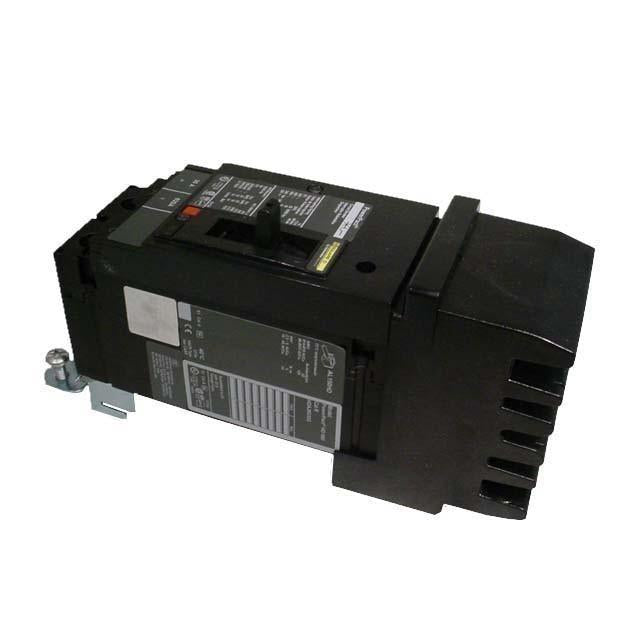

HGA261001 - Square D 100 Amp 2 Pole 600 Volt Plug-In Molded Case Circuit Breaker

Images are for reference only

HGA261001 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 100 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: HGA261001
Save $701.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HGA261001 - Square D Molded Case Circuit Breakers

  • Part Number:

    HGA261001

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    2

  • Amp

    100

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HGA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73" x 2.94" x 4.8"

  • Weight:

    4.85 lbs

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    100 Amp

  • Magnetic Hold Current:

    900 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Standards

CSA Approved logo

Product Description - HGA261001 - Square D Molded Case Circuit Breakers

Square D, Powerpact, type HGA, 2P, A & B phase connection, 1PH, 100A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rob
Great purchase experience, shipping and support!

Needed a pretty rare breaker and found it here. Ordered on line and got the item in two days. Follow up - the breaker failed after 6 months, so I bought a second one. Then I reported the problem so the manufacturer; they said call the seller. Now note that at this point, I have purchased two breakers as I needed the replacement and didn't want to screw around with warranty claims, etc. Breaker showed up at my house, and I reported the failure to Simply Breakers. I HAD A REFUND WITHIN AN HOUR for the second breaker I had purchased. Recognize that they were within their rights to just replace the breaker (so I would have had 2 of them). You never know who you will be dealing with in an online purchase, but these guys rock!

L
LP
Five Stars

Fit perfectly and does its job.

M
MROJERRY
Five Stars

Arrived as described and no issues with installation or performance.
