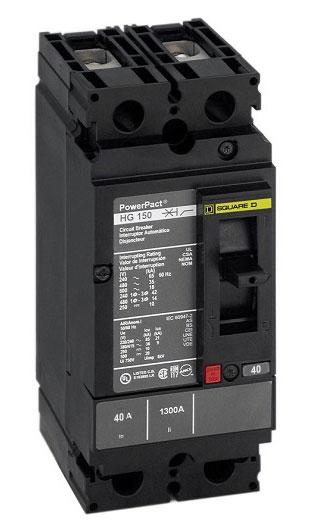

HGL26040 - Square D - Molded Case Circuit Breaker
Feed Thru - 40 Amp - 2 Pole - 600 Volt
Schneider Electric
SKU: HGL26040
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - HGL26040 - Square D Powerpact Circuit Breaker
-
Part Number:
HGL26040 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
40 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
HGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
6.4" x 2.74" x 4.36"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
40 A -
Mounting Mode:
Unit Mount Lug
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
400 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HGL26040 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HGL, 2P, 1PH, 40A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip.
