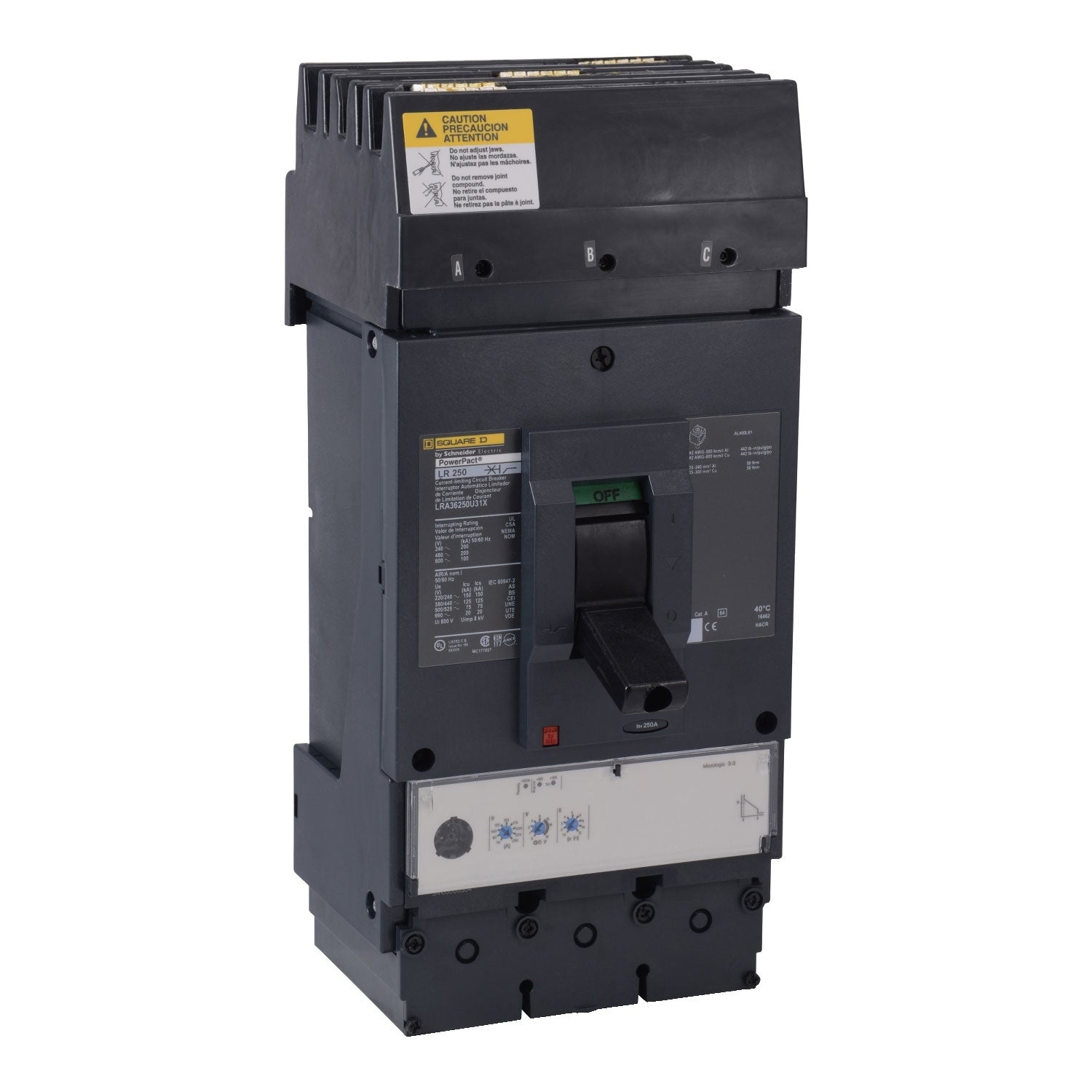

LRA36400U31X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 400 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: lra36400u31x
LRA36400U31X - Square D - Molded Case Circuit Breaker
LRA36400U31X - Square D - Molded Case Circuit Breaker

Images are for reference only

LRA36400U31X - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 400 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: lra36400u31x
Regular price $11,745.00 Sale price $8,199.99 Save $3,545.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - LRA36400U31X - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    LRA
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Solid State
  • AIC Ratings:

    200kA@480V

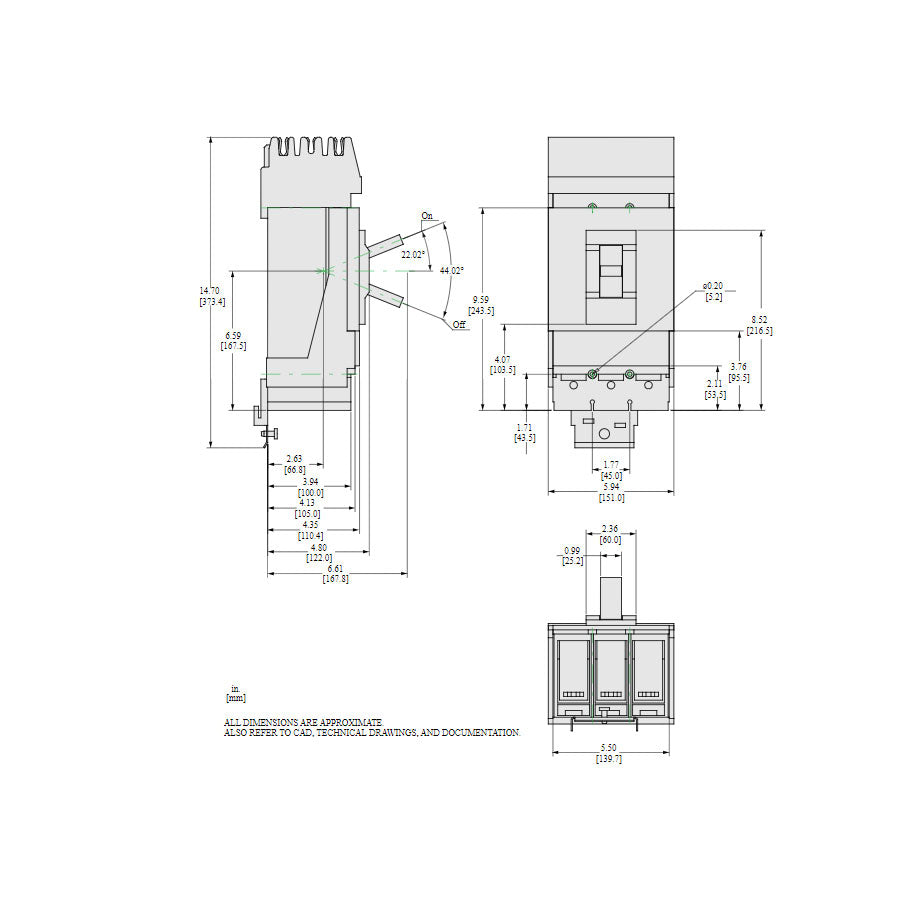

Dimensions

  • Dimensions (HxWxD):

    14.7" x 5.94" x 6.61"
  • Weight:

    13.67 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    L-Frame
  • Trip Unit Technology:

    Electronic, standard, Micrologic 3.3 S, LSI
  • Line Rated Current:

    400 Amp
  • Mounting Mode:

    I-Line bracket
  • Breaking Capacity Code:

    R
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Continuous Current Rating:

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 3/0...500 kcmil aluminium/copper

Product Description - LRA36400U31X - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type LRA, 3P, 3PH, 400A, 600V, 200kA@480V, UL listed, i-line style plug-in, suitable for reverse connection, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers.
