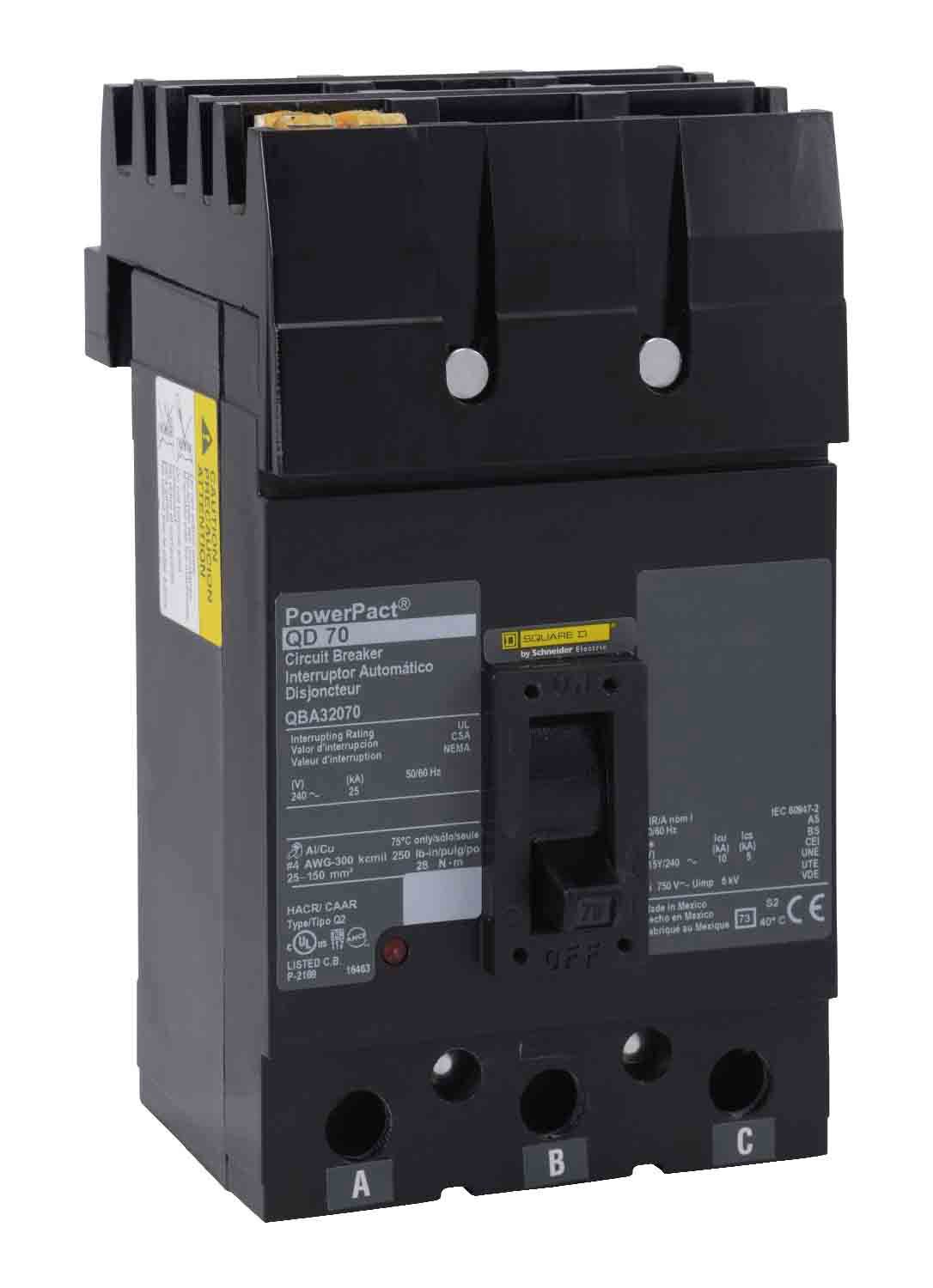

QBA32070 - Square D - Molded Case Circuit Breaker
I-Line Plug-In - 70 Amp - 3 Pole - 240 Volt
Schneider Electric
SKU: QBA32070
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - QBA32070 - Square D Molded Case Circuit Breakers
-
Part Number:
QBA32070 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp
70 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
QBA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 4.5" x 3.93"
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
70 Amp -
Magnetic Hold Current:
1000 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
B -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Operating Handle
Standards
Product Description - QBA32070 - Square D Molded Case Circuit Breakers
Square D, I-Line, type QBA, 3P, ABC phase connection, 3PH, 70A, 240V, 10kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals.
