Overview

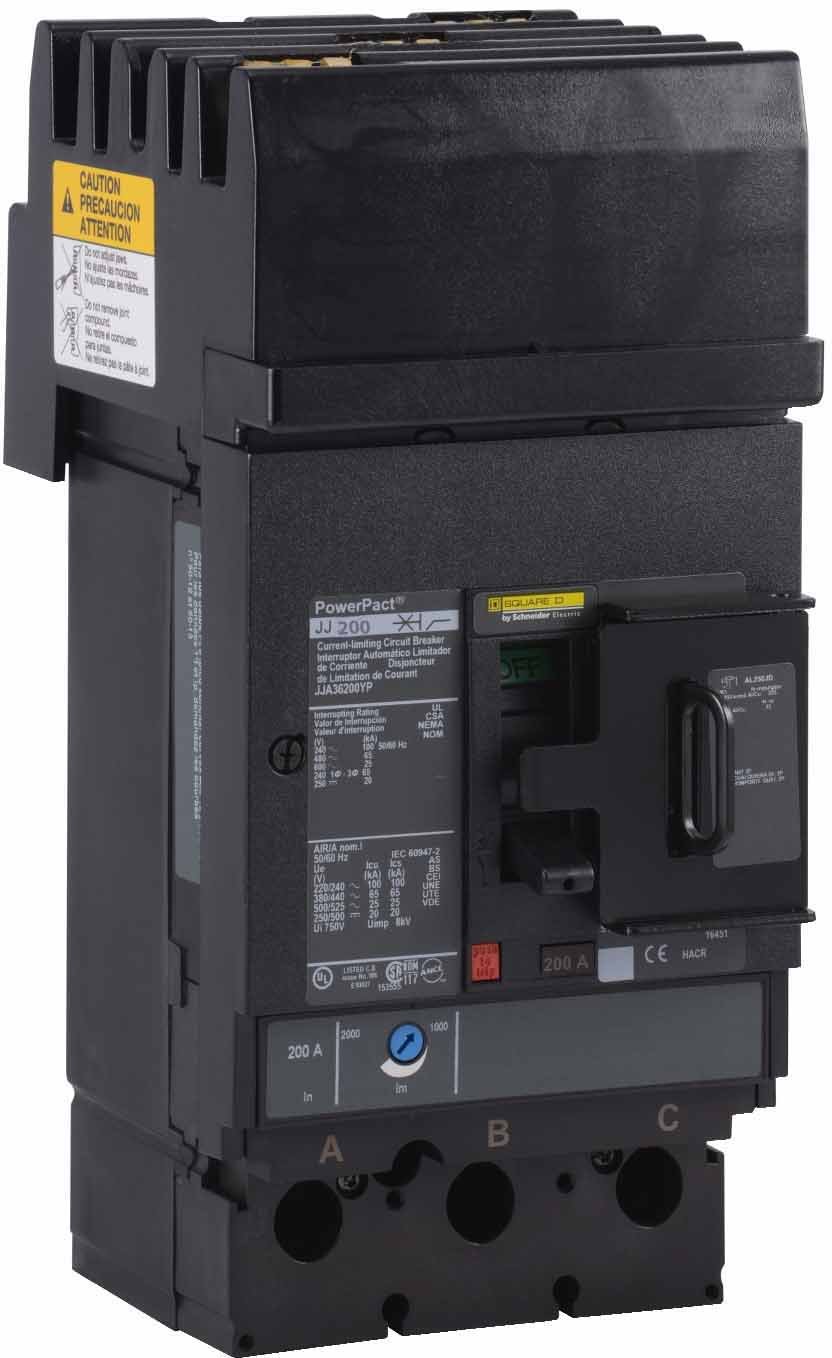

Product Specifications - JJA36200YP - Square D Molded Case Circuit Breakers
-
Part Number:
JJA36200YP -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
JJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V

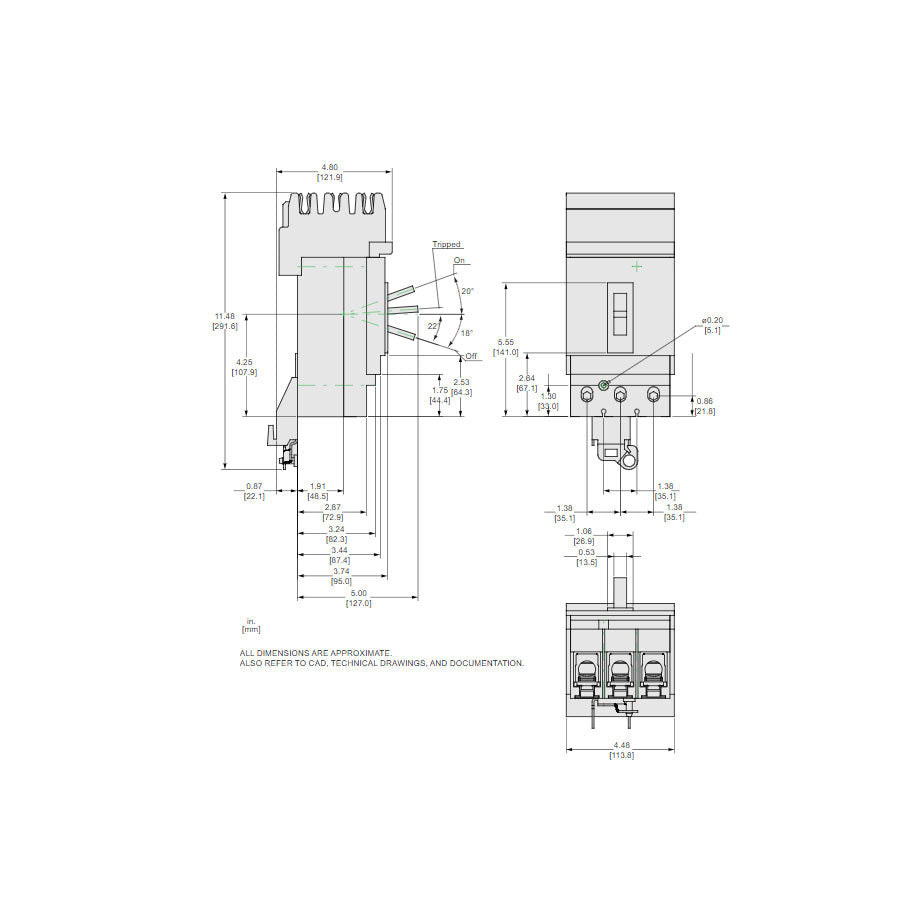

Dimensions
-
Dimensions (HxWxD):
5.48" x 5.48" x 5.48"
-
Weight:
5.29 lbs
Standards


Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
200 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Magnetic Hold Current:
1000 Amp -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJA36200YP - Square D Molded Case Circuit Breakers
Square D, 3P, ABC phase connection, 3PH, 200A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with fixed handle padlock device, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, Molded Case Circuit Breaker
