VC4GUN - Square D - Switch Disconnector

Square D SKU: VC4GUN
VC4GUN - Square D - Switch Disconnector

Images are for reference only

VC4GUN - Square D - Switch Disconnector

Square D SKU: VC4GUN
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - VC4GUN - Square D Switch Disconnector

Dimensions

  • Dimensions (HxWxD):

    7.60 x 6.46 x 5.20

  • Weight:

    2.05 lbs

Standards

CSA Approved logo

Product Description - VC4GUN - Square D Switch Disconnector

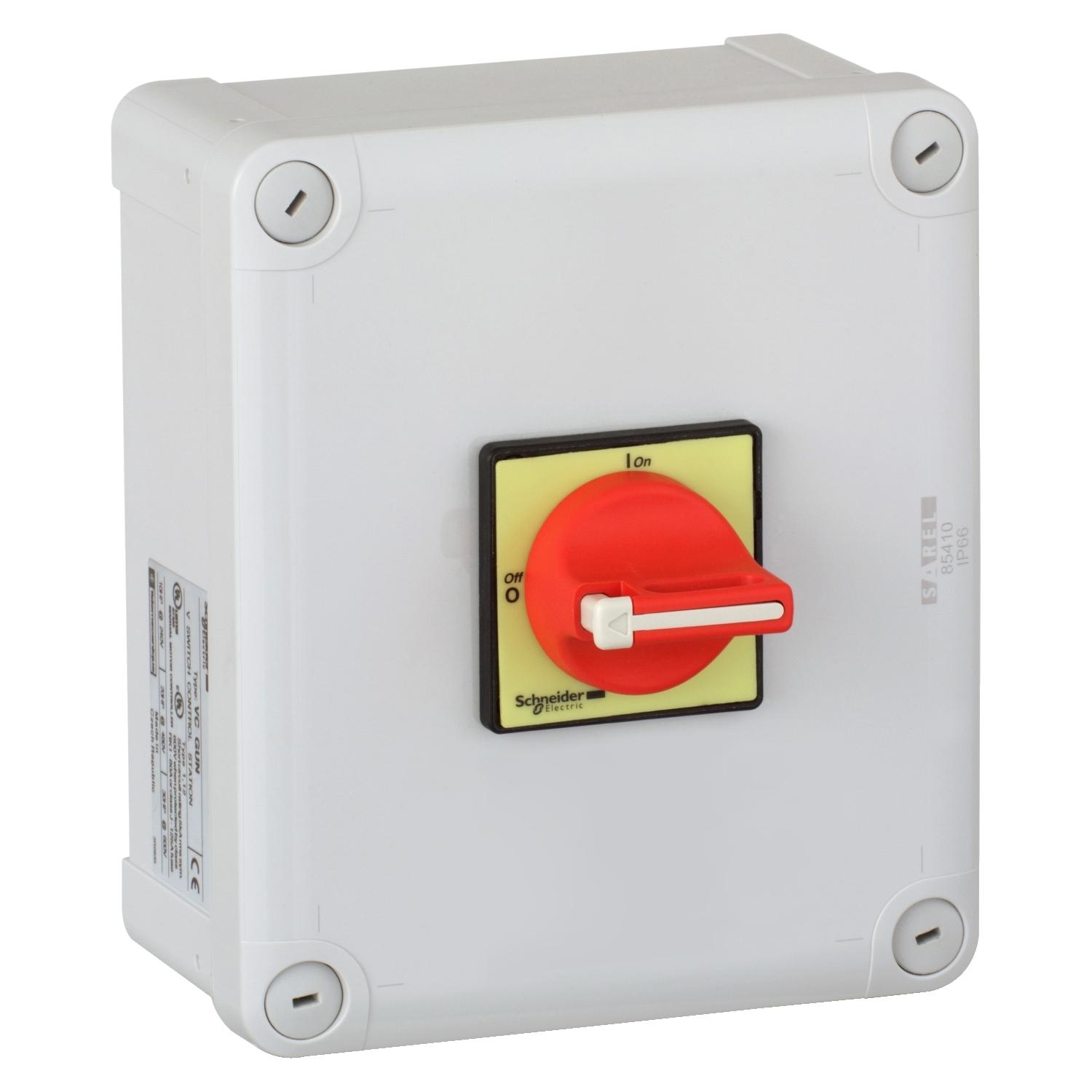

VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 40HP@600V. It provides an IP65 / NEMA type 12 enclosure, V4 Vario switch disconnector and red & yellow operator. VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 40HP@600V. It includes a V4 Vario switch disconnector rated 63A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V4 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
